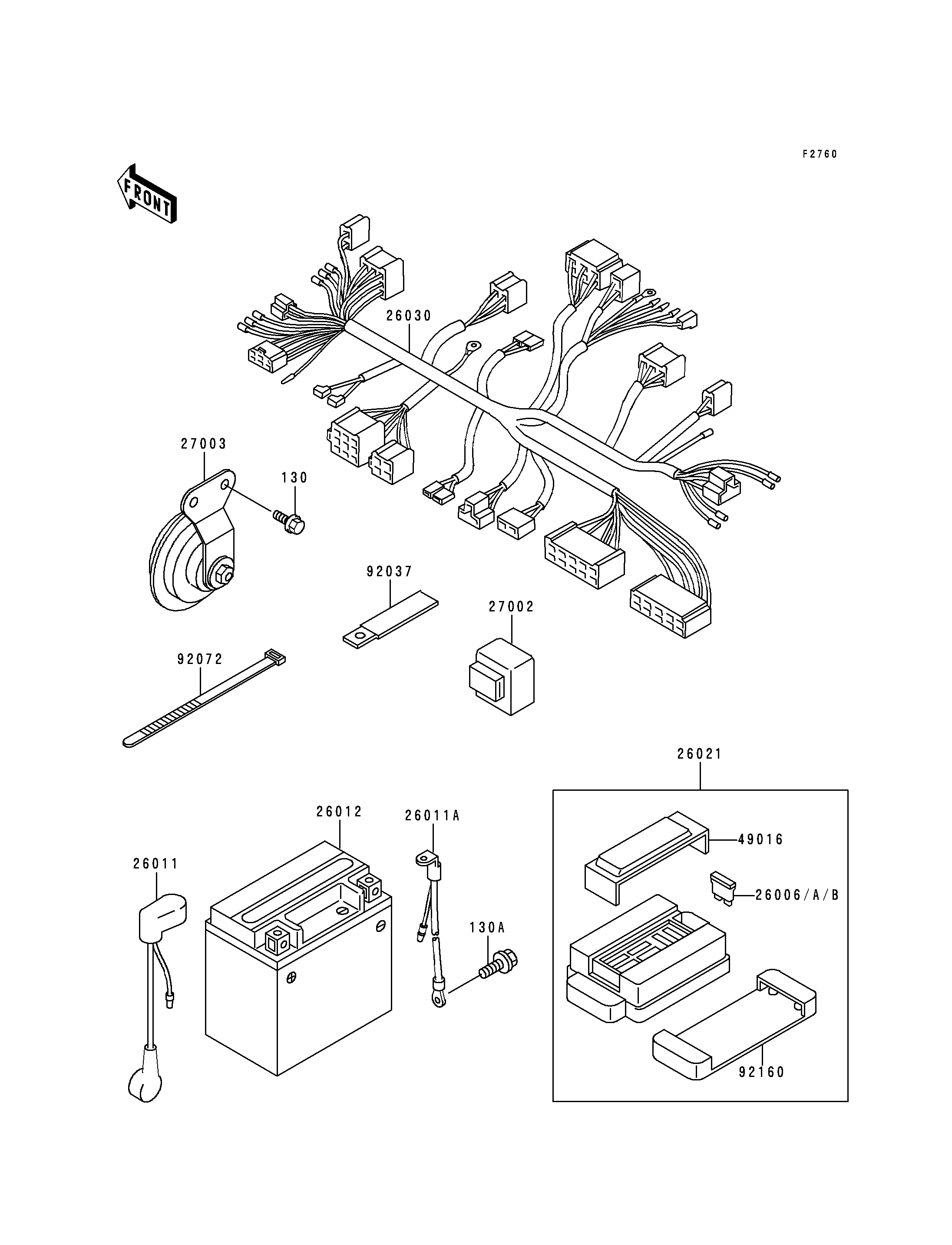

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130J0612 2
BOLT-FLANGED,6X10 130A 130V0610 1
FUSE,30A-G 26006 26006-1067 2
FUSE,10A-R 26006A 26006-1068 6
FUSE,15A-B 26006B 26006-1069 1
WIRE-LEAD,BATTERY(+) 26011 26011-1722 1
WIRE-LEAD,BATTERY(-) 26011A 26011-1723 1
BATTERY,YTX12-BS,12V 10AH 26012 26012-1330 1
JUNCTION BOX 26021 26021-1104 1
HARNESS,MAIN 26030 26030-1659 1
RELAY-ASSY,TURN SIGNAL 27002 27002-1101 1
HORN 27003 27003-1392 1
COVER-SEAL,FUSE 49016 49016-1180 1
CLAMP,WIRING HARNESS,L=60 92037 92037-1069 2
BAND,L=185 92072 92072-1195 6
DAMPER,JUNCTION BOX 92160 92160-1650 1
