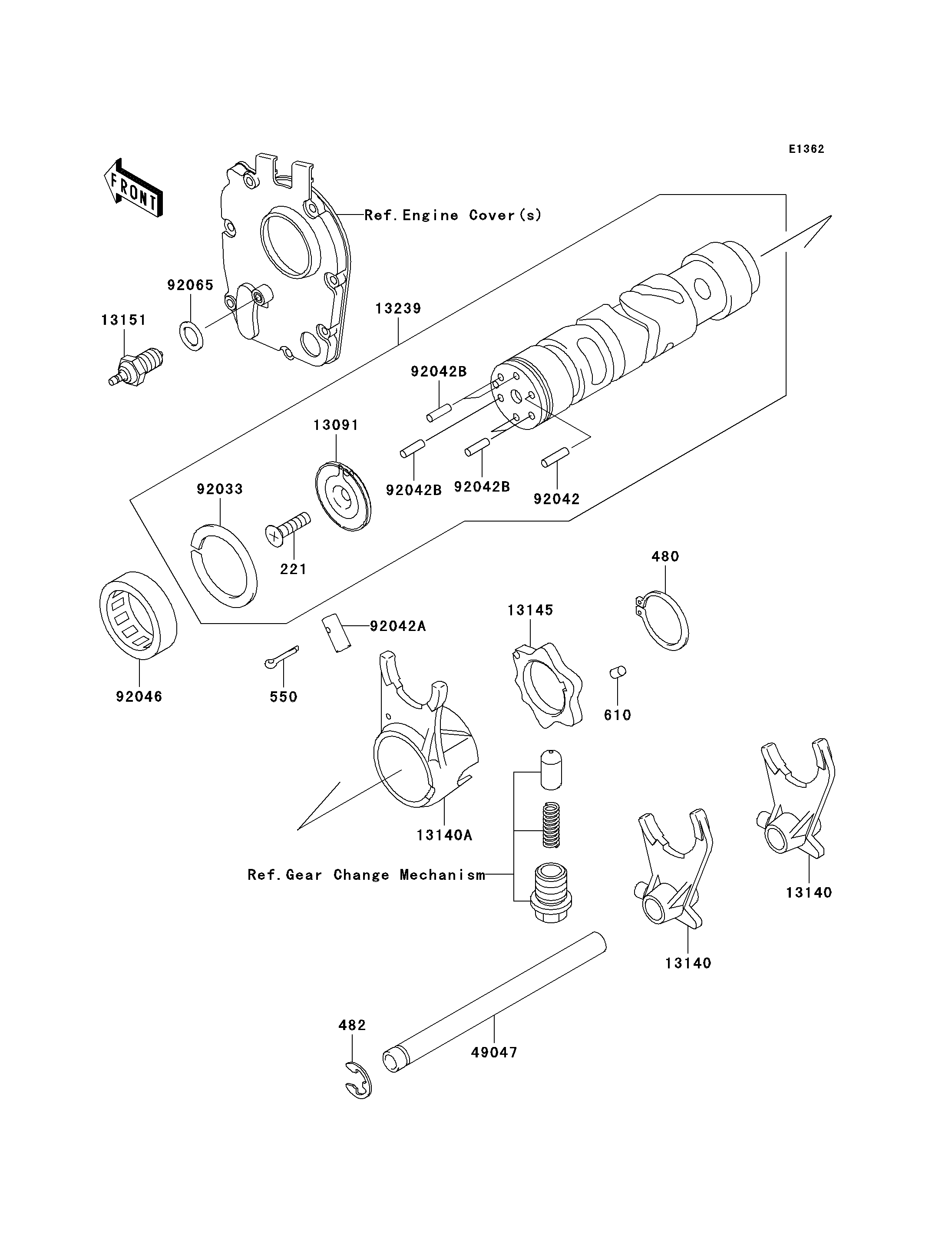

2005 ZR-7S (Canada Only) - Gear Change Drum/Shift Fork(s)

DOWNLOAD PDF
SELECT A NEW PART
221
480
482
550
610
13091
13140
13140
13140A
13145
13151
13239
49047
92033
92042
92042A
92042B
92042B
92042B
92046
92065
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-CSK-CROS,6X20 221 221B0620 1
CIRCLIP-TYPE-C,30MM 480 480J3000 1
CIRCLIP-TYPE-E,10MM 482 482J0100 1
PIN-COTTER,3.0X20 550 550D3020 1
ROLLER,4X6 610 610A0406 1
HOLDER,CHANGE DRUM PIN 13091 13091-1104 1
FORK-SHIFT,LOW,2ND&3RD 13140 13140-1008 2
FORK-SHIFT,4TH&TOP 13140A 13140-1009 1
CAM-CHANGE DRUM 13145 13145-1058 1
SWITCH-COMP,NEUTRAL 13151 13151-1080 1
DRUM-ASSY-CHANGE 13239 13239-1074 1
ROD-SHIFT 49047 49047-1069 1
RING-SNAP,37MM 92033 92033-035 1
PIN,DOWEL,4X15.8 92042 92042-014 1
PIN,DOWEL,8X18 92042A 92042-021 1
PIN,DOWEL,4X13.8 92042B 92042-030 5
BEARING-NEEDLE,37BTM4312 92046 92046-051 1
GASKET,10.5X16X1 92065 92065-058 1
