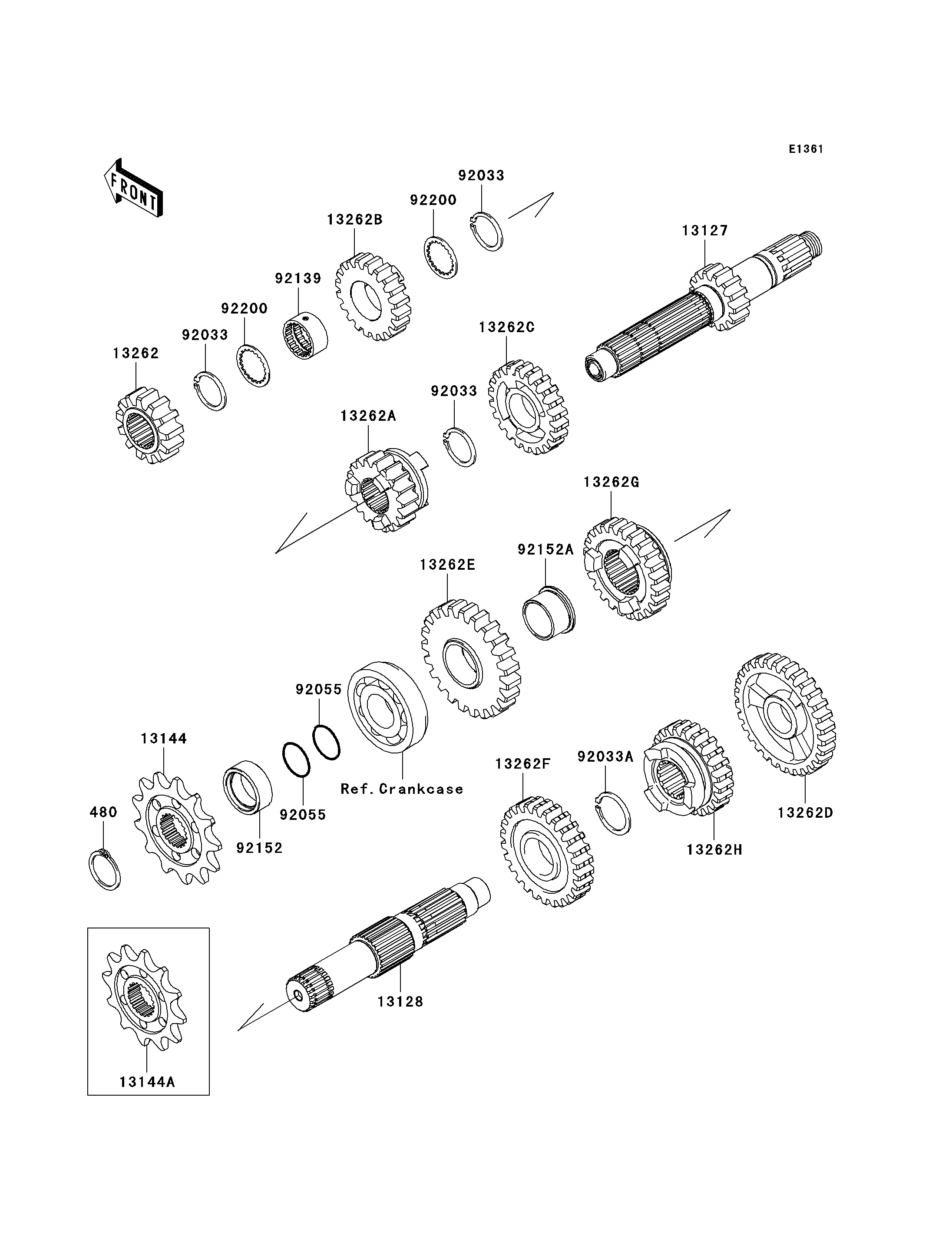

2009 KX™250F - Transmission

DOWNLOAD PDF
SELECT A NEW PART
480
13127
13128
13144
13144A
13262
13262A
13262B
13262C
13262D
13262E
13262F
13262G
13262H
92033
92033
92033
92033A
92055
92055
92139
92152
92152A
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP-TYPE-C,22MM 480 480J2200 1
SHAFT-TRANSMISSION INPUT,14T 13127 13127-0064 1
SHAFT-TRANSMISSION OUTPUT 13128 13128-0046 1
SPROCKET-OUTPUT,13T 13144 13144-0035 1
SPROCKET-OUTPUT,12T 13144A 13144-0036 1
GEAR,INPUT 2ND,13T 13262 13262-0668 1
GEAR,INPUT 3RD,18T 13262A 13262-0669 1
GEAR,INPUT 4TH,20T 13262B 13262-0670 1
GEAR,INPUT 5TH,22T 13262C 13262-0671 1
GEAR,OUTPUT LOW,30T 13262D 13262-0672 1
GEAR,OUTPUT 2ND,23T 13262E 13262-0673 1
GEAR,OUTPUT 3RD,26T 13262F 13262-0674 1
GEAR,OUTPUT 4TH,24T 13262G 13262-0675 1
GEAR,OUTPUT 5TH,23T 13262H 13262-0676 1
RING-SNAP 92033 92033-0057 3
RING-SNAP 92033A 92033-1270 1
RING-O,19.5X1.5 92055 92055-055 2
BUSHING 92139 92139-0241 1
COLLAR,22X30X11.4 92152 92152-0683 1
COLLAR 92152A 92152-0687 1
WASHER,22X26.6X1 92200 92200-0442 2
