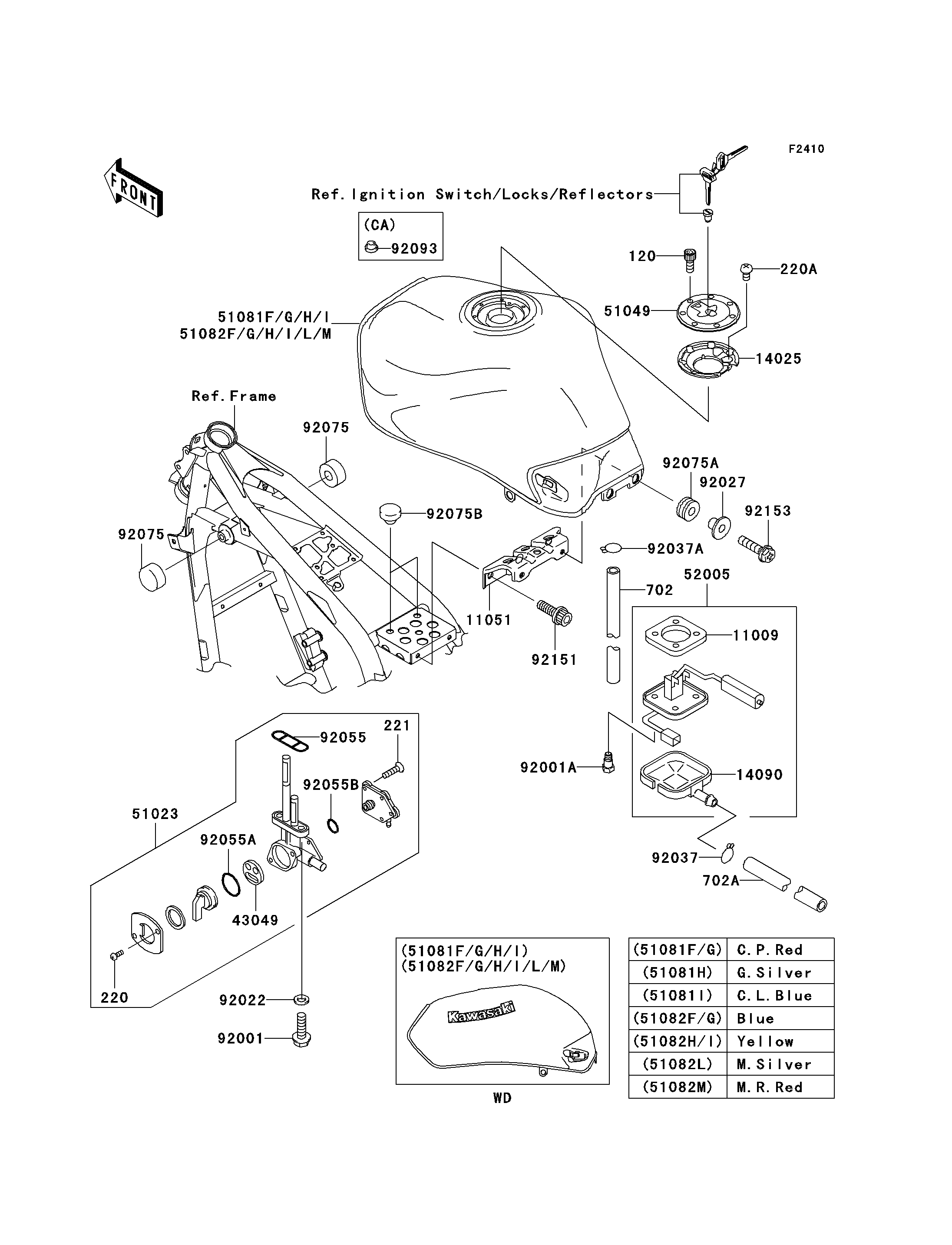

2005 ZR-7S (Canada Only) - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11009
11051
11051
11051
14025
14025
14025
14090
14090
14090
43049
43049
43049
51023
51023
51023
51049
51049
51049
51082L
51082L
51082L
51082M
51082M
51082M
52005
52005
52005
92001
92001
92001
92001A
92001A
92001A
92022
92022
92022
92027
92027
92027
92037
92037
92037
92037A
92037A
92037A
92055
92055
92055
92055A
92055A
92055A
92055B
92055B
92055B
92075
92075
92075
92075
92075
92075
92075A
92075A
92075A
120
120
120
220
220
220
220A
220A
220A
221
221
221
702
702
702
702A
702A
702A
92075B
92075B
92075B
92151
92151
92151
92153
92153
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FUEL GAUGE 11009 11009-1656 1
BRACKET,FUEL TANK 11051 11051-1477 1
COVER,TANK CAP 14025 14025-1913 1
COVER,FUEL GAUGE 14090 14090-1624 1
PACKING,TAP VALVE 43049 43049-1091 1
TAP-ASSY,FUEL 51023 51023-1268 1
CAP-TANK,FUEL 51049 51049-1130 1
TANK-COMP-FUEL,M.SILVER 51082L 51082-5482-473 1
TANK-COMP-FUEL,M.R.RED 51082M 51082-5483-468 1
GAUGE,FUEL 52005 52005-1130 1
BOLT,6X20 92001 92001-1091 2
BOLT,FUEL GAUGE 92001A 92001-1705 4
WASHER,6.2X11X1.5 92022 92022-183 2
COLLAR,L=13.1 92027 92027-251 2
CLAMP,TUBE 92037 92037-147 1
CLAMP 92037A 92037-1712 1
RING-O,FUEL TAP PACKING 92055 92055-1112 1
RING-O,TAP LEVER 92055A 92055-1419 1
RING-O 92055B 92055-1664 1
DAMPER,FUEL TANK 92075 92075-101 2
DAMPER 92075A 92075-1690 2
BOLT-SOCKET 120 120S0512 7
SCREW-PAN-CROS 220 220B0308 2
SCREW-PAN-CROSS 220A 220F0508 1
SCREW-CSK-CROS,4X14 221 221B0414 5
TUBE-RUBBER,7X10X550 702 702A07550 1
TUBE-RUBBER,7X10X800 702A 702A07800 1
DAMPER 92075B 92075-1737 2
BOLT,SOCKET,8X12 92151 92151-1592 2
BOLT,FLANGED,6X25 92153 92153-0514 2
