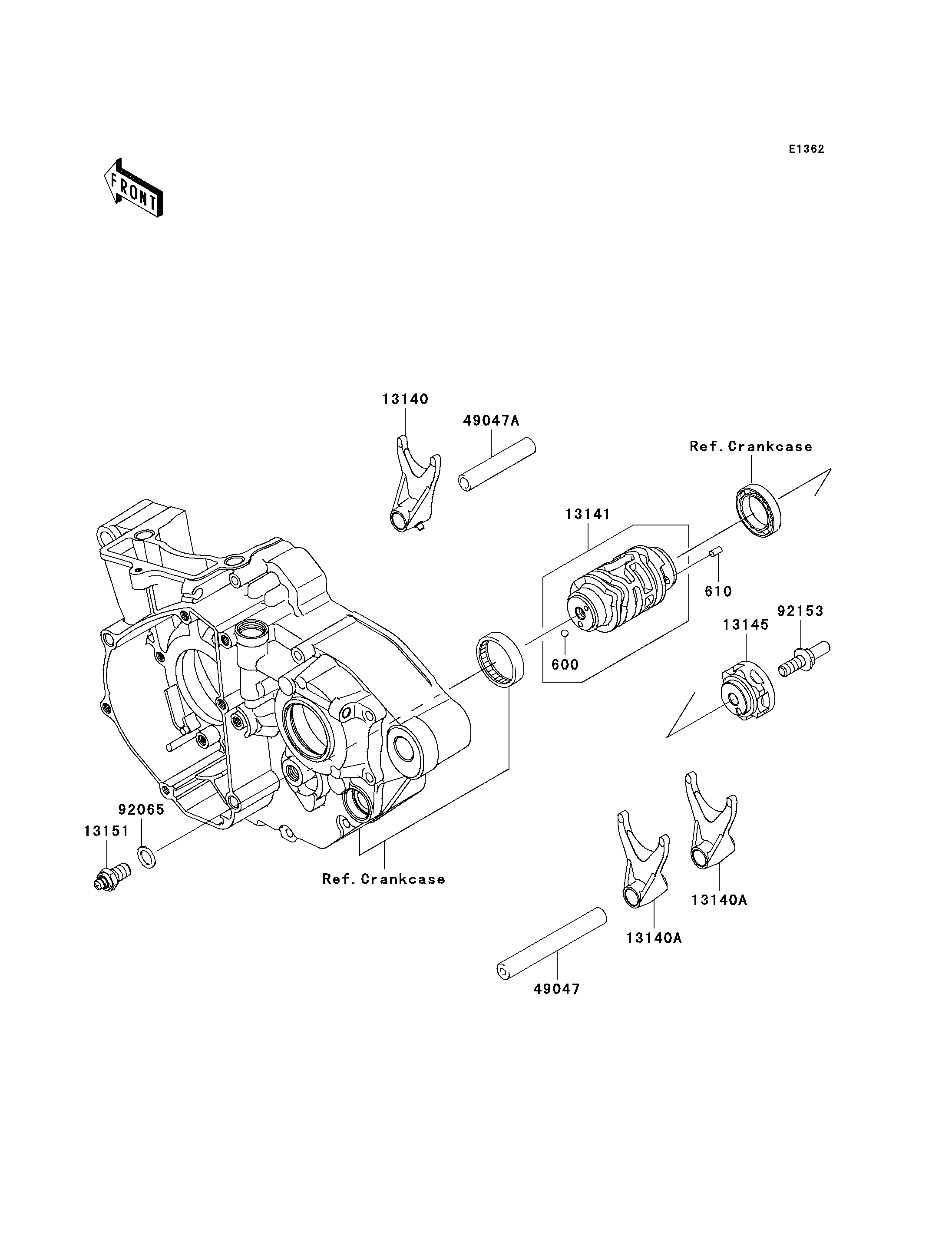

2009 KX250F - Gear Change Drum/Shift Fork(s)

600
610
13140
13140A
13140A
13141
13145
13151
49047
49047A
92065
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BALL-STEEL,7/32" 600 600A0700 1
ROLLER,4X8 610 610A0408 1
FORK-SHIFT,IN 13140 13140-0056 1
FORK-SHIFT,OUT 13140A 13140-0057 2
DRUM-CHANGE 13141 13141-0045 1
CAM-CHANGE DRUM 13145 13145-0031 1
SWITCH-COMP,NEUTRAL 13151 13151-0006 1
ROD-SHIFT,OUTPUT,L=94.5 49047 49047-0003 1
ROD-SHIFT,INPUT,L=63 49047A 49047-0004 1
GASKET,10.5X16X1 92065 92065-058 1
BOLT 92153 92153-1735 1
