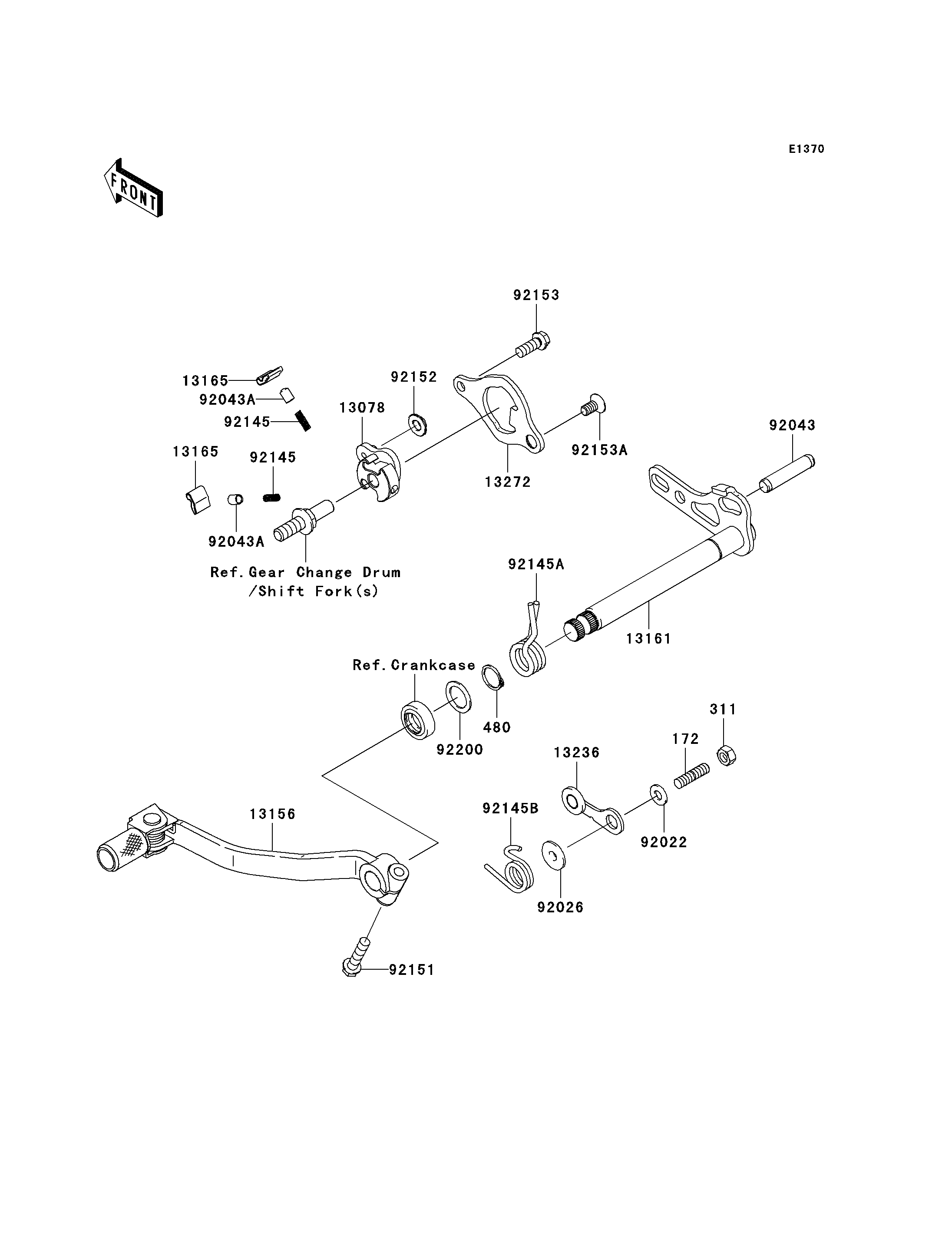

2009 KX™250F - Gear Change Mechanism

DOWNLOAD PDF
SELECT A NEW PART
172
311
480
13078
13156
13161
13165
13165
13236
13272
92022
92026
92043
92043A
92043A
92145
92145
92145A
92145B
92151
92152
92153
92153A
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-STUD,6X12 172 172BA0612 1
NUT-HEX 311 311BA0600 1
CIRCLIP-TYPE-C,14MM 480 480J1400 1
RATCHET 13078 13078-0019 1
LEVER-CHANGE,PEDAL 13156 13156-0124 1
LEVER-COMP-CHANGE SHAFT 13161 13161-0067 1
PAWL 13165 13165-0018 2
LEVER-COMP,POSITION 13236 13236-0161 1
PLATE 13272 13272-0438 1
WASHER,6X12.8X1.2 92022 92022-1827 1
SPACER 92026 92026-1217 1
PIN,8X39 92043 92043-0017 1
PIN,PLUNGER 92043A 92043-1676 2
SPRING 92145 92145-0453 2
SPRING,RETURN 92145A 92145-0608 1
SPRING,POSITION 92145B 92145-0609 1
BOLT,FLANGED-SMALL,6X25 92151 92151-1930 1
COLLAR 92152 92152-1414 1
BOLT,6X16 92153 92153-0825 1
BOLT,TORX,6X8.7 92153A 92153-1669 1
WASHER,14.2X20X1 92200 92200-0029 1
