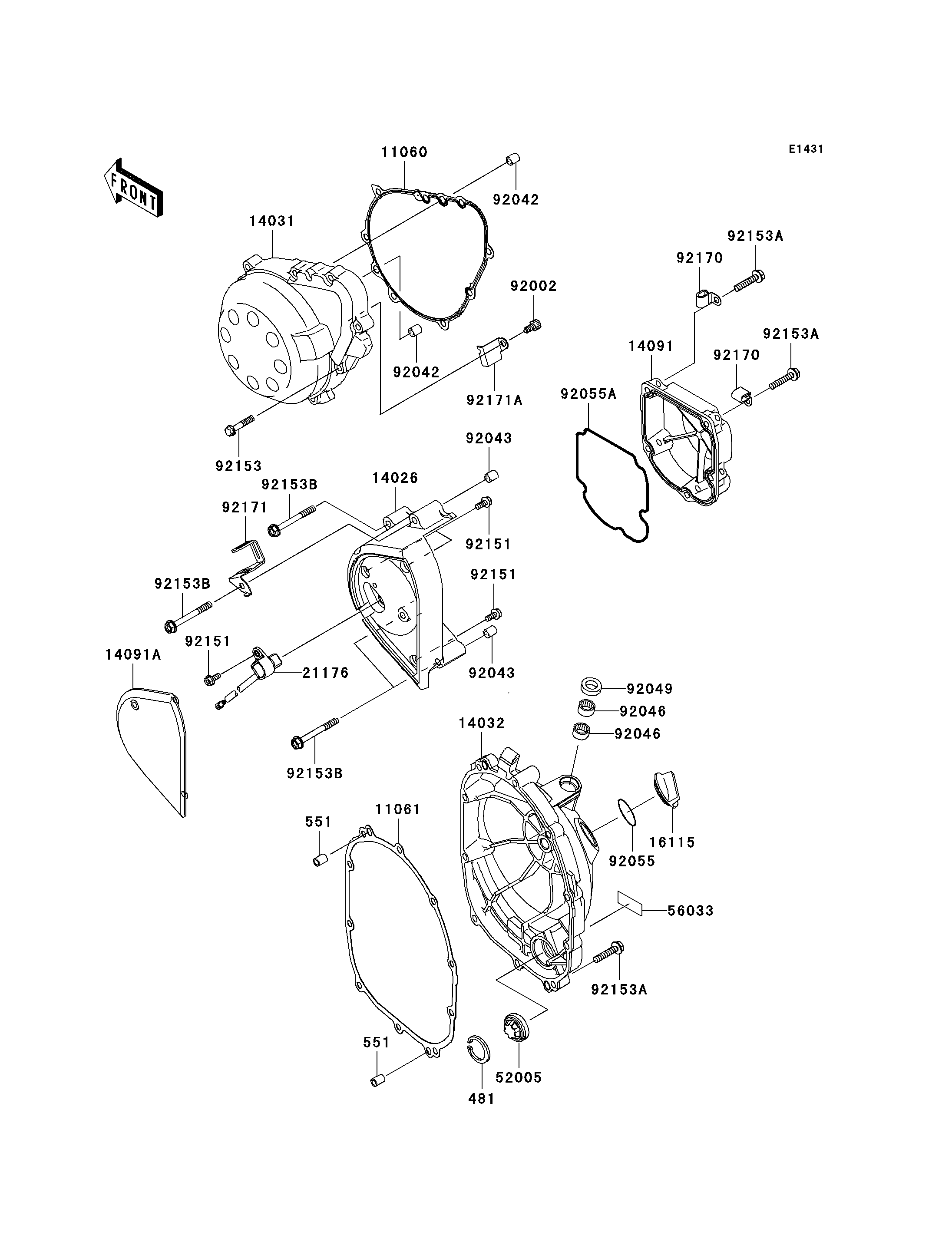

2006 Z750S - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
481
551
551
11060
11061
14026
14031
14032
14091
14091A
16115
21176
52005
56033
92002
92042
92042
92043
92043
92046
92046
92049
92055
92055A
92151
92151
92151
92153
92153A
92153A
92153A
92153B
92153B
92153B
92170
92170
92171
92171A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP-TYPE-C,30MM 481 481J3000 1
PIN-DOWEL,8X14 551 551A0814 2
GASKET,GENERATOR COVER 11060 11060-1854 1
GASKET,CLUTCH COVER 11061 11061-1166 1
COVER-CHAIN 14026 14026-1293 1
COVER-GENERATOR 14031 14031-0010 1
COVER-CLUTCH 14032 14032-0015 1
COVER,PULSE 14091 14091-0106 1
COVER,RELEASE 14091A 14091-1529 1
CAP-OIL FILLER 16115 16115-1009 1
SENSOR,SPEED 21176 21176-0045 1
GAUGE 52005 52005-1120 1
LABEL-MANUAL,OIL CAPACITY 56033 56033-0022 1
BOLT,SOCKET,6X12 92002 92002-1796 1
PIN,DOWEL,6.3X8X14 92042 92042-007 2
PIN,6.2X8X14 92043 92043-1263 2
BEARING-NEEDLE,HK1210 92046 92046-1010 2
SEAL-OIL,CLUTCH RELEASE 92049 92049-1475 1
RING-O,31.7X2.4 92055 92055-049 1
RING-O,PULSE COVER 92055A 92055-1570 1
BOLT,FLANGED,5X12 92151 92151-1305 4
BOLT,6X30 92153 92153-0601 8
BOLT,6X30 92153A 92153-0608 15
BOLT,FLANGED,M6X55 92153B 92153-0609 4
CLAMP 92170 92170-1577 2
CLAMP 92171 92171-0067 1
CLAMP 92171A 92171-1566 1
