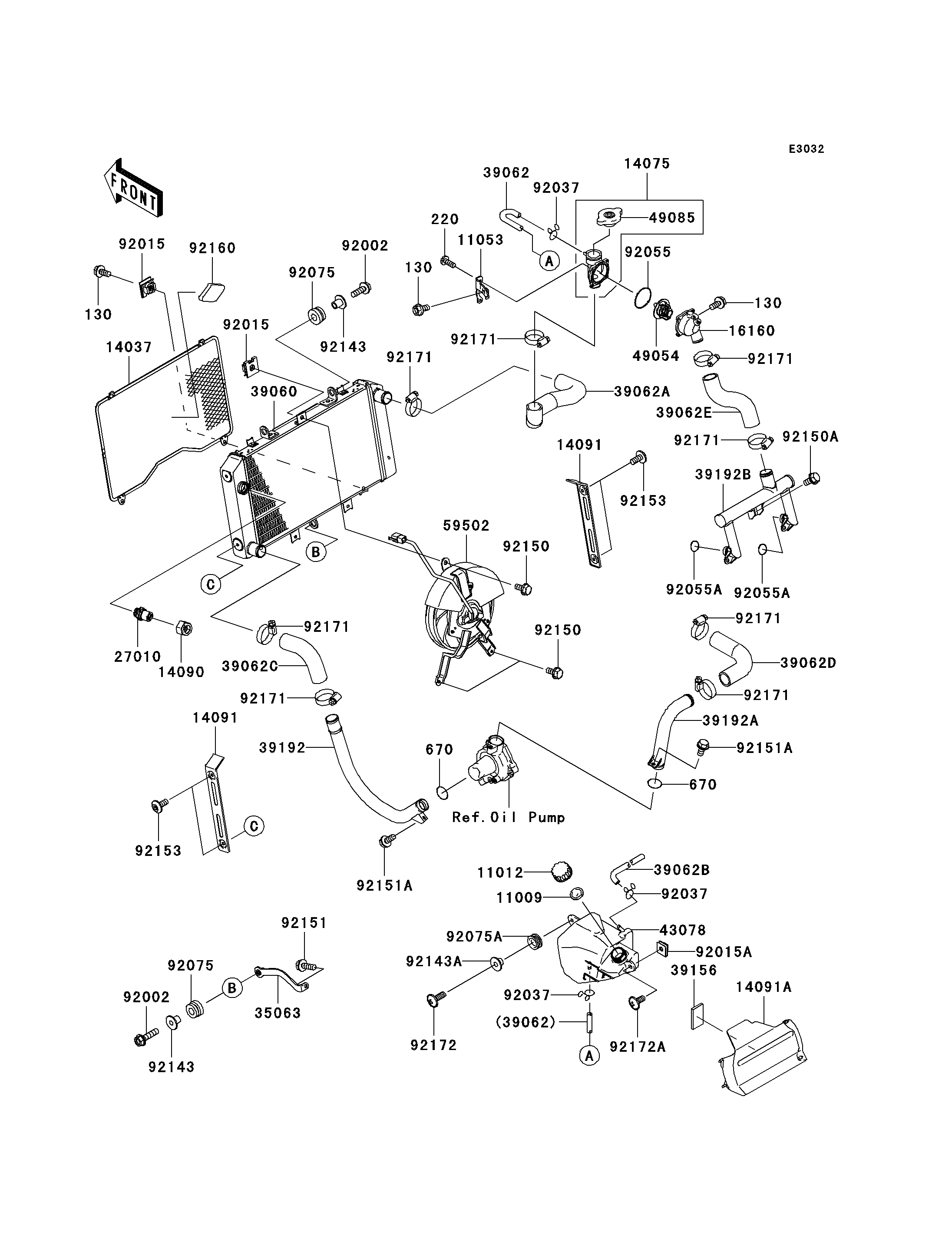

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,RESERVOIR TANK CAP | 11009 | 11009-1145 | 1 | ||
| CAP | 11012 | 11012-1084 | 1 | ||
| BRACKET,THERMOSTAT | 11053 | 11053-1070 | 1 | ||
| SCREEN | 14037 | 14037-1315 | 1 | ||
| CAP-ASSY | 14075 | 14075-0001 | 1 | ||
| COVER | 14090 | 14090-1830 | 1 | ||
| COVER,RADIATOR | 14091 | 14091-0097 | 2 | ||
| COVER | 14091A | 14091-1532 | 1 | ||
| BODY,LWR | 16160 | 16160-0039 | 1 | ||
| SWITCH | 27010 | 27010-1443 | 1 | ||
| STAY,RADIATOR | 35063 | 35063-0065 | 1 | ||
| RADIATOR | 39060 | 39060-0007 | 1 | ||
| HOSE-COOLING,THERMO-RESERVOR | 39062 | 39062-0013 | 1 | ||
| HOSE-COOLING,THERMO-RADIATOR | 39062A | 39062-0045 | 1 | ||
| HOSE-COOLING,5.5X10.5X550 | 39062B | 39062-1208 | 1 | ||
| HOSE-COOLING,FITTING | 39062C | 39062-1851 | 1 | ||
| HOSE-COOLING,PUMP-CYLINDER | 39062D | 39062-1914 | 1 | ||
| HOSE-COOLING,HEAD-THERMO | 39062E | 39062-1916 | 1 | ||
| PAD | 39156 | 39156-0018 | 1 | ||
| PIPE-WATER | 39192 | 39192-0012 | 1 | ||
| PIPE-WATER | 39192A | 39192-0015 | 1 | ||
| PIPE-WATER | 39192B | 39192-1151 | 1 | ||
| RESERVOIR | 43078 | 43078-1187 | 1 | ||
| THERMOSTAT | 49054 | 49054-1067 | 1 | ||
| CAP-ASSY-PRESSURE | 49085 | 49085-1066 | 1 | ||
| FAN-ASSY | 59502 | 59502-0008 | 1 | ||
| BOLT,FLANGED,6X25 | 92002 | 92002-1086 | 3 | ||
| NUT | 92015 | 92015-1487 | 5 | ||
| NUT,CLAMP,6MM | 92015A | 92015-1531 | 1 | ||
| CLAMP,TUBE | 92037 | 92037-147 | 3 | ||
| RING-O,53.5X2.6 | 92055 | 92055-112 | 1 | ||
| RING-O,18.54X2.6 | 92055A | 92055-1350 | 2 | ||
| DAMPER,RUBBER | 92075 | 92075-1123 | 3 | ||
| DAMPER | 92075A | 92075-1634 | 1 | ||
| COLLAR | 92143 | 92143-1353 | 3 | ||
| COLLAR | 92143A | 92143-1962 | 1 | ||
| BOLT,6X12 | 92150 | 92150-1186 | 3 | ||
| BOLT,6X12 | 92150A | 92150-1841 | 3 | ||
| BOLT,FLANGED,6X16 | 92151 | 92151-1774 | 1 | ||
| BOLT,6X12 | 92151A | 92151-1997 | 2 | ||
| BOLT-FLANGED,6X12 | 130 | 130J0612 | 4 | ||
| SCREW-PAN-CROS,5X14 | 220 | 220D0514 | 4 | ||
| O RING,21MM | 670 | 670B2021 | 2 | ||
| BOLT,6X14 | 92153 | 92153-0603 | 4 | ||
| DAMPER | 92160 | 92160-1863 | 1 | ||
| CLAMP | 92171 | 92171-0179 | 8 | ||
| SCREW,6X18 | 92172 | 92172-0002 | 1 | ||
| SCREW,6X14 | 92172A | 92172-0004 | 1 |
