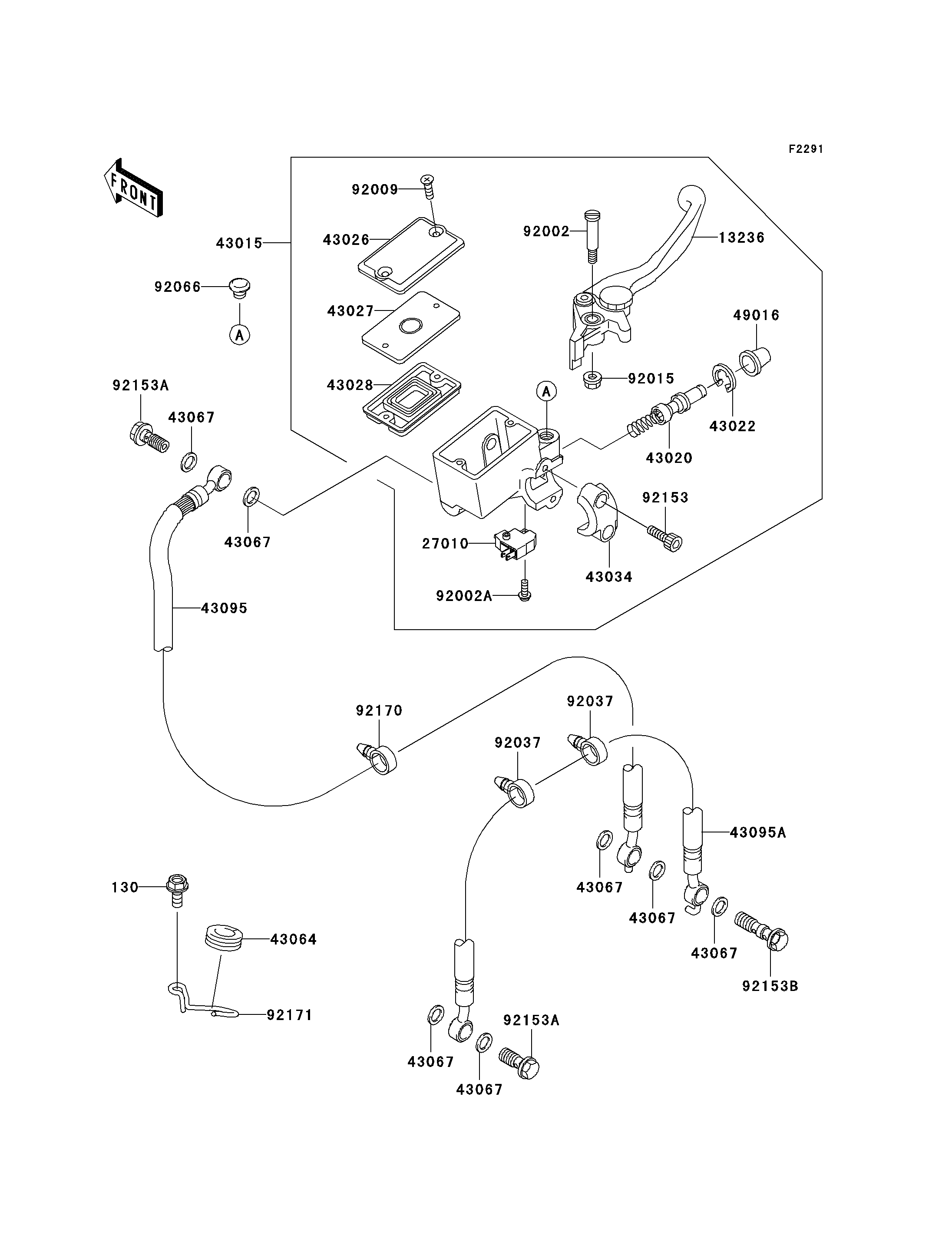

2006 Z750S - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
130
13236
27010
43015
43020
43022
43026
43027
43028
43034
43064
43067
43067
43067
43067
43067
43067
43067
43095
43095A
49016
92002
92002A
92009
92015
92037
92037
92066
92153
92153A
92153A
92153B
92170
92171
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14 130 130L0614 1
LEVER-COMP,FRONT BRAKE 13236 13236-1337 1
SWITCH,BRAKE 27010 27010-0025 1
CYLINDER-ASSY-MASTER,FR 43015 43015-0011 1
PISTON-COMP-BRAKE,FR 43020 43020-1054 1
STOPPER-BRAKE,PISTON 43022 43022-1010 1
CAP-BRAKE 43026 43026-1076 1
PLATE-DIAPHRAGM 43027 43027-1055 1
DIAPHRAGM,MASTER CYLINDER 43028 43028-1058 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-1053 1
GROMMET,HOSE CLAMP 43064 43064-007 1
WASHER,10.5X15X1.5 43067 43067-001 7
HOSE-BRAKE,FR 43095 43095-0079 1
HOSE-BRAKE,FR 43095A 43095-0116 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
BOLT,LEVER SET,BLACK 92002 92002-1322 1
BOLT,SCREW,4X12 92002A 92002-1323 1
SCREW,4MM 92009 92009-1458 2
NUT,FLANGED,6MM,BLACK 92015 92015-1233 1
CLAMP,HOSE 92037 92037-1827 2
PLUG,9.5X8,POLYETHYLENE 92066 92066-1077 1
BOLT,SOCKET,6X20 92153 92153-0417 2
BOLT,OIL,L=23 92153A 92153-0627 2
BOLT,OIL,L=37 92153B 92153-0628 1
CLAMP 92170 92170-1067 1
CLAMP,BRAKE HOSE 92171 92171-0303 1
