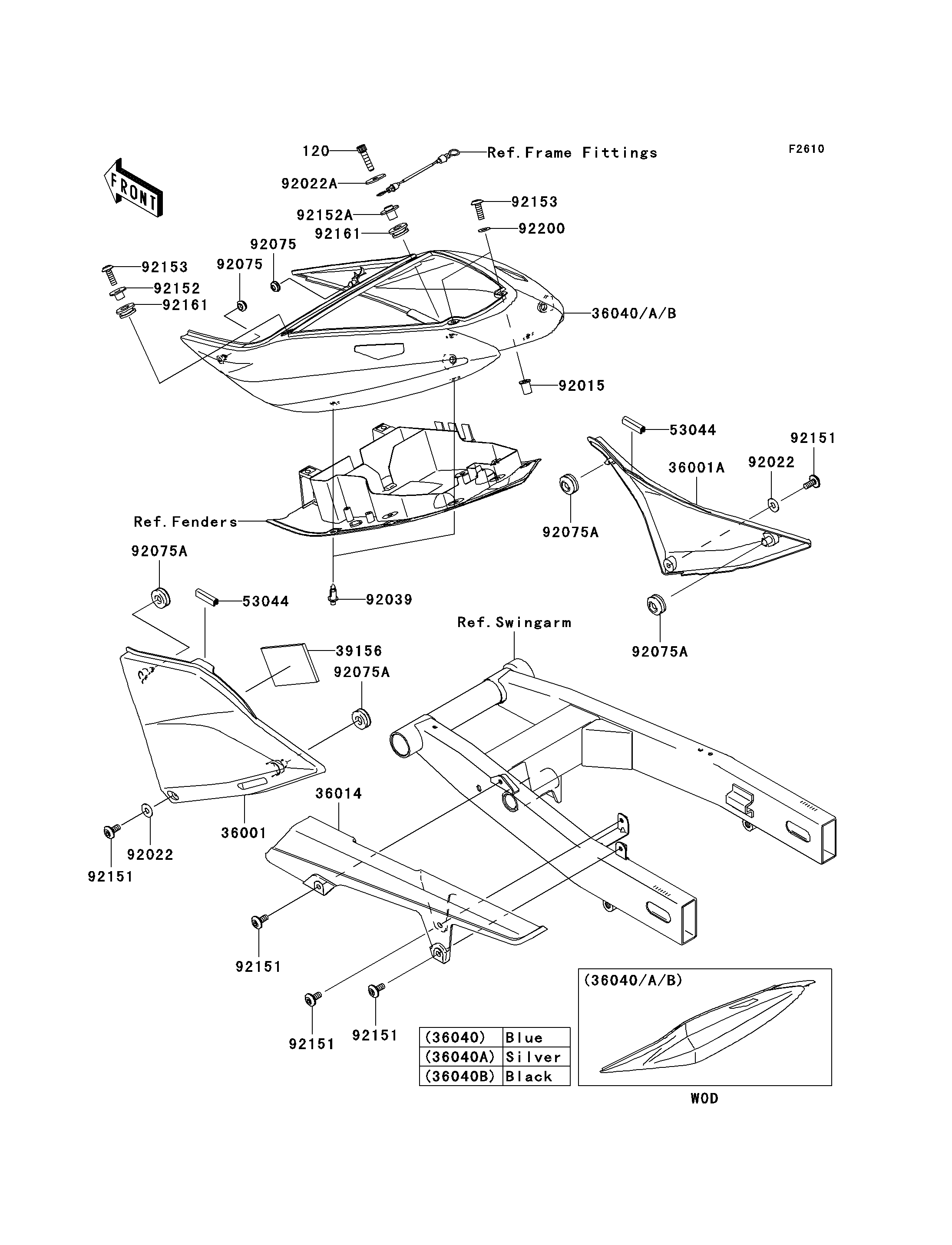

2006 Z750S - Side Covers/Chain Cover

DOWNLOAD PDF
SELECT A NEW PART
120
36001
36001A
36014
36040B
39156
53044
53044
92015
92022
92022
92022A
92039
92075
92075
92075A
92075A
92075A
92075A
92151
92151
92151
92151
92151
92152
92152A
92153
92153
92161
92161
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,5X20 120 120W0520 1
COVER-SIDE,LH,F.S.BLACK 36001 36001-0040-8J 1
COVER-SIDE,RH,F.S.BLACK 36001A 36001-0041-8J 1
CASE-CHAIN 36014 36014-0025 1
COVER-TAIL,M.S.BLACK 36040B 36040-0022-660 1
PAD 39156 39156-0024 1
TRIM,L=30 53044 53044-0001 2
NUT,WELL,5MM 92015 92015-1757 2
WASHER,6.5X16X1 92022 92022-1143 2
WASHER,5.5X20X1.2 92022A 92022-1405 1
RIVET 92039 92039-0015 4
DAMPER 92075 92075-1011 2
DAMPER 92075A 92075-1067 4
BOLT,SOCKET,6X14 92151 92151-1654 5
COLLAR 92152 92152-0092 1
COLLAR 92152A 92152-0304 1
BOLT,SOCKET,5X16 92153 92153-1244 3
DAMPER 92161 92161-0317 2
WASHER,NYLONE,5.3X11.5X0.5 92200 92200-0006 2
COVER-TAIL,BLUE 36040 36040-0022-10E 1 CN
COVER-TAIL,G.SILVER 36040A 36040-0022-474 1 CN
