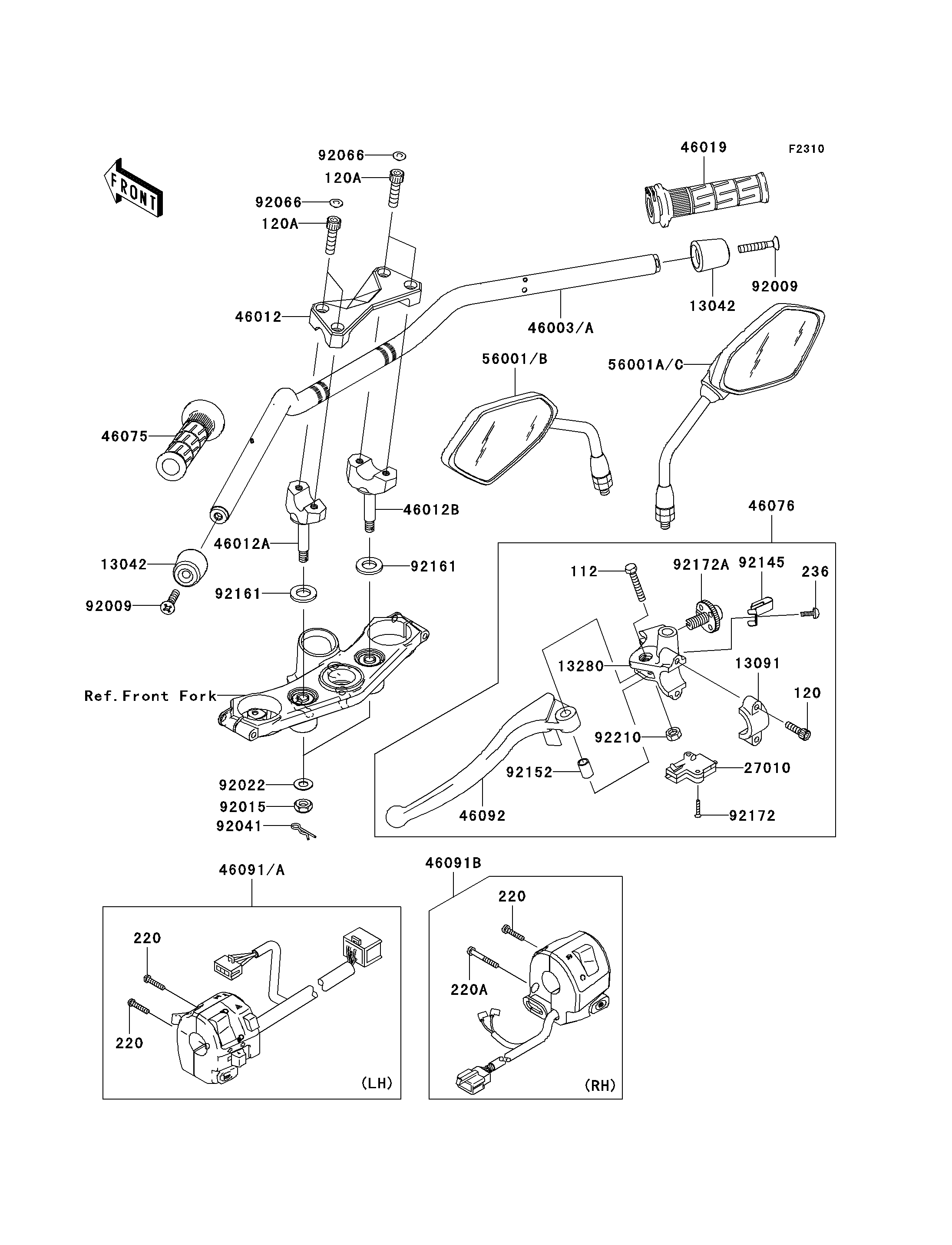

2010 Z750 (European) - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
112
120
120A
120A
220
220
220
220A
236
13042
13042
13091
13280
27010
46003A
46012
46012A
46012B
46019
46075
46076
46091A
46091B
46092
56001B
56001C
92009
92009
92015
92022
92041
92066
92066
92145
92152
92161
92161
92172
92172A
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET,6X30 112 112BB0630 1
BOLT-SOCKET,6X20 120 120CB0620 2
BOLT-SOCKET,8X30 120A 120CB0830 4
SCREW-PAN-CROS,5X25 220 220AB0525 3
SCREW-PAN-CROSS,5X40 220A 220AB0540 1
SCREW-PAN-WSP-CROS,4X10 236 236AB0410 1
WEIGHT,HANDLE 13042 13042-1005 2
HOLDER,CLUTCH LEVER 13091 13091-1624 1
HOLDER,CLUTCH LEVER 13280 13280-0017 1
SWITCH,CLUTCH,BLACK 27010 27010-1094 1
HANDLE,M.F.GRAYSTONE 46003A 46003-0150-4P 1
HOLDER-HANDLE,UPP 46012 46012-1338 1
HOLDER-HANDLE,LWR,LH 46012A 46012-1339 1
HOLDER-HANDLE,LWR,RH 46012B 46012-1340 1
GRIP-ASSY,THROTTLE 46019 46019-0001 1
GRIP,LH 46075 46075-1144 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-0005 1
HOUSING-ASSY-CONTROL,LH 46091A 46091-0196 1
HOUSING-ASSY-CONTROL,RH 46091B 46091-1891 1
LEVER-GRIP,CLUTCH 46092 46092-0003 1
MIRROR-ASSY,LH 56001B 56001-0117 1
MIRROR-ASSY,RH 56001C 56001-0118 1
SCREW,8X45 92009 92009-1257 2
NUT,LOCK,10MM 92015 92015-1962 2
WASHER,10.2X28X2 92022 92022-1088 2
COTTER,8MM 92041 92041-1060 2
PLUG 92066 92066-1216 4
SPRING 92145 92145-1286 1
COLLAR 92152 92152-0103 1
DAMPER 92161 92161-0037 2
SCREW,3X16 92172 92172-0183 2
SCREW,ADJUST NUT 92172A 92172-1060 1
NUT,LOCK,6MM 92210 92210-0006 1
