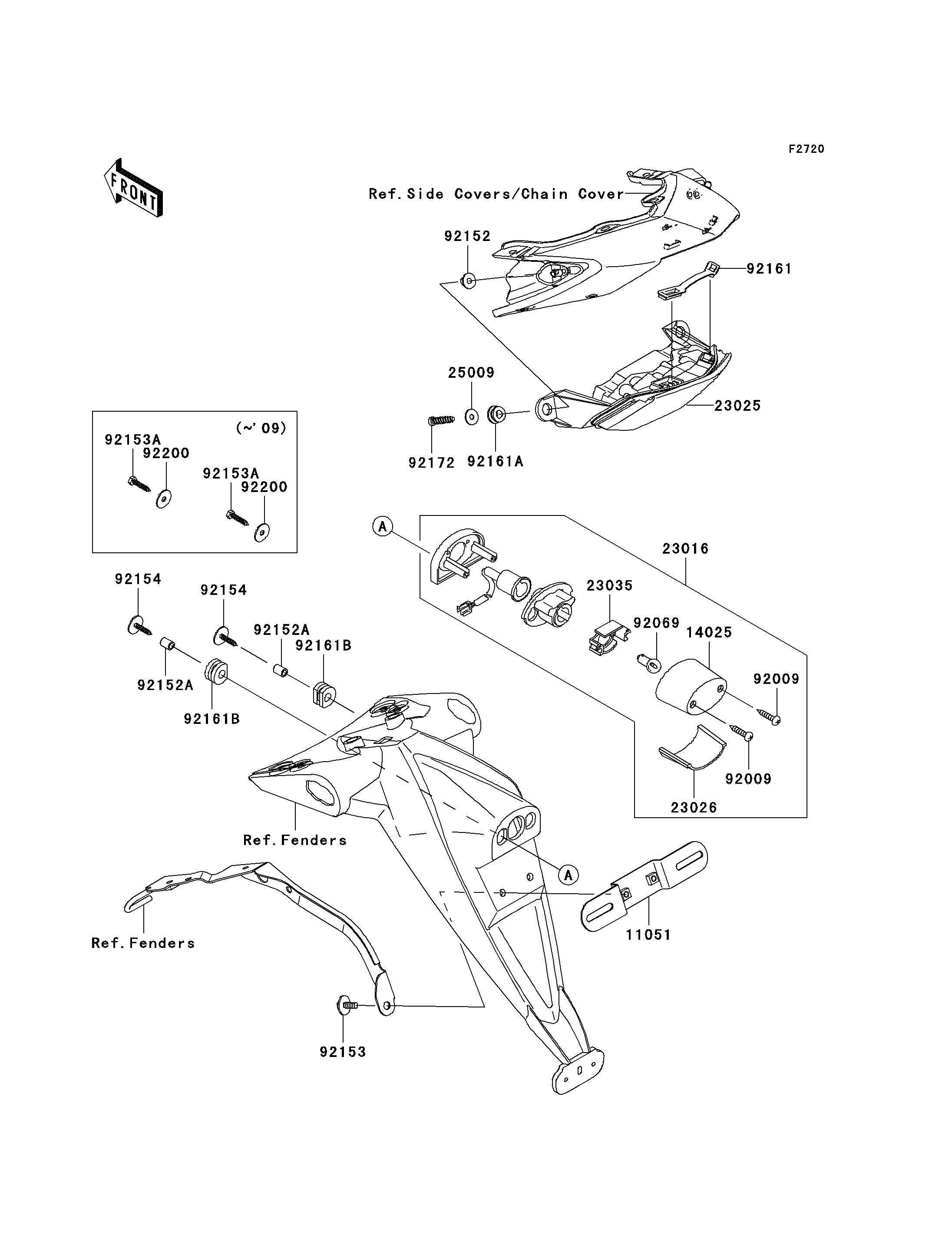

2010 Z750 (European) - Taillight(s)

DOWNLOAD PDF
SELECT A NEW PART
11051
14025
23016
23025
23026
23035
25009
92009
92009
92069
92152
92152A
92152A
92153
92154
92154
92161
92161A
92161B
92161B
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LICENSE 11051 11051-1503 1
COVER,LICENSE LAMP 14025 14025-1725 1
LAMP-ASSY,LICENSE 23016 23016-1200 1
LAMP-TAIL 23025 23025-0059 1
LENS,LICENSE LAMP 23026 23026-1064 1
REFLECTOR-LAMP,LICENSE 23035 23035-1066 1
WASHER,5.2X16X1.2 25009 25009-004 2
SCREW,TAPPING,4X20 92009 92009-1378 2
BULB,12V 5W 92069 92069-1055 1
COLLAR 92152 92152-0092 2
COLLAR,6X9X11.5 92152A 92152-0372 2
BOLT,6X16 92153 92153-0684 2
BOLT,TAPPING,WASHER,5X25 92154 92154-0261 2
DAMPER,TAIL LAMP 92161 92161-0191 1
DAMPER 92161A 92161-0317 2
DAMPER 92161B 92161-0776 2
SCREW-PAN-CROS,5X25 92172 92172-0056 2
