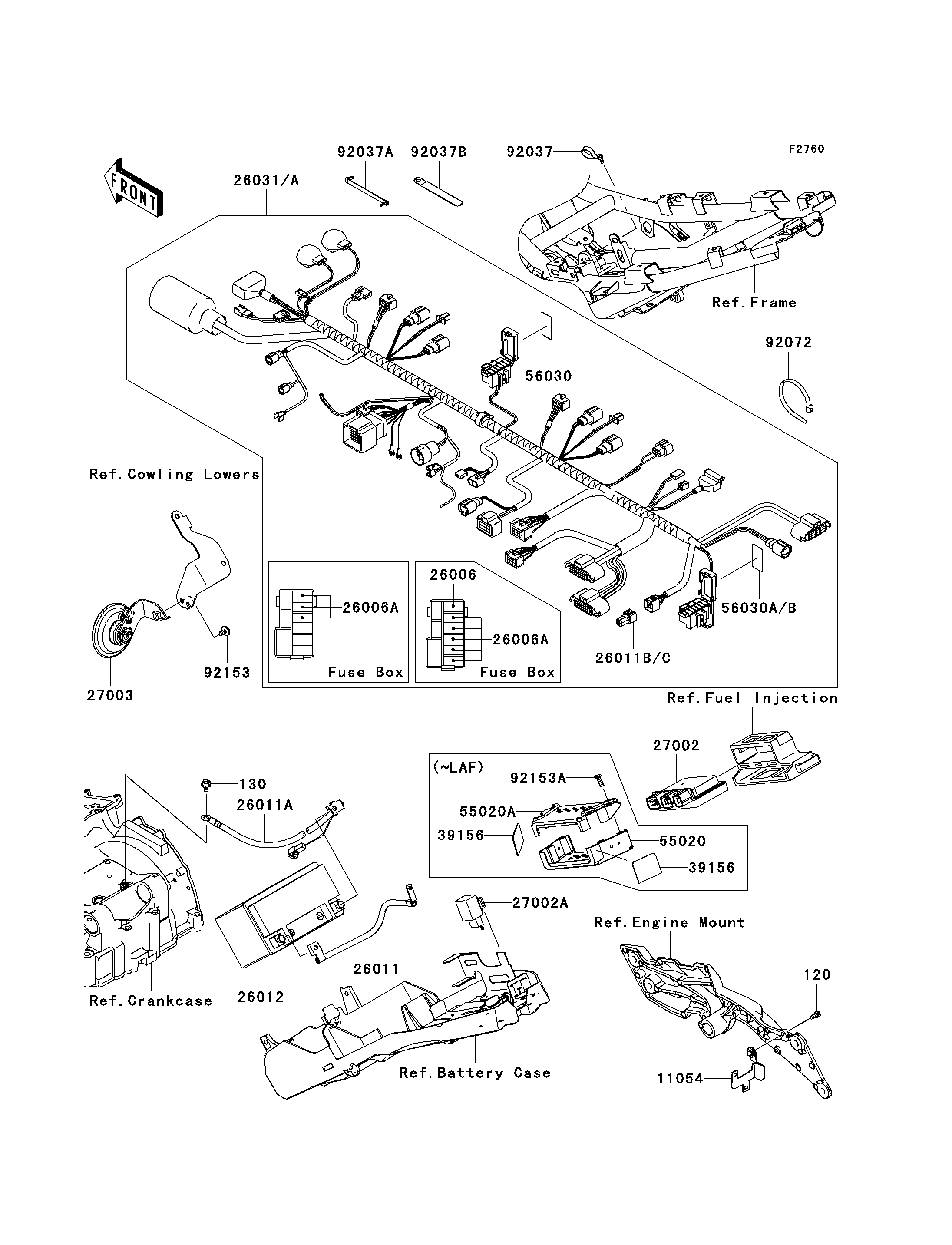

2010 Z750 (European) - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
120
130
11054
26006
26006A
26006A
26011
26011A
26011C
26012
26031A
27002
27002A
27003
56030
56030B
92037
92037A
92037B
92072
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,5X10 120 120CB0510 1
BOLT-FLANGED,6X10 130 130BA0610 1
BRACKET,COUPLER 11054 11054-1992 1
FUSE,15A 26006 26006-0001 1
FUSE,10A 26006A 26006-1078 8
WIRE-LEAD,BATTERY(+) 26011 26011-0107 1
WIRE-LEAD,BATTERY(-) 26011A 26011-0108 1
WIRE-LEAD,CAP 26011C 26011-0271 1
BATTERY,YTX9-BS,12V 8AH 26012 26012-0088 1
HARNESS,MAIN 26031A 26031-0849 1
RELAY-ASSY 27002 27002-0007 1
RELAY-ASSY,SIGNAL LAMP 27002A 27002-1097 1
HORN 27003 27003-0053 1
LABEL,FUSE BOX 56030 56030-0143 1
LABEL,FUSE BOX 15A/10A 56030B 56030-0169 1
CLAMP,SPEED,L=58 92037 92037-1163 1
CLAMP,SPEED,L=80.5 92037A 92037-1903 2
CLAMP 92037B 92037-1993 2
BAND,L=202 92072 92072-1195 2
BOLT,SOCKET,6X10 92153 92153-0410 1
