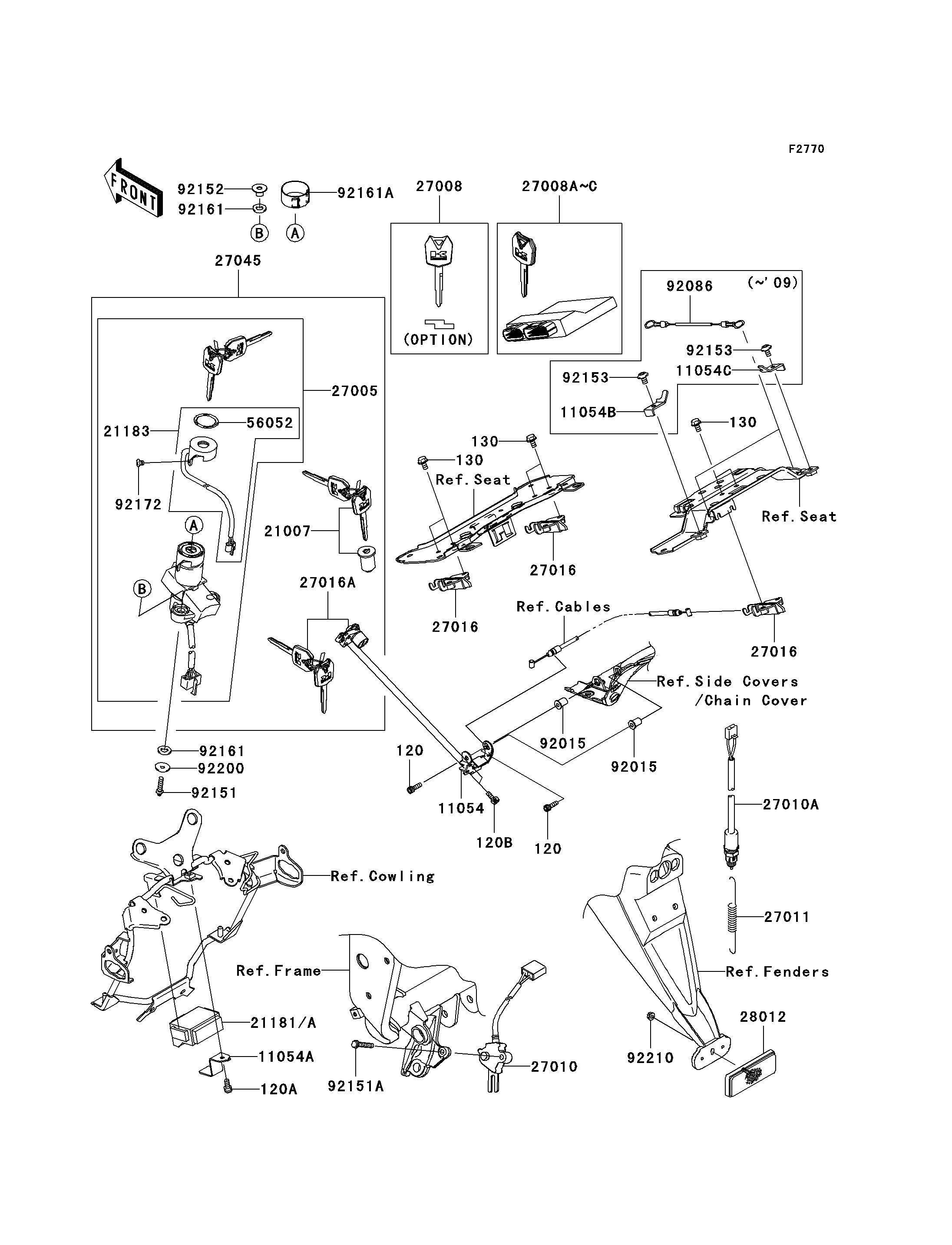

2010 Z750 (European) - Ignition Switch

DOWNLOAD PDF
SELECT A NEW PART
120
120
120A
120B
130
130
130
11054
11054A
21007
21181A
21183
27005
27008
27008C
27010
27010A
27011
27016
27016
27016
27016A
27045
28012
56052
92015
92015
92151
92151A
92152
92161
92161
92161A
92172
92200
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,5X16 120 120CA0516 2
BOLT-SOCKET,5X10 120A 120CB0510 1
BOLT-SOCKET,5X12 120B 120CB0512 2
BOLT-FLANGED,6X12 130 130BB0612 6
BRACKET,SEAT LOCK 11054 11054-0510 1
BRACKET,IMMOBI AMP. 11054A 11054-1182 1
ROTOR,LOCK,TANK CAP 21007 21007-5056 1
AMPLIFIER,IMMOBI 21181A 21181-0004 1
ANTENNA,IMMOBI 21183 21183-0002 1
SWITCH-ASSY-IGNITION 27005 27005-5138 1
KEY-LOCK,BLANK,IMMOBI,SUB 27008 27008-0029 1 (OPTION)
MASTER KEY SET(BLANK),IMMOBI 27008C 27008-5052 1
SWITCH,SIDE STAND 27010 27010-0065 1
SWITCH,REAR BRAKE 27010A 27010-1479 1
SPRING,BRAKE LAMP SWITCH 27011 27011-021 1
LOCK-ASSY,SEAT STRIKER 27016 27016-1115 3
LOCK-ASSY,SEAT 27016A 27016-5310 1
SWITCH-ASSY 27045 27045-5338 1
REFLECTOR-REFLEX 28012 28012-1077 1
MARK,IMMOBI 56052 56052-0292 1
NUT,WELL,5MM 92015 92015-1757 2
BOLT,TORX,6X22 92151 92151-1946 2
BOLT,6X35 92151A 92151-1982 1
COLLAR 92152 92152-0352 2
DAMPER,IGNITION SWITCH 92161 92161-0240 4
DAMPER,IGNITION SWITCH 92161A 92161-0257 1
SCREW,4X8 92172 92172-0188 2
WASHER,6X20X1.6 92200 92200-0212 2
NUT,FLANGED,5MM 92210 92210-0007 1
