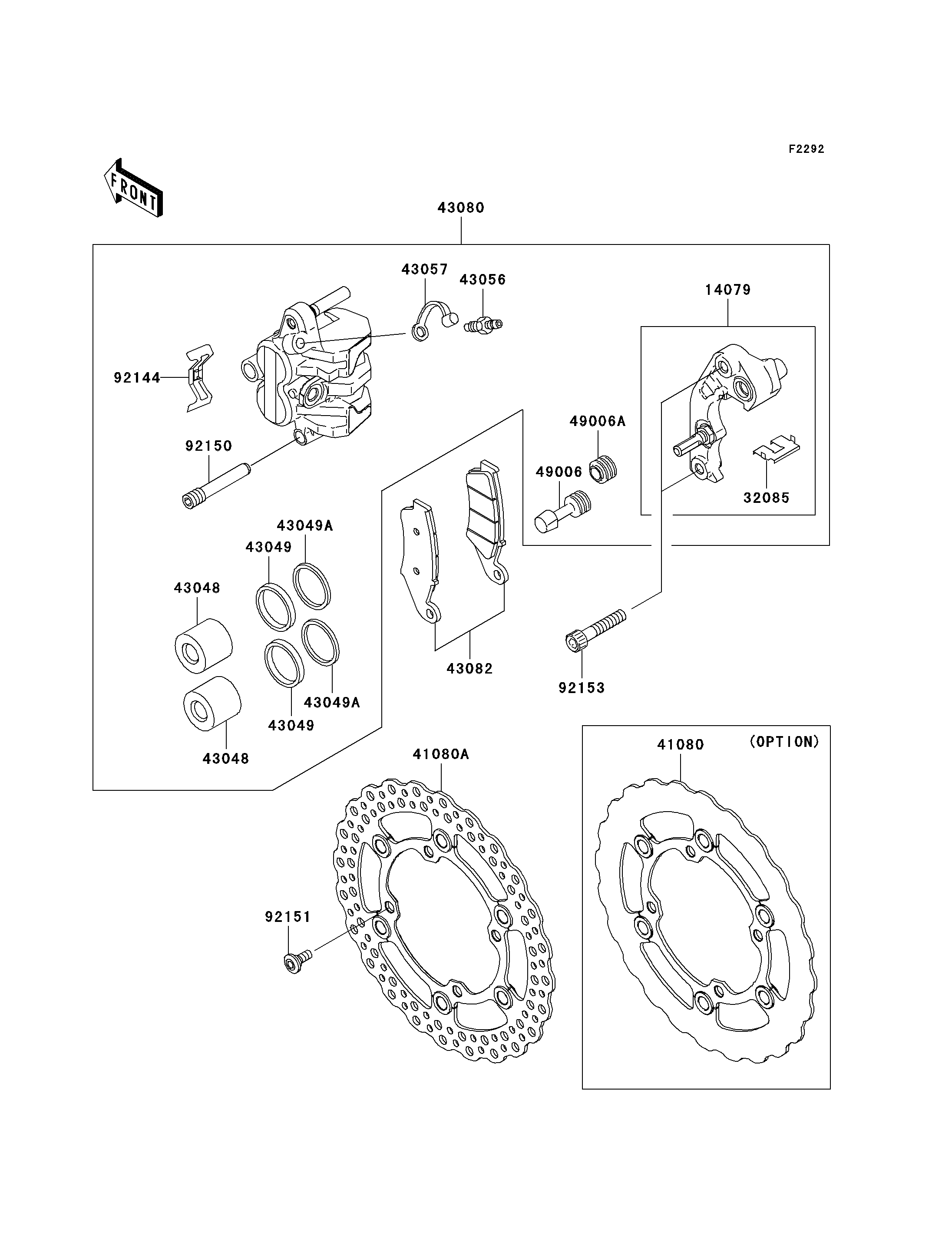

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
14079
32085
41080
41080A
43048
43048
43049
43049
43049A
43049A
43056
43057
43080
43082
49006
49006A
92144
92150
92151
92153
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOLDER-ASSY,FRONT CALIPER | 14079 | 14079-0043 | 1 | ||
| STOPPER,PAD | 32085 | 32085-1361 | 1 | ||
| DISC,FR | 41080 | 41080-0082 | 1 | (OPTION) | |
| DISC,FR | 41080A | 41080-0090 | 1 | ||
| PISTON-CALIPER | 43048 | 43048-1095 | 2 | ||
| PACKING,PISTON SEAL | 43049 | 43049-1060 | 2 | ||
| PACKING,PISTON SEAL | 43049A | 43049-1061 | 2 | ||
| BREATHER | 43056 | 43056-1055 | 1 | ||
| CAP-BREATHER | 43057 | 43057-1001 | 1 | ||
| CALIPER-SUB-ASSY,FR,LH | 43080 | 43080-0067 | 1 | ||
| PAD-ASSY-BRAKE | 43082 | 43082-0049 | 1 | ||
| BOOT,CALIPER | 49006 | 49006-1088 | 1 | ||
| BOOT,CALIPER | 49006A | 49006-1242 | 1 | ||
| SPRING,PAD | 92144 | 92144-1721 | 1 | ||
| BOLT,HANGER | 92150 | 92150-1691 | 1 | ||
| BOLT,DISC PLATE,6MM | 92151 | 92151-1799 | 4 | ||
| BOLT,SOCKET,8X40 | 92153 | 92153-0517 | 2 |
