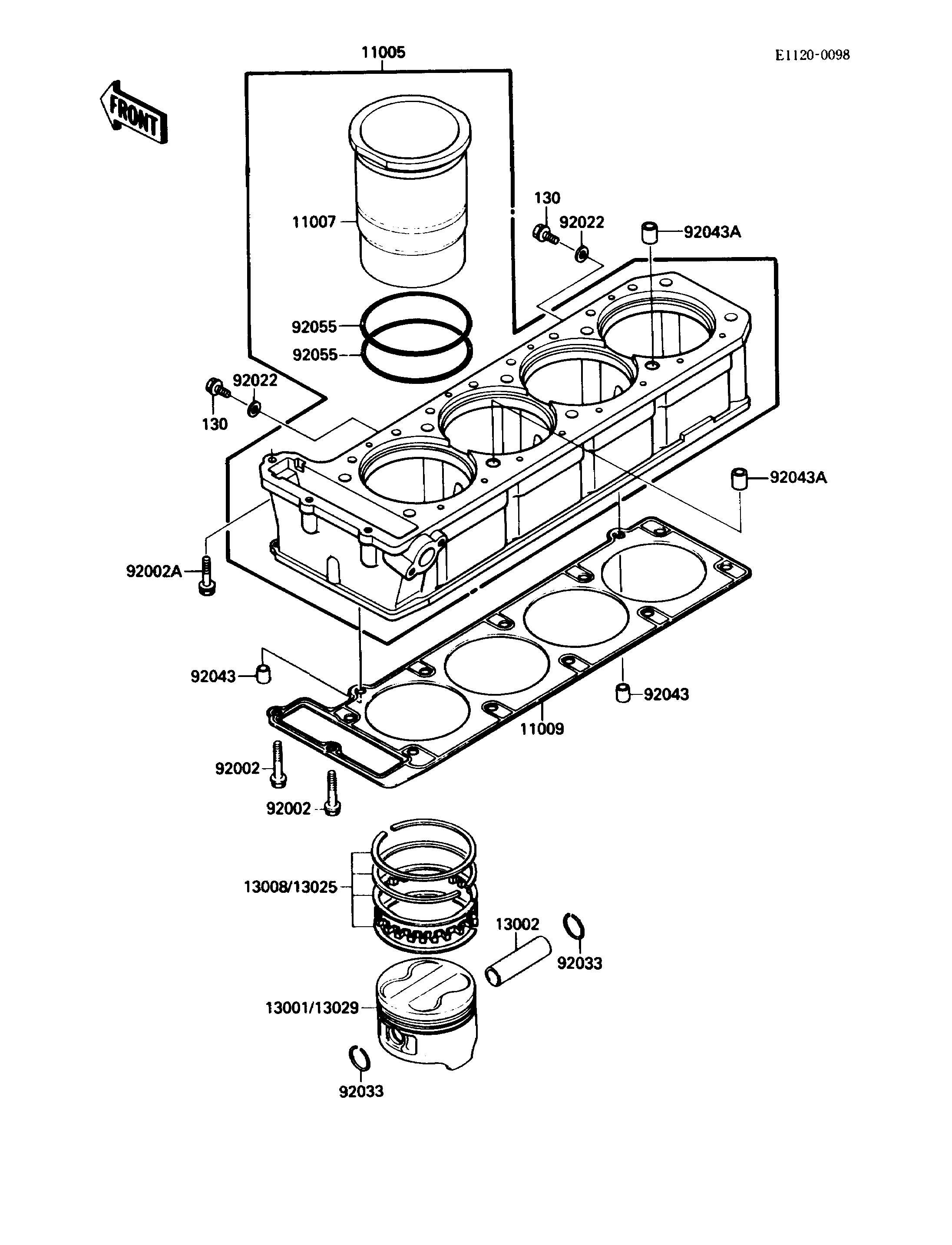

1988 NINJA® ZX-10 - Cylinder/Piston(s)

DOWNLOAD PDF
SELECT A NEW PART
130
130
11005
11007
11009
13001
13002
13008
92002
92002
92002A
92022
92022
92033
92033
92043
92043
92043A
92043A
92055
92055
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10,BLACK 130 130C0610 2
CYLINDER-ENGINE 11005 11005-1551 1
LINER-CYLINDER 11007 11007-1102 4
GASKET,CYLINDER BASE 11009 11009-1505 1
PISTON-ENGINE,STD 13001 13001-1273 4
PIN-PISTON 13002 13002-1058 4
RING-SET-PISTON,STD 13008 13008-1102 4
BOLT,6X38 92002 92001-1899 2
BOLT,6X30 92002A 92002-1138 1
WASHER,6.2X11X1 92022 92022-304 2
RING-SNAP,20.5X1.2 92033 92033-1099 8
PIN,8.2X10X14 92043 92043-1264 2
PIN,11.5X14X14 92043A 92043-1279 2
RING-O 92055 92055-1247 8
RING-SET-PISTON L,O/S 0.50 13025 13025-1091 AR
PISTON-ENGINE L,O/S 0.50 13029 13029-1172 AR
