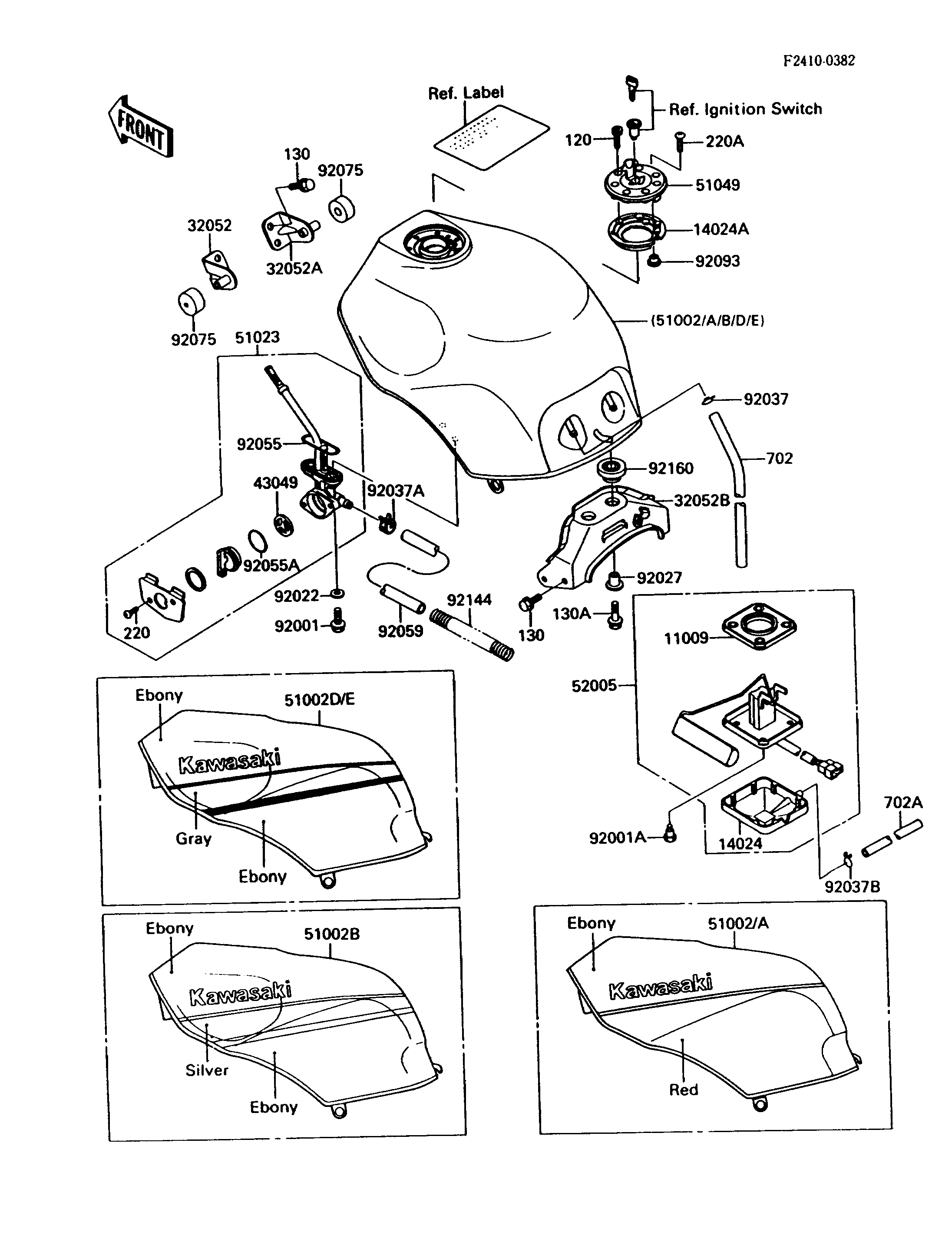

1988 NINJA® ZX-10 - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
14024
14024
14024A
14024A
32052
32052
32052A
32052A
32052B
32052B
43049
43049
51023
51023
51049
51049
52005
52005
92001
92001
92001A
92001A
92022
92022
92027
92027
92037
92037
92037A
92037A
92037B
92037B
92055
92055
120
120
130
130
130
130
130A
130A
220
220
220A
220A
702
702
702A
702A
92055A
92055A
92059
92059
92075
92075
92075
92075
92144
92144
92160
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FUEL GAUGE 11009 11009-1656 1
COVER,FUEL GAUGE 14024 14025-1536 1
COVER,TANK CAP 14024A 14025-1913 1
BRACKET-TANK,FR,LH 32052 32052-1268 1
BRACKET-TANK,FR,RH 32052A 32052-1269 1
BRACKET-TANK,RR 32052B 32052-1270 1
PACKING,TAP VALVE 43049 43049-1066 1
TAP-ASSY,FUEL 51023 51023-1151 1
CAP-TANK,FUEL 51049 51049-1079 1
GAUGE,FUEL 52005 52005-1090 1
BOLT,6X20 92001 92001-1091 2
BOLT,FUEL GAUGE 92001A 92001-1705 4
WASHER,6.2X11X1.5 92022 92022-183 2
COLLAR,L=16.1 92027 92027-1847 2
CLAMP,TUBE 92037 92037-010 1
CLAMP 92037A 92037-1181 1
CLAMP,TUBE 92037B 92037-147 1
RING-O,FUEL TAP PACKING 92055 92055-1112 1
BOLT-SOCKET 120 120S0512 7
BOLT-FLANGED,6X14,BLACK 130 130J0614 8
BOLT-FLANGED,6X25 130A 130J0625 2
SCREW-PAN-CROS 220 220C0308 2
SCREW-PAN-CROS 220A 220C0508 1
TUBE-RUBBER,7X10X400 702 702A07400 1
TUBE-RUBBER,7X10X640 702A 702A07640 1
RING-O,TAP LEVER 92055A 92055-1419 1
TUBE,8X13X210 92059 92059-1932 1
DAMPER,FUEL TANK 92075 92075-125 2
SPRING,HOSE PROTECTOR 92144 92144-1347 1
DAMPER 92160 92160-1046 2
TANK-COMP-FUEL,EBONY/RED 51002 51002-5433-J3 1 CNUS
TANK-COMP-FUEL,EBONY/RED 51002A 51002-5434-J3 1 CA
TANK-COMP-FUEL,EBONY/SILVER 51002B 51002-5437-DE 1 CN
SEAL,FUEL TANK CAP 92093 92093-1030 1 CA
