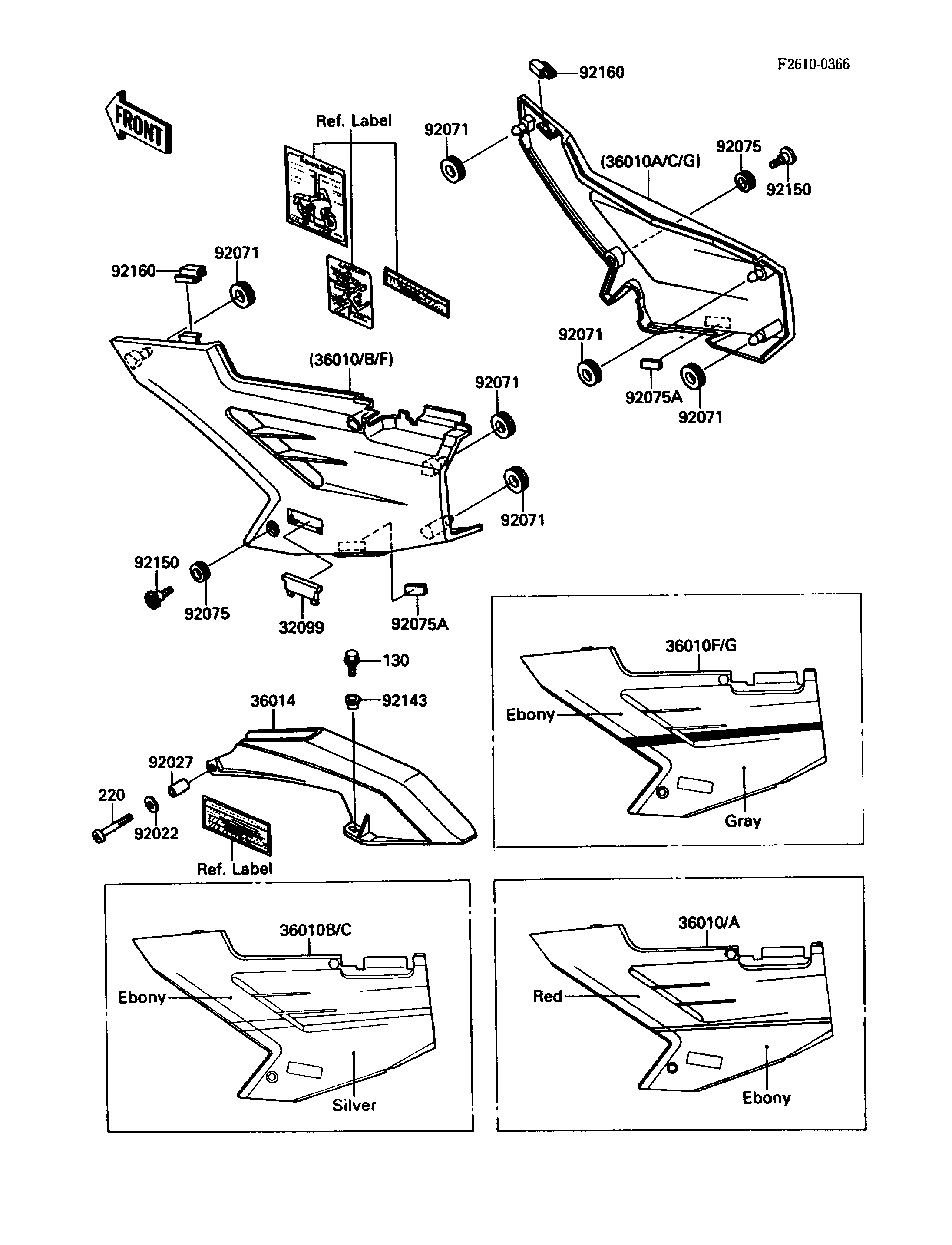

1989 Ninja® ZX™-10 - Side Covers/Chain Cover
130
220
32099
36010F
36010F
36010G
36010G
36014
92022
92027
92071
92071
92071
92071
92071
92071
92075
92075
92075A
92075A
92143
92150
92150
92160
92160
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X14,BLACK | 130 | 130J0614 | 1 | ||
| SCREW-PAN-CROS,6X35,BLACK | 220 | 220C0635 | 1 | ||
| CASE,SIDE COVER | 32099 | 32099-1116 | 1 | ||
| COVER-SIDE,LH,EBONY/GRAY | 36010F | 36010-5103-T4 | 1 | ||
| COVER-SIDE,RH,EBONY/GRAY | 36010G | 36010-5104-T4 | 1 | ||
| CASE-CHAIN | 36014 | 36014-1151 | 1 | ||
| WASHER,6.5X20X1.6,BLACK | 92022 | 92022-1346 | 1 | ||
| COLLAR,6.8X10X20 | 92027 | 92027-1856 | 1 | ||
| GROMMET | 92071 | 92071-056 | 6 | ||
| DAMPER | 92075 | 92075-1634 | 2 | ||
| DAMPER | 92075A | 92075-1902 | 2 | ||
| COLLAR,L=6.6 | 92143 | 92143-1088 | 1 | ||
| BOLT,SOCKET,6MM | 92150 | 92150-1154 | 2 | ||
| DAMPER | 92160 | 92160-1085 | 2 |
