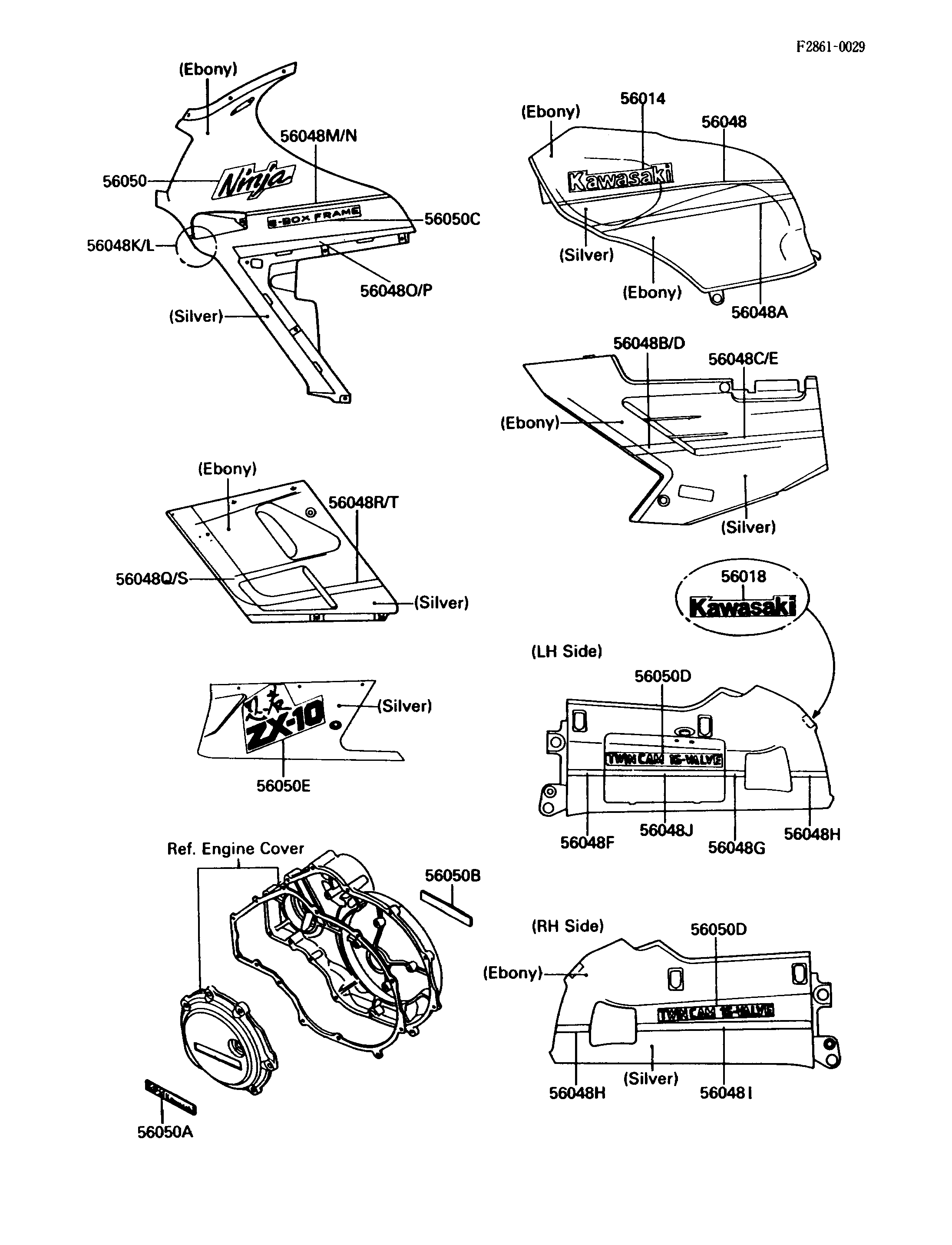

1988 NINJA® ZX-10 - Decals(Ebony/Silver)(ZX1000-B1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| EMBLEM,FUEL TANK,KAWASAKI | 56014 | 56014-1217 | 2 | CN | |
| MARK,KAWASAKI | 56018 | 56018-1675 | 1 | CN | |
| PATTERN,FUEL TANK,TOP | 56048 | 56048-1159 | 1 | CN | |
| PATTERN,FUEL TANK,LWR | 56048A | 56048-1160 | 1 | CN | |
| PATTERN,SIDE COVER,FR,LH | 56048B | 56048-1161 | 1 | CN | |
| PATTERN,SIDE COVER,RR,LH | 56048C | 56048-1162 | 1 | CN | |
| PATTERN,SIDE COVER,FR,RH | 56048D | 56048-1163 | 1 | CN | |
| PATTERN,SIDE COVER,RR,RH | 56048E | 56048-1164 | 1 | CN | |
| PATTERN,SEAT COVER,FR,LH | 56048F | 56048-1165 | 1 | CN | |
| PATTERN,SEAT COVER,CNT,LH | 56048G | 56048-1166 | 1 | CN | |
| PATTERN,SEAT COVER,RR,LH&RH | 56048H | 56048-1167 | 2 | CN | |
| PATTERN,SEAT COVER,FR,RH | 56048I | 56048-1168 | 1 | CN | |
| PATTERN,TOOL BOX COVER,LH | 56048J | 56048-1169 | 1 | CN | |
| PATTERN,UPP COWLING,UPP,FR,LH | 56048K | 56048-1170 | 1 | CN | |
| PATTERN,UPP COWLING,UPP,FR,RH | 56048L | 56048-1171 | 1 | CN | |
| PATTERN,UPP COWLING,UPP,RR,LH | 56048M | 56048-1172 | 1 | CN | |
| PATTERN,UPP COWLING,UPP,RR,RH | 56048N | 56048-1173 | 1 | CN | |
| PATTERN,UPP COWLING,LWR,LH | 56048O | 56048-1174 | 1 | CN | |
| PATTERN,UPP COWLING,LWR,RH | 56048P | 56048-1175 | 1 | CN | |
| PATTERN,CNT COWLING,FR,LH | 56048Q | 56048-1176 | 1 | CN | |
| PATTERN,CNT COWLING,RR,LH | 56048R | 56048-1177 | 1 | CN | |
| PATTERN,CNT COWLING,FR,RH | 56048S | 56048-1178 | 1 | CN | |
| PATTERN,CNT COWLING,RR,RH | 56048T | 56048-1179 | 1 | CN | |
| MARK,NINJA | 56050 | 56050-1090 | 2 | CN | |
| MARK,ENGINE COVER,LH | 56050A | 56050-1094 | 1 | CN | |
| MARK,ENGINE COVER,RH | 56050B | 56050-1095 | 1 | CN | |
| MARK,E-BOX FRAME | 56050C | 56050-1110 | 2 | CN | |
| MARK,TWIN CAM 16-VALVE | 56050D | 56050-1112 | 2 | CN | |
| MARK,NINJA/ZX-10 | 56050E | 56050-1122 | 2 | CN |
| EMBLEM,FUEL TANK,KAWASAKI | |
| REF # | 56014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| MARK,KAWASAKI | |
| REF # | 56018 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,FUEL TANK,TOP | |
| REF # | 56048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,FUEL TANK,LWR | |
| REF # | 56048A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,SIDE COVER,FR,LH | |
| REF # | 56048B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,SIDE COVER,RR,LH | |
| REF # | 56048C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,SIDE COVER,FR,RH | |
| REF # | 56048D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,SIDE COVER,RR,RH | |
| REF # | 56048E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,SEAT COVER,FR,LH | |
| REF # | 56048F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,SEAT COVER,CNT,LH | |
| REF # | 56048G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,SEAT COVER,RR,LH&RH | |
| REF # | 56048H |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,SEAT COVER,FR,RH | |
| REF # | 56048I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,TOOL BOX COVER,LH | |
| REF # | 56048J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,UPP COWLING,UPP,FR,LH | |
| REF # | 56048K |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,UPP COWLING,UPP,FR,RH | |
| REF # | 56048L |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,UPP COWLING,UPP,RR,LH | |
| REF # | 56048M |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,UPP COWLING,UPP,RR,RH | |
| REF # | 56048N |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,UPP COWLING,LWR,LH | |
| REF # | 56048O |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,UPP COWLING,LWR,RH | |
| REF # | 56048P |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,CNT COWLING,FR,LH | |
| REF # | 56048Q |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,CNT COWLING,RR,LH | |
| REF # | 56048R |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,CNT COWLING,FR,RH | |
| REF # | 56048S |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,CNT COWLING,RR,RH | |
| REF # | 56048T |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,NINJA | |
| REF # | 56050 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| MARK,ENGINE COVER,LH | |
| REF # | 56050A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,ENGINE COVER,RH | |
| REF # | 56050B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,E-BOX FRAME | |
| REF # | 56050C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| MARK,TWIN CAM 16-VALVE | |
| REF # | 56050D |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| MARK,NINJA/ZX-10 | |
| REF # | 56050E |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
