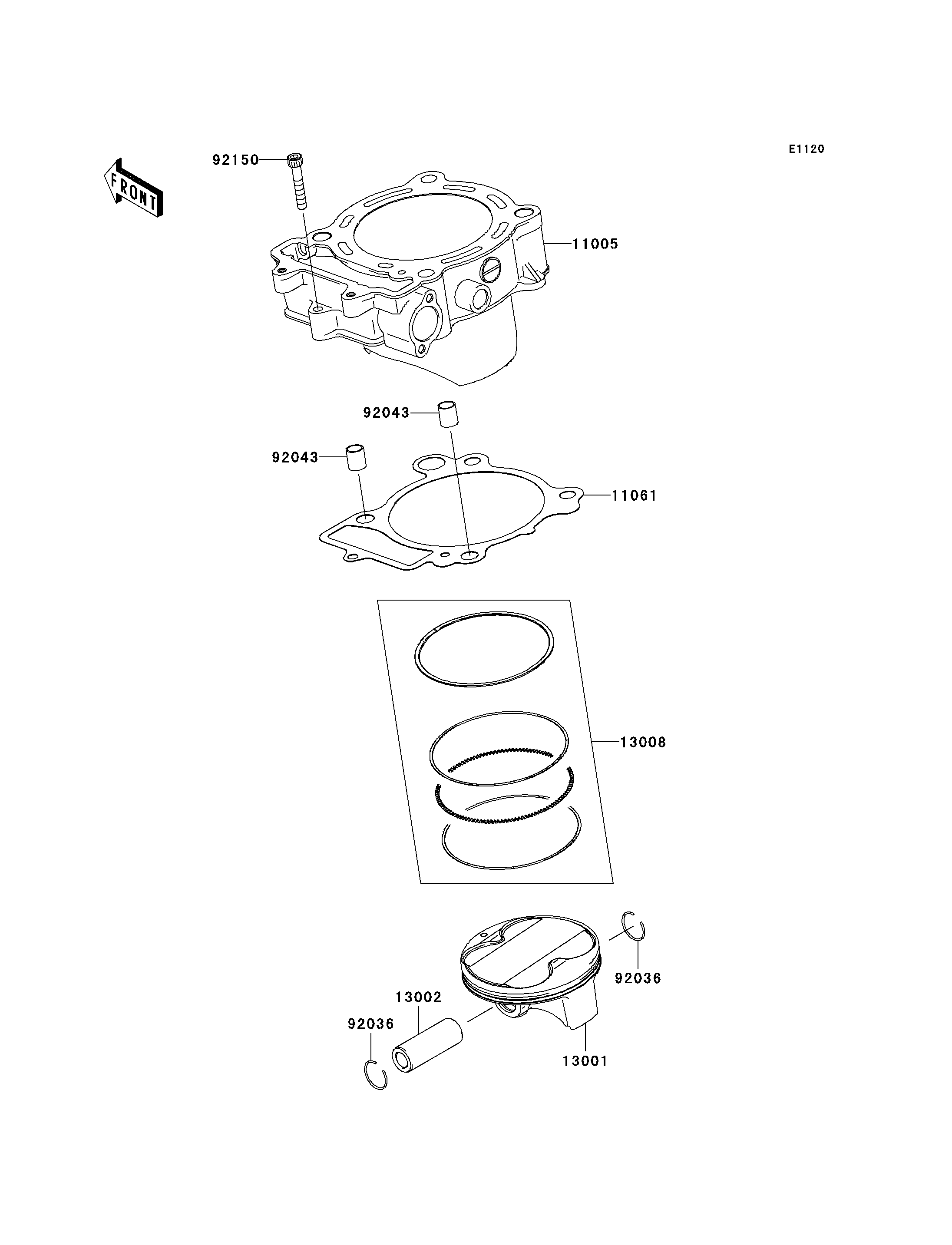

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CYLINDER-ENGINE 11005 11005-0109 1
GASKET,CYLINDER BASE 11061 11061-0353 1
PISTON-ENGINE 13001 13001-0110 1
PIN-PISTON 13002 13002-0016 1
RING-SET-PISTON 13008 13008-0018 1
RING-SNAP,PISTON PIN 92036 92036-008 2
PIN,12X14 92043 92043-4009 2
BOLT,SOCKET,6X35 92150 92150-1875 1
