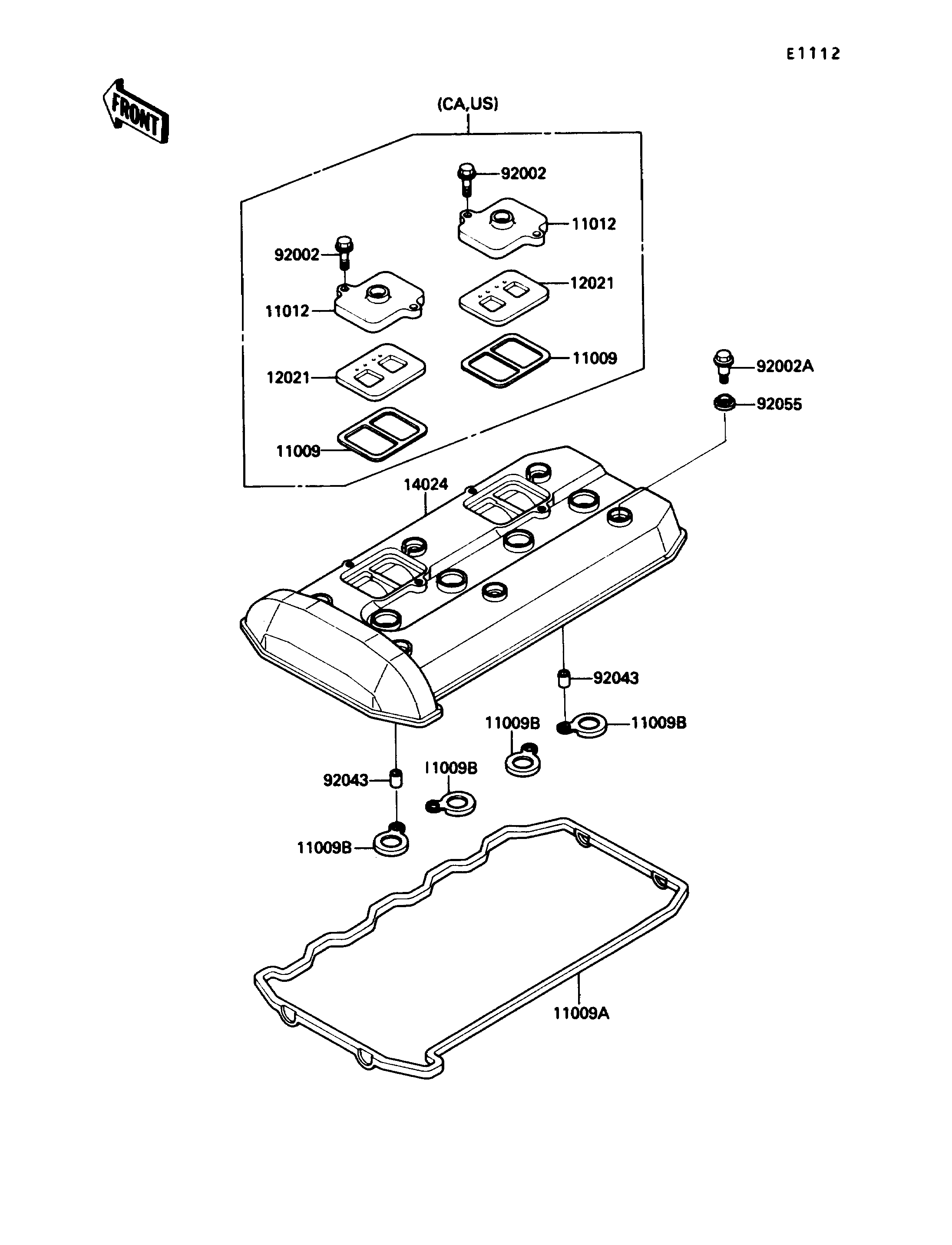

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,REED VALVE 11009 11009-1379 2
GASKET,HEAD COVER 11009A 11009-1724 1
GASKET,SPARK PLUG 11009B 11009-1725 4
CAP,REED VALVE 11012 11012-1532 2
VALVE-ASSY-REED 12021 12021-1053 2
COVER,HEAD 14024 14024-1628 1
BOLT,6X22 92002 92002-1068 4
BOLT,HEAD COVER 92002A 92002-1504 6
PIN,8.2X10X14 92043 92043-1264 4
RING-O,HEAD COVER BOLT 92055 92055-1352 6
