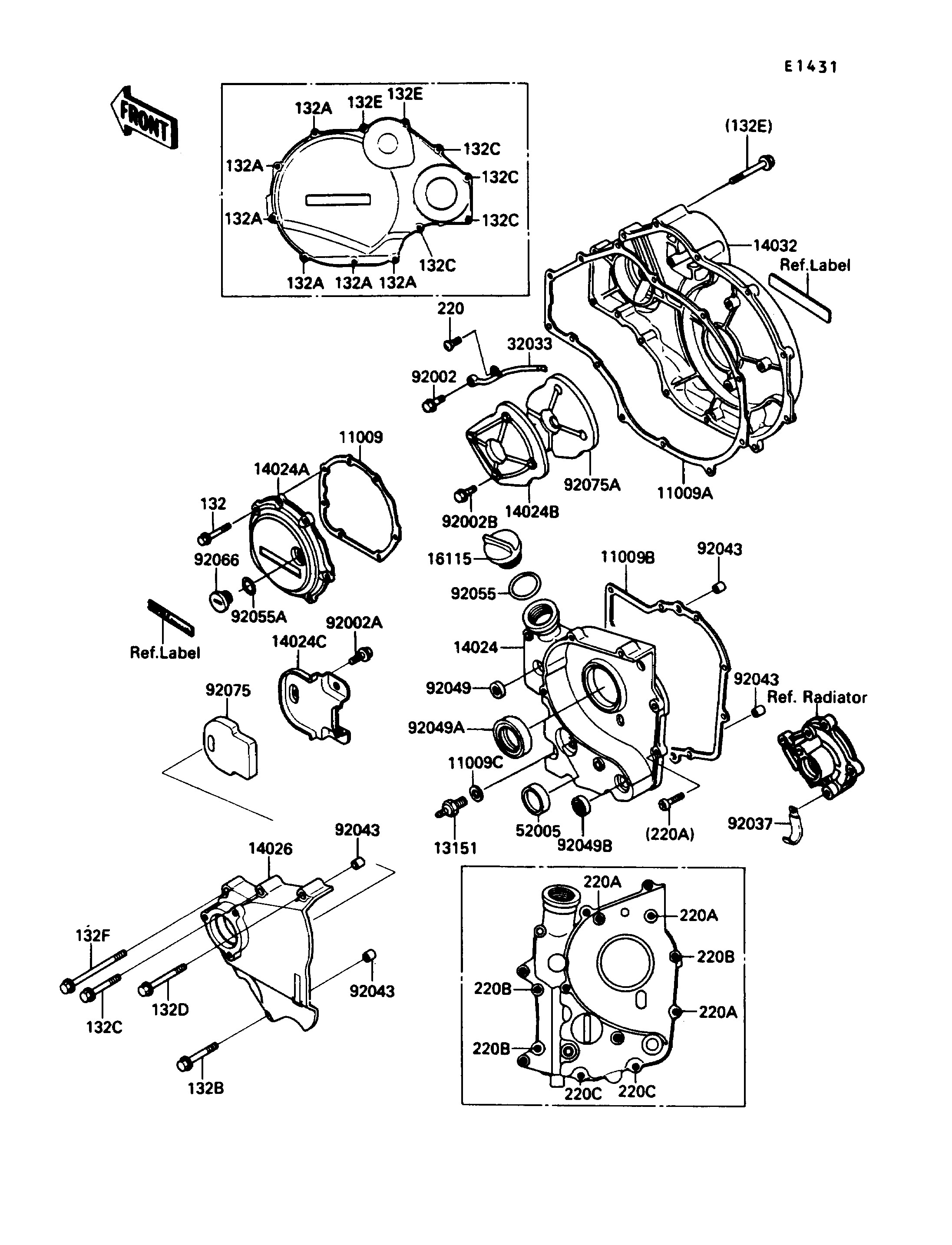

1990 Ninja® ZX™-10 - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,COVER,LH 11009 11009-1387 1
GASKET,CLUTCH COVER 11009A 11009-1388 1
GASKET,TRANSMISSION COVER 11009B 11009-1391 1
GASKET,10.5X16X1,DRAIN PLUG 11009C 92065-058 1
SWITCH-COMP,NEUTRAL 13151 13151-1007 1
COVER,TRANSMISSION 14024 14024-1716 1
COVER,LH 14024A 14024-1721 1
COVER,BATTERY 14024B 14024-1740 1
COVER,SOUND ARRESTER 14024C 14025-1979 1
COVER-CHAIN 14026 14026-1140 1
COVER-CLUTCH 14032 14032-1194 1
CAP-OIL FILLER 16115 16115-1009 1
PIPE,CLUTCH COVER 32033 32033-1204 1
GAUGE,OIL LEVEL 52005 52005-1057 1
BOLT,BANJO,8X20 92002 92001-1855 1
BOLT,6X10 92002A 92002-1449 3
BOLT,6X10 92002B 92002-1541 4
CLAMP,WIRING HARNESS 92037 92037-1069 1
PIN,DOWEL,6.3X8X14 92043 92042-007 4
SEAL-OIL,SD-8187 92049 92049-1017 1
SEAL-OIL,AE2343F0 92049A 92049-1070 1
SEAL-OIL,TB13205 92049B 92049-1186 1
RING-O,31.5X2.6 92055 92055-049 1
RING-O 92055A 92055-1146 1
PLUG,COVER 92066 92066-1163 1
DAMPER,CHAIN 92075 92075-1666 1
DAMPER,SOUND ARRESTER 92075A 92075-1708 1
BOLT-FLANGED-SMALL 132 132J0620 7
BOLT-FLANGED-SMALL 132A 132J0625 6
BOLT-FLANGED-SMALL 132B 132J0635 1
BOLT-FLANGED-SMALL,6X40 132C 132J0640 5
BOLT-FLANGED-SMALL 132D 132J0650 1
BOLT-FLANGED-SMALL,6X55 132E 132J0655 2
BOLT-FLANGED-SMALL 132F 132J0680 1
SCREW-PAN-CROS 220 220B0510 1
SCREW-PAN-CROS,6X20,WHITE 220A 220B0620 3
SCREW-PAN-CROS,6X25 220B 220B0625 3
SCREW-PAN-CROS,6X50 220C 220B0650 2
