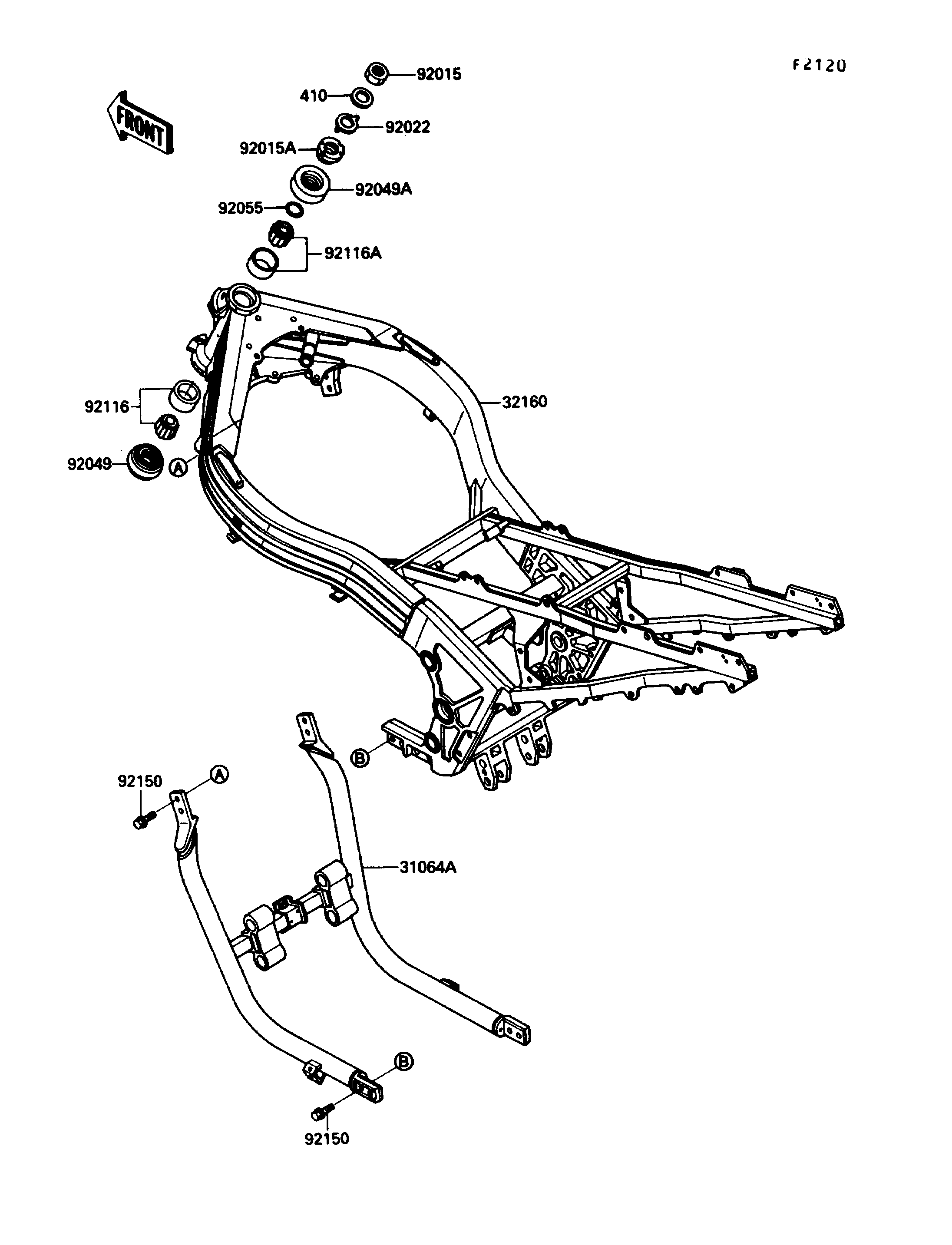

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIPE-COMP,SIDE FRAME,SILVER 31064A 31064-1100-CE 1
FRAME-COMP,AL,SILVER NO.25 32160 32002-1994-CE 1
NUT,18MM 92015 92015-1404 1
NUT,25MM,T=12 92015A 92015-1546 1
WASHER,CLAW,18.5X30X2.3 92022 92022-1555 1
SEAL-OIL,XMHE36X52X4J 92049 92049-1162 1
SEAL-OIL,XMH33 70 6.4J-A 92049A 92049-1313 1
RING-O,24.7MM 92055 92055-1160 1
BEARING-ROLLER,HR320/28XJ 92116 92116-1009 1
BEARING-ROLLER,HI-CAP32005JR-1 92116A 92116-1056 1
BOLT,FLANGED,10X30 92150 92150-1174 8
W-PLAIN-S 410 410F1800 1
