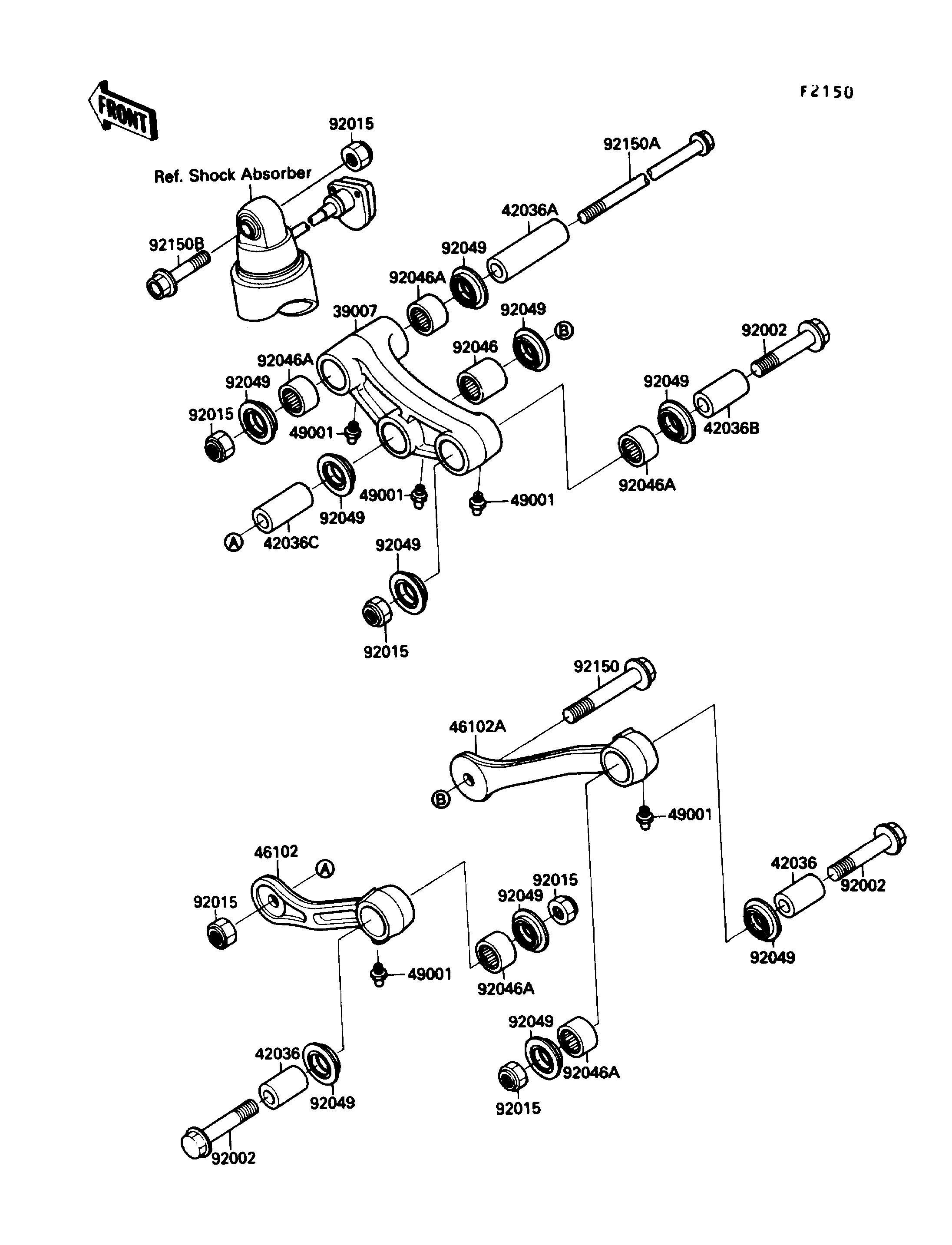

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM-SUSP,UNI TRAK 39007 39007-1107 1
SLEEVE,ARM,RR 42036 42036-1077 2
SLEEVE,ARM,CNT 42036A 42036-1079 1
SLEEVE,12.1X20X40 42036B 42036-1108 1
SLEEVE,12.1X20X44 42036C 42036-1129 1
ROD,SUSPENSION,LH 46102 46102-1248 1
ROD,SUSPENSION,RH 46102A 46102-1249 1
NIPPLE-GREASE 49001 49001-1051 5
BOLT,FLANGED,12X60 92002 92002-1464 3
NUT,LOCK,12MM,BLACK 92015 92015-1190 6
BEARING-NEEDLE,BM202726 92046 92046-1110 1
BEARING-NEEDLE,BM202715 92046A 92046-1112 5
SEAL-OIL,ARM,CNT 92049 92049-1109 10
BOLT,FLANGED,12X70 92150 92150-1115 1
BOLT,FLANGED,12X165 92150A 92150-1116 1
BOLT,FLANGED,12X55 92150B 92150-1191 1
