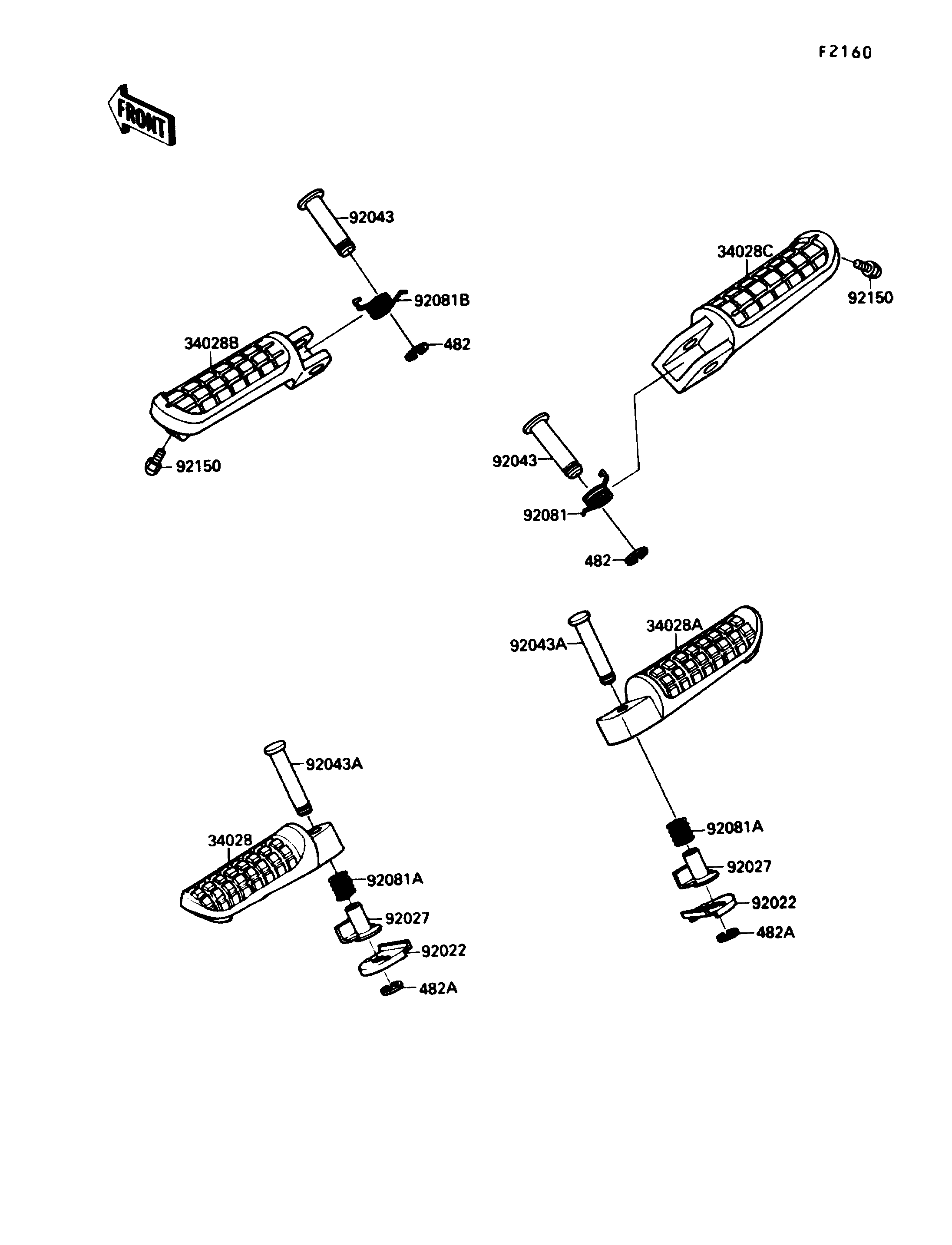

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STEP,RR,LH 34028 34028-1191 1
STEP,RR,RH 34028A 34028-1192 1
STEP,FR,LH 34028B 34028-1208 1
STEP,FR,RH 34028C 34028-1209 1
WASHER,STEP,RR 92022 92022-1507 2
COLLAR,STEP 92027 92027-1732 2
PIN,12X42.5 92043 92043-1145 2
PIN,6X38.5 92043A 92043-1238 2
SPRING,STEP RETURN,RH 92081 92081-1587 1
SPRING,STEP,RR 92081A 92081-1612 2
SPRING,STEP RETURN,LH 92081B 92081-1733 1
BOLT,BANK SENSOR 92150 92150-1114 2
CIRCLIP-TYPE-E,10MM 482 482L0100 2
CIRCLIP-TYPE-E,5MM 482A 482L5000 2
