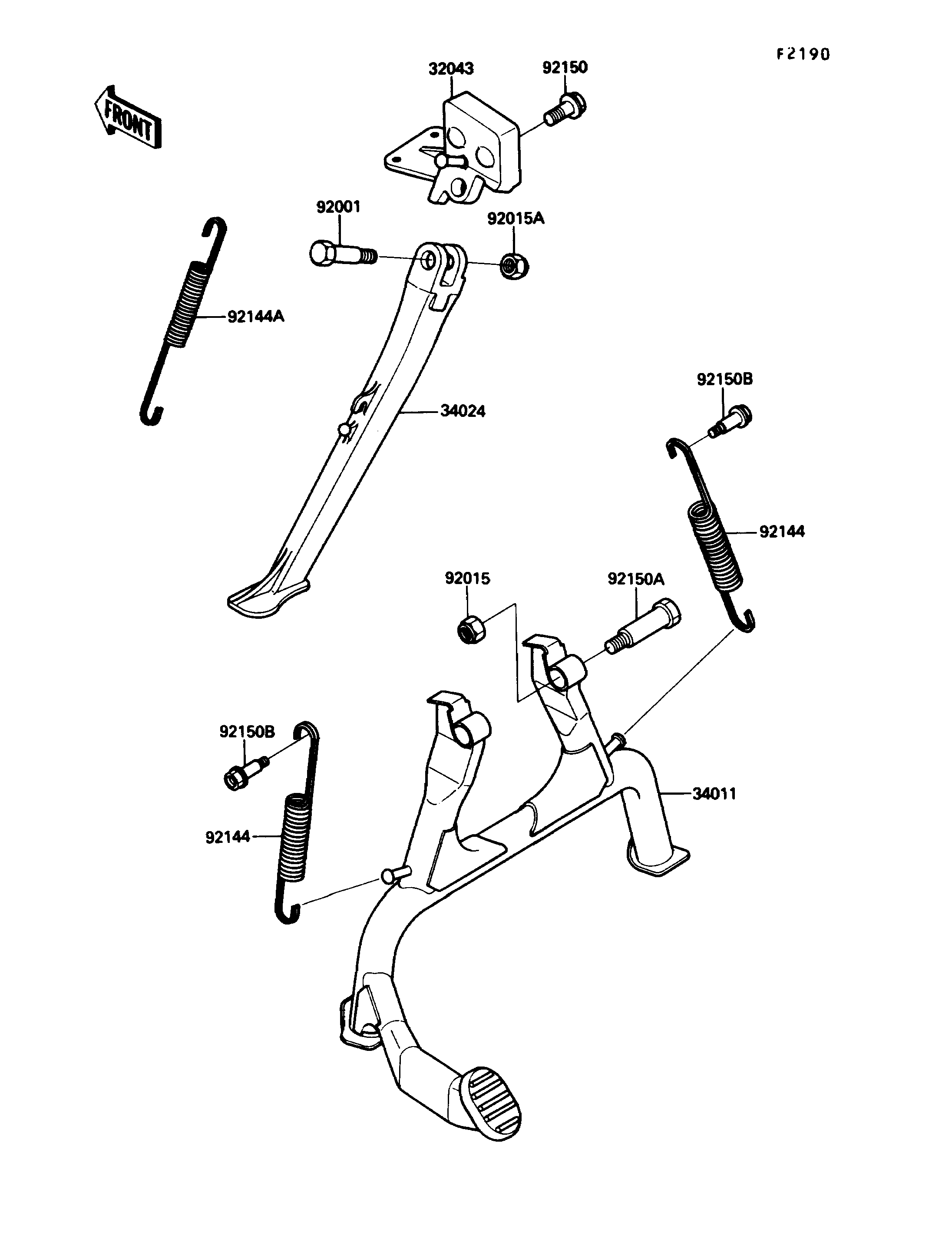

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-STAND,SIDE,SILVER 32043 32043-1320-CE 1
STAND-CENTER 34011 34011-1142 1
STAND-SIDE,SILVER NO.25 34024 34024-1249-CE 1
BOLT,SIDE STAND 92001 92003-079 1
NUT,LOCK,10MM,BLACK 92015 92015-1188 2
NUT,LOCK,10MM 92015A 92019-021 1
SPRING,CENTER STAND 92144 92144-1334 2
SPRING,SIDE STAND 92144A 92144-1335 1
BOLT,FLANGED,10X25 92150 92150-1052 2
BOLT,CENTER STAND,10MM 92150A 92150-1112 2
BOLT,6MM 92150B 92150-1113 2
