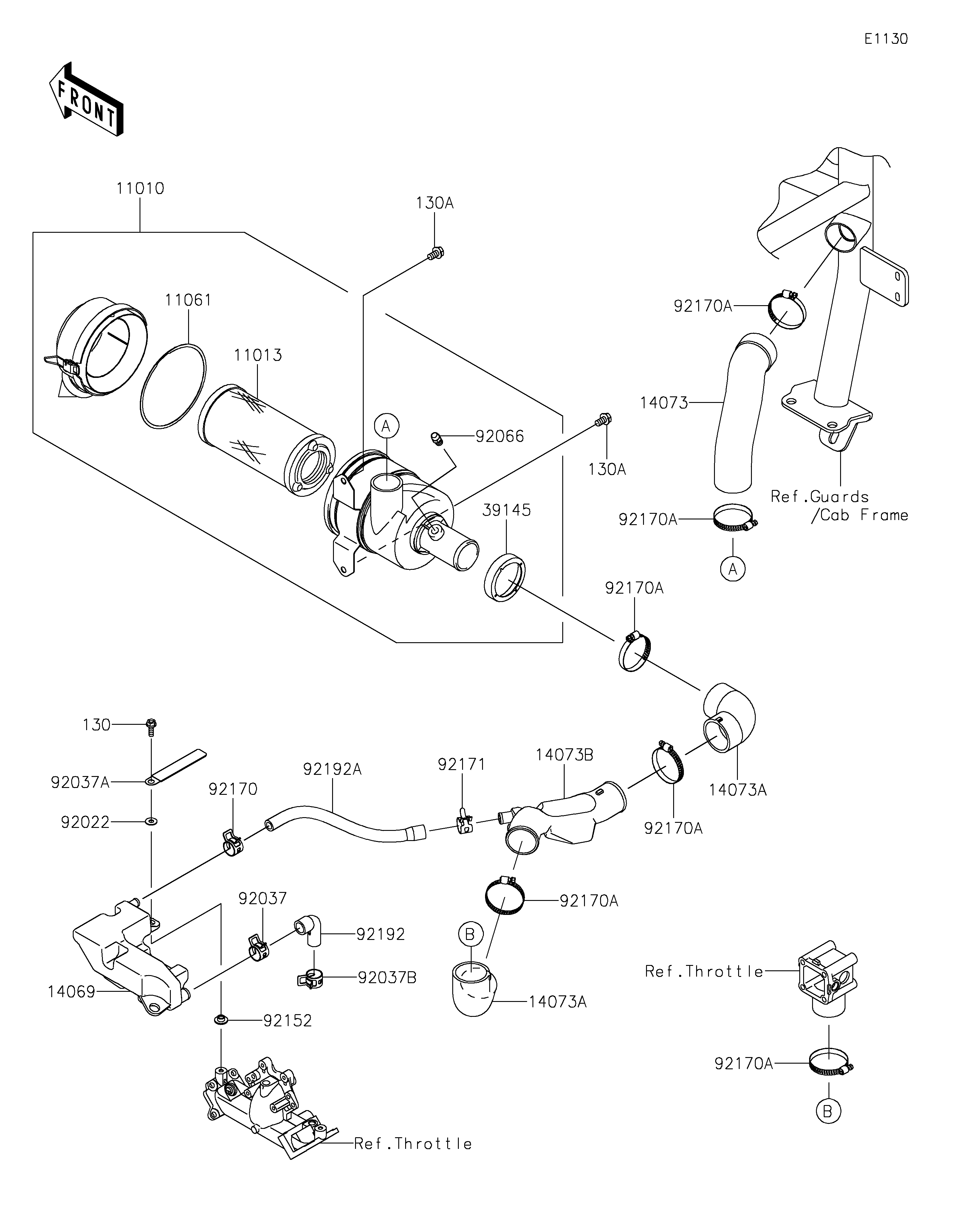

2021 MULE™ 4000 - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
11010
11013
11061
14069
14073
14073A
14073A
14073B
39145
92022
92037
92037A
92037B
92066
92152
92170
92170A
92170A
92170A
92170A
92170A
92170A
92171
92192
92192A
130
130A
130A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER-ASSY-AIR 11010 11010-0885 1
ELEMENT-AIR FILTER 11013 11013-1290 1
GASKET,AIR FILTER 11061 11061-1078 1
BREATHER 14069 14069-0018 1
DUCT,RR BAR-A/C 14073 14073-0236 1
DUCT 14073A 14073-0773 2
DUCT 14073B 14073-0784 1
TRIM-SEAL 39145 39145-1133 1
WASHER,6.5X16X1.0 92022 92022-1093 1
CLAMP,HOSE CLIP 92037 92037-1460 1
CLAMP,HARNESS,L=100 92037A 92037-1636 1
CLAMP 92037B 92037-1678 1
PLUG 92066 92066-0914 1
COLLAR 92152 92152-2069 1
CLAMP 92170 92170-1491 1
CLAMP 92170A 92170-1674 6
CLAMP,18.8MM 92171 92171-2056 1
TUBE,CRANKCASE-BREATHER 92192 92192-1285 1
TUBE,BREATHER-INTAKE DUCT 92192A 92192-1855 1
BOLT-FLANGED,6X18 130 130BA0618 1
BOLT-FLANGED,8X14 130A 130BB0814 2
