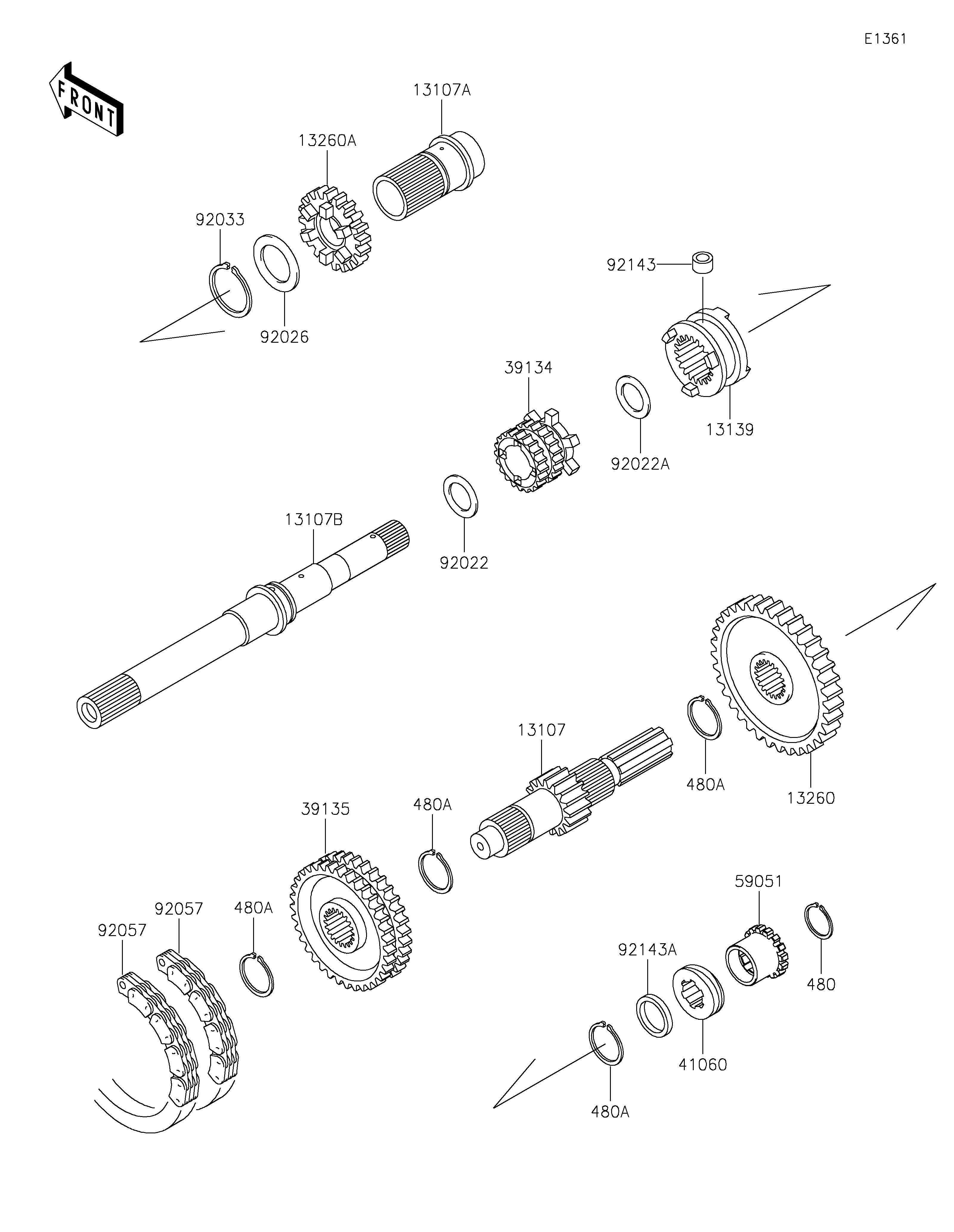

2021 MULE™ 4000 - Transmission

DOWNLOAD PDF
SELECT A NEW PART
13107
13107A
13107B
13139
13260
13260A
39134
39135
41060
59051
92022
92022A
92026
92033
92057
92057
92143
92143A
480
480A
480A
480A
480A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT,COUNTER 13107 13107-0191 1
SHAFT,INPUT OUTER 13107A 13107-1315 1
SHAFT,INPUT 13107B 13107-1471 1
SHIFTER,FR/RR 13139 13139-1072 1
GEAR,OUTPUT REVERSE,51T 13260 13260-1288 1
GEAR,INPUT 28T 13260A 13260-1462 1
SPROCKET-DRIVE,20T 39134 39134-1055 1
SPROCKET-DRIVEN,41T 39135 39135-1055 1
GEAR-METER SCREW 41060 41060-1147 1
GEAR-SPUR,15T 59051 59051-0086 1
WASHER,25.3X33X1 92022 92022-1109 1
WASHER,22.3X33X1.0 92022A 92022-1573 1
SPACER,35.3X44X0.5 92026 92026-1375 1
RING-SNAP 92033 92033-1269 1
CHAIN,REVERSE,81RH2520,54L 92057 92057-1364 2
COLLAR,8X14X10.5 92143 92143-1497 1
COLLAR,25X32X4.5 92143A 92143-1597 1
CIRCLIP-TYPE-C,25MM 480 480J2500 1
CIRCLIP-TYPE-C,30MM 480A 480J3000 4
