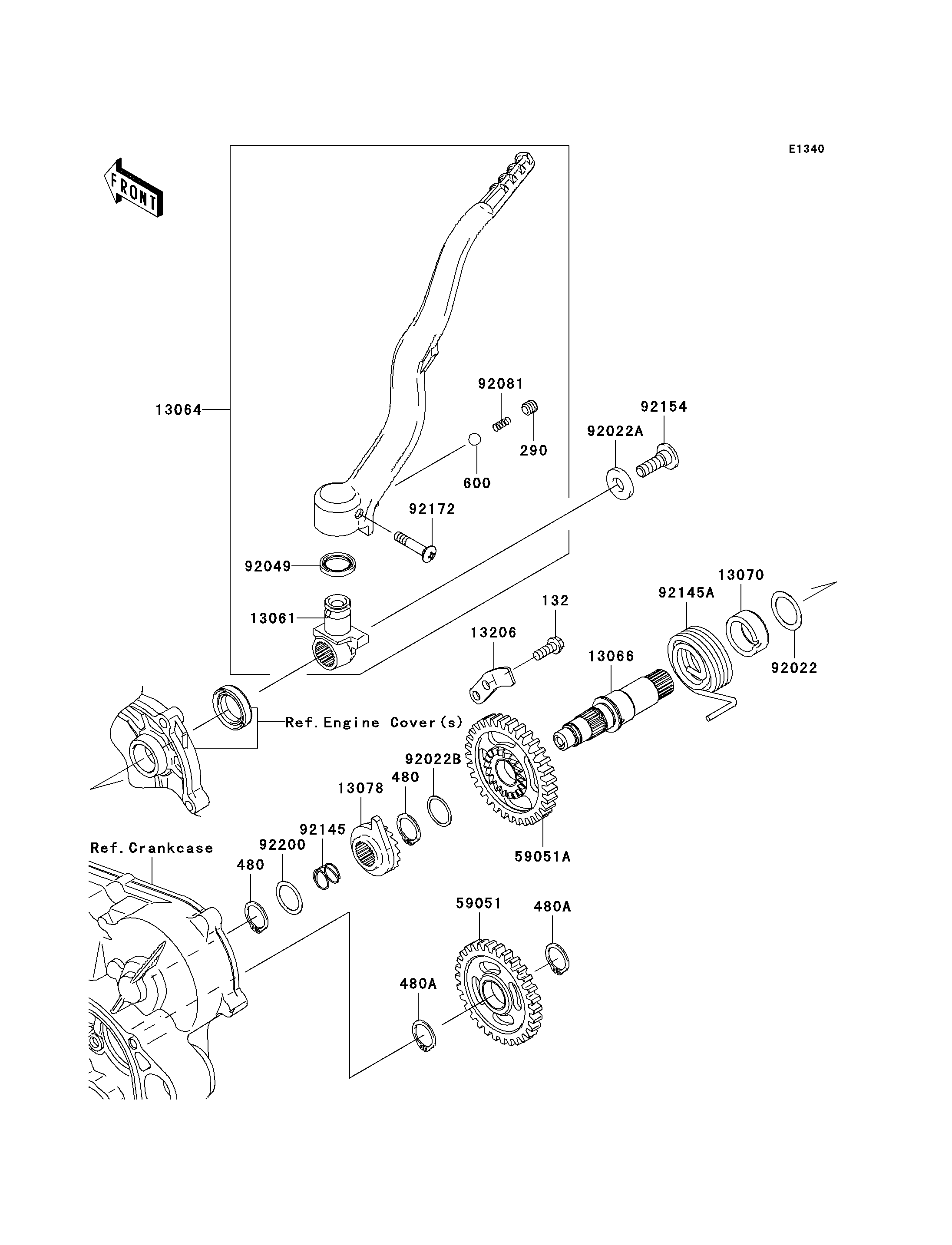

Parts Diagrams |
132
290
480
480
480A
480A
600
13061
13064
13066
13070
13078
13206
59051
59051A
92022
92022A
92022B
92049
92081
92145
92145A
92154
92172
92200
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL,6X16 | 132 | 132BA0616 | 1 | ||
SCREW-SET-SOCKET,8X8 | 290 | 290CA0808 | 1 | ||
CIRCLIP-TYPE-C,18MM | 480 | 480J1800 | 2 | ||
CIRCLIP-TYPE-C,19MM | 480A | 480J1900 | 2 | ||
BALL-STEEL,1/4" | 600 | 600A0800 | 1 | ||
BOSS | 13061 | 13061-0146 | 1 | ||
LEVER-ASSY-KICK | 13064 | 13064-0051 | 1 | ||
SHAFT-KICK | 13066 | 13066-0010 | 1 | ||
GUIDE,KICK SPRING | 13070 | 13070-1378 | 1 | ||
RATCHET | 13078 | 13078-0558 | 1 | ||
GUIDE-KICK | 13206 | 13206-0007 | 1 | ||
GEAR-SPUR,30T | 59051 | 59051-0030 | 1 | ||
GEAR-SPUR,33T | 59051A | 59051-0046 | 1 | ||
WASHER,20.3X28.0X0.5 | 92022 | 92022-1885 | 1 | ||
WASHER,10X22X3.2 | 92022A | 92022-1944 | 1 | ||
WASHER,18.3X22X0.5 | 92022B | 92022-271 | 1 | ||
SEAL-OIL,KICK PEDAL | 92049 | 92049-1387 | 1 | ||
SPRING,KICK PEDAL | 92081 | 92081-020 | 1 | ||
SPRING | 92145 | 92145-0162 | 1 | ||
SPRING,RETURN | 92145A | 92145-0297 | 1 | ||
BOLT,SOCKET,8X25 | 92154 | 92154-0181 | 1 | ||
SCREW,6X30 | 92172 | 92172-1088 | 1 | ||
WASHER,18.3X24X0.5 | 92200 | 92200-0075 | 1 |
BOLT-FLANGED-SMALL,6X16 | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW-SET-SOCKET,8X8 | |
REF # | 290 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CIRCLIP-TYPE-C,18MM | |
REF # | 480 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CIRCLIP-TYPE-C,19MM | |
REF # | 480A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BALL-STEEL,1/4" | |
REF # | 600 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOSS | |
REF # | 13061 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-ASSY-KICK | |
REF # | 13064 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT-KICK | |
REF # | 13066 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE,KICK SPRING | |
REF # | 13070 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RATCHET | |
REF # | 13078 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-KICK | |
REF # | 13206 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR-SPUR,30T | |
REF # | 59051 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR-SPUR,33T | |
REF # | 59051A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,20.3X28.0X0.5 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,10X22X3.2 | |
REF # | 92022A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,18.3X22X0.5 | |
REF # | 92022B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,KICK PEDAL | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,KICK PEDAL | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 92145 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,RETURN | |
REF # | 92145A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,8X25 | |
REF # | 92154 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,6X30 | |
REF # | 92172 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,18.3X24X0.5 | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
