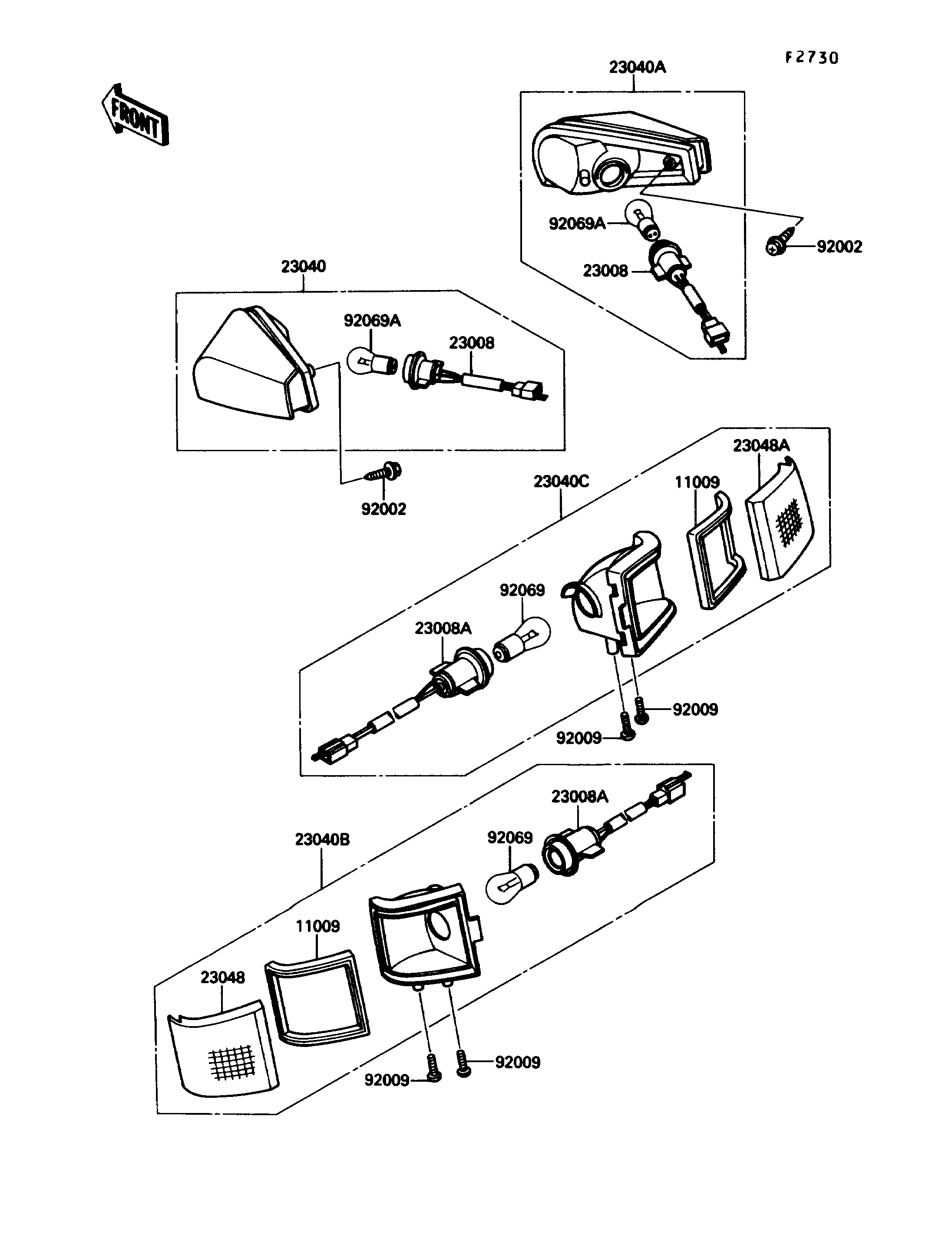

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,SIGNAL LAMP LENS 11009 11009-1747 2
SOCKET-ASSY,SIGNAL LAMP,FR 23008 23008-1262 2
SOCKET-ASSY,SIGNAL LAMP,RR 23008A 23008-1263 2
LAMP-SIGNAL,FR,LH 23040 23040-1185 1
LAMP-SIGNAL,FR,RH 23040A 23040-1186 1
LAMP-SIGNAL,RR,LH 23040B 23040-1187 1
LAMP-SIGNAL,RR,RH 23040C 23040-1188 1
LENS-SIGNAL LAMP,RR,LH 23048 23048-1091 1
LENS-SIGNAL LAMP,RR,RH 23048A 23048-1092 1
BOLT,TAPPING,5X16 92002 92002-1921 2
SCREW,TAPPING,5X14 92009 92009-1197 4
BULB,12V 32CP(23W) 92069 92069-055 2
BULB,12V 32/3CP(23/8W) 92069A 92069-060 2
