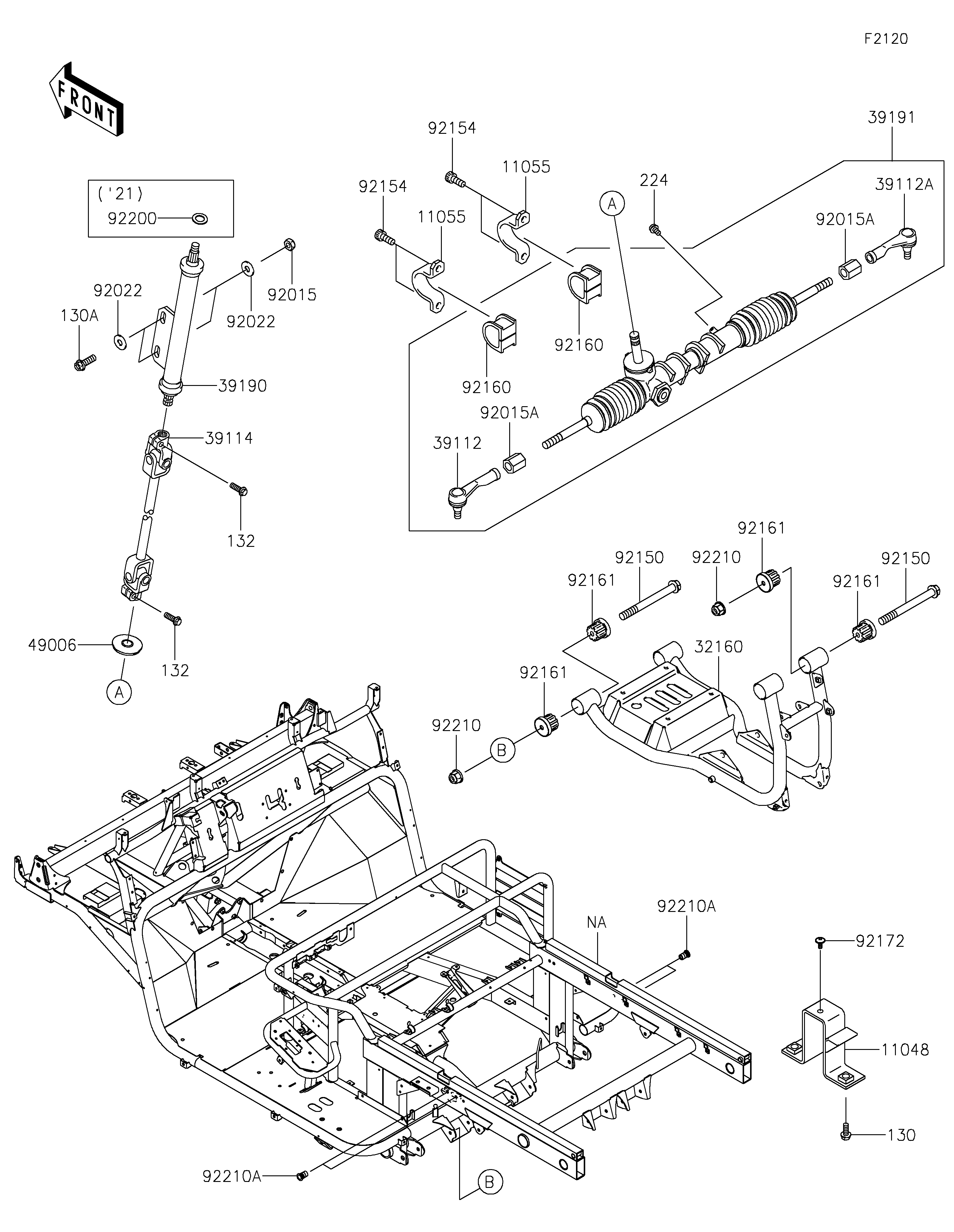

2021 MULE™ 4000 - Frame

DOWNLOAD PDF
SELECT A NEW PART
11048
11055
11055
32160
39112
39112A
39114
39190
39191
49006
92015
92015A
92015A
92022
92022
92150
92150
92154
92154
92160
92160
92161
92161
92161
92161
92172
92200
92210
92210
92210A
92210A
130
130A
132
132
224
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,REAR FRAME 11048 11048-1245 1
BRACKET,STEERING GEAR 11055 11055-1240 2
FRAME-COMP,RR 32160 32160-0004 1
RODEND-TIE,STEERING GEAR,LH 39112 39112-1068 1
RODEND-TIE,STEERING GEAR,RH 39112A 39112-1069 1
SHAFT-COMP-STRG 39114 39114-0009 1
SHAFT-ASSY-STEERING 39190 39190-0005 1
GEAR-ASSY-STEERING 39191 39191-0021 1
BOOT,STEERING SHAFT,LWR 49006 49006-1255 1
NUT,LOCK,10MM,BLACK 92015 92015-1189 2
NUT 92015A 92015-1864 2
WASHER,10.5X26X2.3 92022 92022-044 4
BOLT,FLANGED,10X100 92150 92150-1731 4
BOLT,SOCKET,10X23 92154 92154-1434 4
DAMPER,STEERING GEAR 92160 92160-1084 2
DAMPER 92161 92161-0800 8
SCREW,6X14 92172 92172-0004 1
WASHER,15X25X1.6 92200 92200-0460 1
NUT,LOCK,FLANGED,10MM 92210 92210-0276 4
NUT,POP,6MM,L=15 92210A 92210-1397 4
BOLT-FLANGED,8X20 130 130BA0820 2
BOLT-FLANGED,10X30 130A 130BA1030 2
BOLT-FLANGED-SMALL,8X25 132 132BA0825 2
SCREW-PAN-WP-CROS,5X8 224 224AA0508 1
