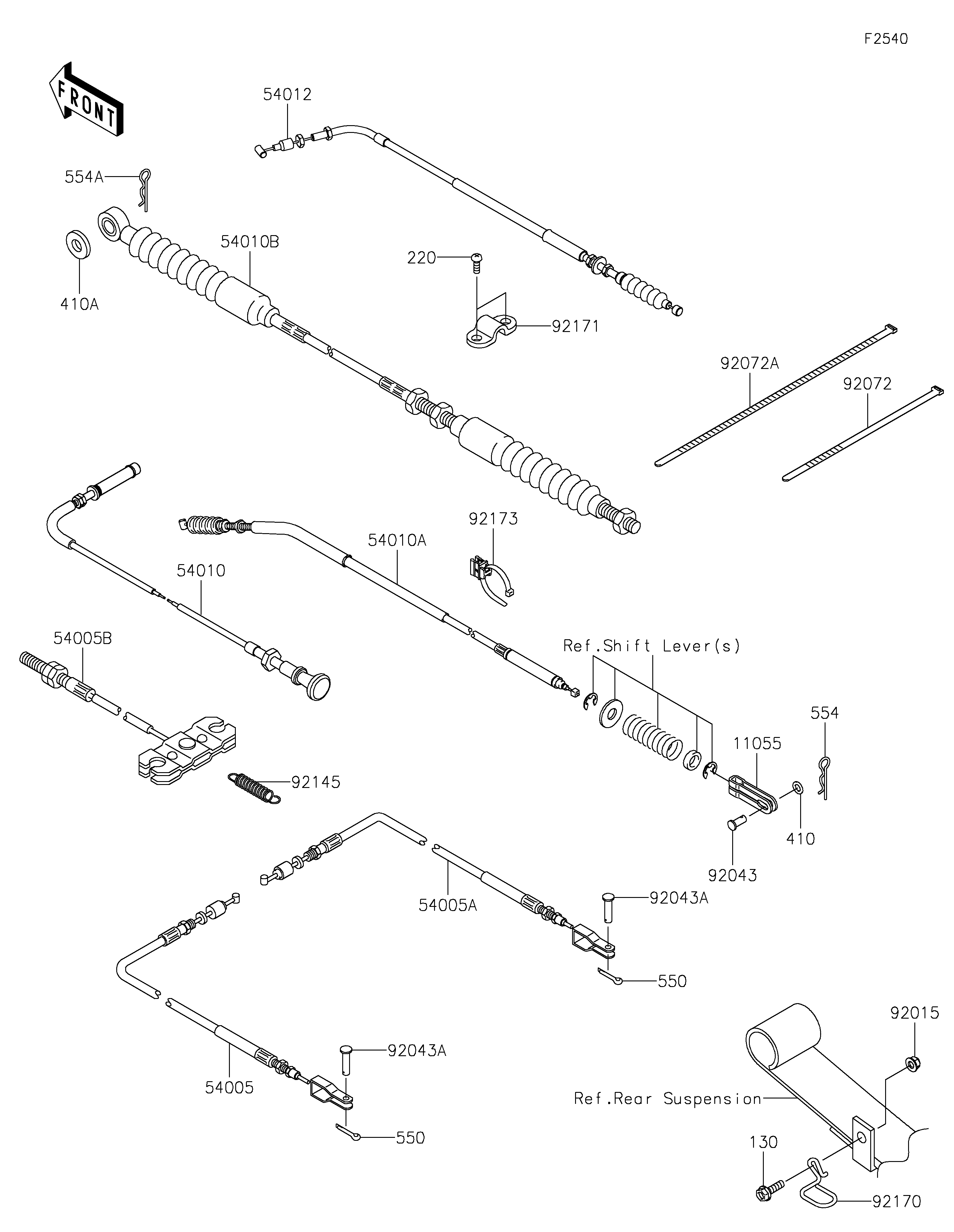

2021 MULE™ 4000 - Cables

DOWNLOAD PDF
SELECT A NEW PART
11055
54005
54005A
54005B
54010
54010A
54010B
54012
92015
92043
92043A
92043A
92072
92072A
92145
92170
92171
92173
130
220
410
410A
550
550
554
554A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,DIFF LOCK 11055 11055-7505 1
CABLE-BRAKE,PARKING,RR,LH 54005 54005-0306 1
CABLE-BRAKE,PARKING,RR,RH 54005A 54005-0307 1
CABLE-BRAKE,PARKING,FR 54005B 54005-1198 1
CABLE,HOOD 54010 54010-0600 1
CABLE,DIFF LOCK 54010A 54010-1120 1
CABLE,SHIFT CONTROL 54010B 54010-1121 1
CABLE-THROTTLE 54012 54012-0251 1
NUT,LOCK,FLANGED,6MM 92015 92015-1675 1
PIN,6X11 92043 92043-092 1
PIN 92043A 92043-1039 2
BAND,L=188 92072 92072-1239 7
BAND,L=368.3 92072A 92072-3872 2
SPRING 92145 92145-7506 1
CLAMP,CABLE 92170 92170-1372 1
CLAMP 92171 92171-1203 1
CLAMP,W/EDGE CLIP,DIA.6-45 92173 92173-1827 1
BOLT-FLANGED,6X20 130 130AA0620 1
SCREW-PAN-CROS,5X14 220 220AA0514 2
WASHER-PLAIN-SMALL 410 410AA0600 1
WASHER-PLAIN-SMALL,8MM 410A 410AA0800 1
PIN-COTTER,2.0X22 550 550AA2022 2
PIN-SNAP,1.2X21.2 554 554DA0600 1
PIN-SNAP 554A 554DA0800 1
