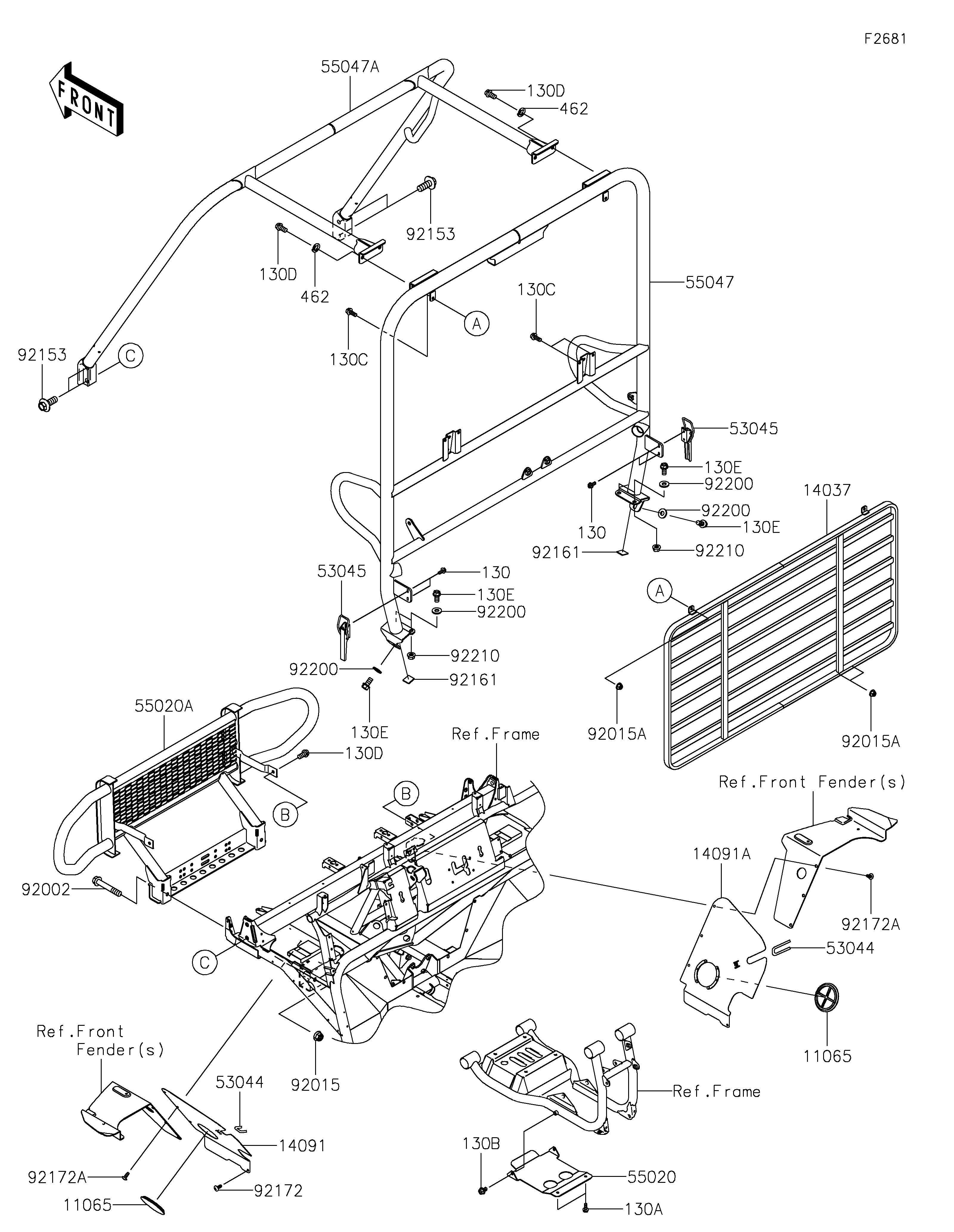

2021 MULE™ 4000 - Guards/Cab Frame

DOWNLOAD PDF
SELECT A NEW PART
11065
11065
14037
14091
14091A
53044
53044
53045
53045
55020
55020A
55047
55047A
92002
92015
92015A
92015A
92153
92153
92161
92161
92172
92172A
92172A
92200
92200
92200
92200
92210
92210
130
130
130A
130B
130C
130C
130D
130D
130D
130E
130E
130E
130E
462
462
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,F.BLACK 11065 11065-1053-6Z 2
SCREEN,REAR GUARD,T.BLACK 14037 14037-0810-388 1
COVER,FR,LH 14091 14091-1758 1
COVER,FR,RH 14091A 14091-1759 1
TRIM 53044 53044-1137 2
HOOK-ASSY 53045 53045-7501 2
GUARD,GEAR CASE 55020 55020-2295 1
GUARD,FR 55020A 55020-2299 1
BAR-COMP,T.BLACK 55047 55047-0384-388 1
BAR-COMP,FR,T.BLACK 55047A 55047-7514-388 1
BOLT,FLANGED,12X75 92002 92002-1661 2
NUT,LOCK,FLANGED,12MM 92015 92015-1433 2
NUT,FLANGED,LOCK,8MM 92015A 92015-1668 6
BOLT,FLANGED,14X36 92153 92153-1282 4
DAMPER 92161 92161-0020 2
SCREW,TAPPING,6X16 92172 92172-0739 2
SCREW,6X16 92172A 92172-0826 6
WASHER,10.2X23X2.5 92200 92200-0211 6
NUT,LOCK,FLANGED,10MM 92210 92210-0276 4
BOLT-FLANGED,6X14 130 130BA0614 4
BOLT-FLANGED,6X16 130A 130BA0616 2
BOLT-FLANGED,8X12 130B 130BA0812 2
BOLT-FLANGED,8X20 130C 130BA0820 6
BOLT-FLANGED,10X20 130D 130BA1020 6
BOLT-FLANGED,10X25 130E 130BA1025 6
WASHER-SPRING,10MM 462 462DA1000 4
