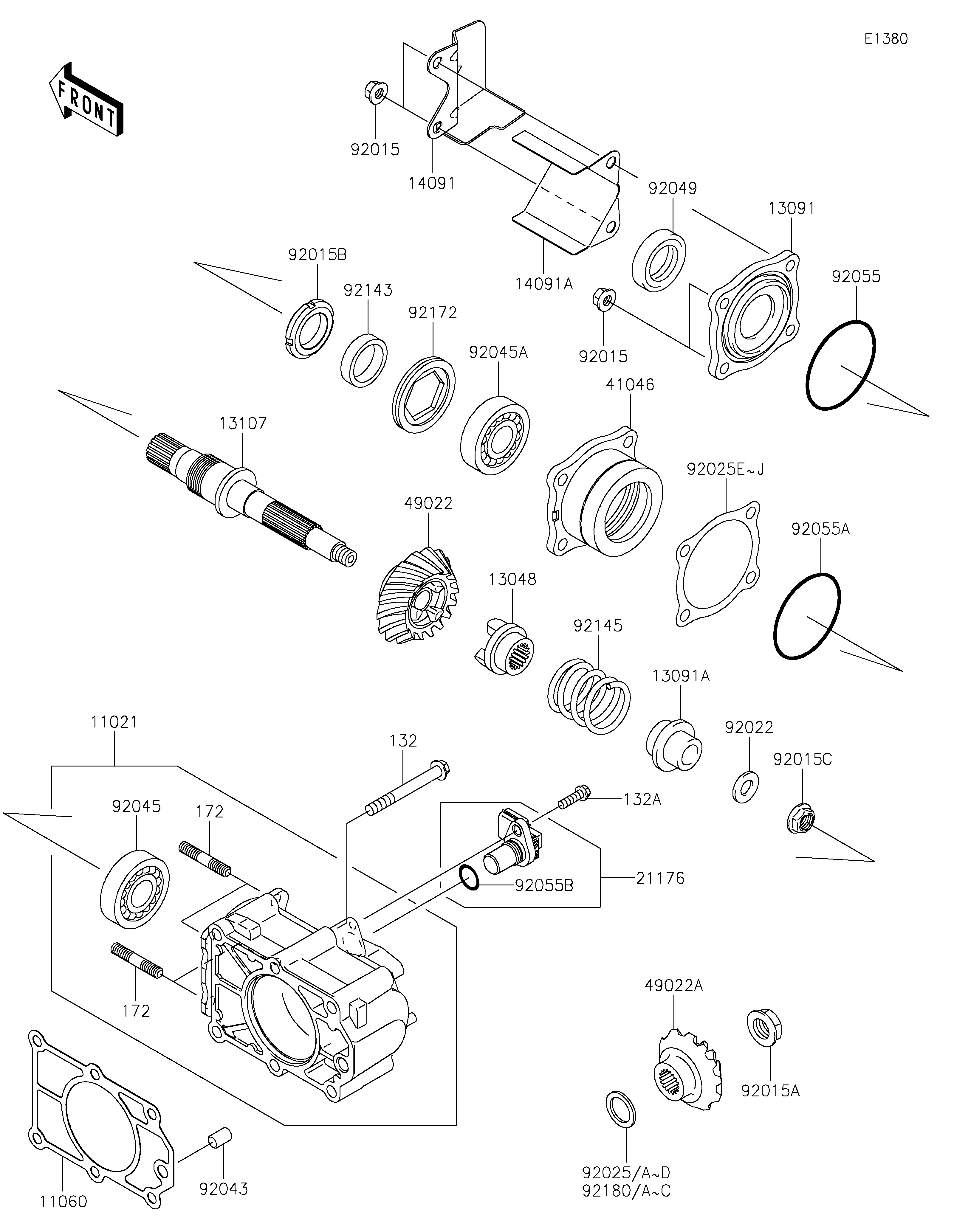

2021 MULE™ 4010 4x4® FE - Bevel Gear Case
11021
11021
11060
11060
13048
13048
13091
13091
13091A
13091A
13107
13107
14091
14091
14091A
14091A
21176
21176
41046
41046
49022
49022
49022A
49022A
92015
92015
92015
92015
92015A
92015A
92015B
92015B
92015C
92015C
92022
92022
92025
92025
92025A
92025A
92025B
92025B
92025C
92025C
92025D
92025D
92025E
92025E
92025F
92025F
92025G
92025G
92025H
92025H
92025I
92025I
92025J
92025J
92043
92043
92045
92045
92045A
92045A
92049
92049
92055
92055
92055A
92055A
92055B
92055B
92143
92143
92145
92145
92172
92172
92180
92180
92180A
92180A
92180B
92180B
92180C
92180C
132
132
132A
132A
172
172
172
172
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CASE-ASSY | 11021 | 11021-0025 | 1 | ||
GASKET,GEAR CASE | 11060 | 11060-1311 | 1 | ||
CAM-DAMPER | 13048 | 13048-1089 | 1 | ||
HOLDER,GEAR CASE | 13091 | 13091-1620 | 1 | ||
HOLDER,CAM DAMPER | 13091A | 13091-1810 | 1 | ||
SHAFT,BEVEL GEAR | 13107 | 13107-1523 | 1 | ||
COVER | 14091 | 14091-0939 | 1 | ||
COVER | 14091A | 14091-1672 | 1 | ||
SENSOR,SPEED | 21176 | 21176-1104 | 1 | ||
HOUSING-BEARING | 41046 | 41046-1083 | 1 | ||
GEAR-BEVEL,18T | 49022 | 49022-0614 | 1 | ||
GEAR-BEVEL,15T | 49022A | 49022-0615 | 1 | ||
NUT,8MM | 92015 | 92015-1402 | 4 | ||
NUT,16MM | 92015A | 92015-1581 | 1 | ||
NUT,30MM | 92015B | 92015-1858 | 1 | ||
NUT,12MM | 92015C | 92015-1920 | 1 | ||
WASHER,12X24X2.3 | 92022 | 92022-1890 | 1 | ||
SHIM,20.3X28X1.3 | 92025 | 92025-1533 | AR | ||
SHIM,20.3X28X0.7 | 92025A | 92025-1534 | AR | ||
SHIM,20.3X28X0.15 | 92025B | 92025-1573 | AR | ||
SHIM,20.3X28X0.20 | 92025C | 92025-1574 | AR | ||
SHIM,20.3X28X1.1 | 92025D | 92025-1575 | AR | ||
SHIM,T=1.00 | 92025E | 92025-1858 | AR | ||
SHIM,T=0.10 | 92025F | 92025-1859 | AR | ||
SHIM,T=0.15 | 92025G | 92025-1860 | AR | ||
SHIM,T=0.50 | 92025H | 92025-1861 | AR | ||
SHIM,T=0.80 | 92025I | 92025-1862 | AR | ||
SHIM,T=1.20 | 92025J | 92025-1863 | AR | ||
PIN,DOWEL,10X14 | 92043 | 92043-1037 | 1 | ||
BEARING-BALL,6205CM | 92045 | 92045-1200 | 1 | ||
BEARING-BALL,6006CM | 92045A | 92045-1201 | 1 | ||
SEAL-OIL | 92049 | 92049-1288 | 1 | ||
RING-O,66.5MM | 92055 | 92055-1287 | 1 | ||
RING-O,63.6X2.4 | 92055A | 92055-1294 | 1 | ||
RING-O | 92055B | 92055-1718 | 1 | ||
COLLAR | 92143 | 92143-1600 | 1 | ||
SPRING | 92145 | 92145-1542 | 1 | ||
SCREW,SET,58X10 | 92172 | 92172-0316 | 1 | ||
SHIM,20.3X28X0.8 | 92180 | 92180-0288 | AR | ||
SHIM,20.3X28X0.9 | 92180A | 92180-0289 | AR | ||
SHIM,20.3X28X1.0 | 92180B | 92180-0290 | AR | ||
SHIM,20.3X28X1.2 | 92180C | 92180-0291 | AR | ||
BOLT-FLANGED-SMALL,8X70 | 132 | 132BA0870 | 6 | ||
BOLT-FLANGED-SMALL,6X20 | 132A | 132BD0620 | 1 | ||
BOLT-STUD,8X30 | 172 | 172BA0830 | 4 |
CASE-ASSY | |
REF # | 11021 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,GEAR CASE | |
REF # | 11060 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAM-DAMPER | |
REF # | 13048 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER,GEAR CASE | |
REF # | 13091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER,CAM DAMPER | |
REF # | 13091A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT,BEVEL GEAR | |
REF # | 13107 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER | |
REF # | 14091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER | |
REF # | 14091A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SENSOR,SPEED | |
REF # | 21176 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOUSING-BEARING | |
REF # | 41046 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR-BEVEL,18T | |
REF # | 49022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR-BEVEL,15T | |
REF # | 49022A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,8MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT,16MM | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,30MM | |
REF # | 92015B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,12MM | |
REF # | 92015C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,12X24X2.3 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHIM,20.3X28X1.3 | |
REF # | 92025 |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,20.3X28X0.7 | |
REF # | 92025A |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,20.3X28X0.15 | |
REF # | 92025B |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,20.3X28X0.20 | |
REF # | 92025C |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,20.3X28X1.1 | |
REF # | 92025D |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=1.00 | |
REF # | 92025E |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=0.10 | |
REF # | 92025F |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=0.15 | |
REF # | 92025G |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=0.50 | |
REF # | 92025H |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=0.80 | |
REF # | 92025I |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,T=1.20 | |
REF # | 92025J |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
PIN,DOWEL,10X14 | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL,6205CM | |
REF # | 92045 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL,6006CM | |
REF # | 92045A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,66.5MM | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,63.6X2.4 | |
REF # | 92055A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O | |
REF # | 92055B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 92145 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,SET,58X10 | |
REF # | 92172 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHIM,20.3X28X0.8 | |
REF # | 92180 |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,20.3X28X0.9 | |
REF # | 92180A |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,20.3X28X1.0 | |
REF # | 92180B |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM,20.3X28X1.2 | |
REF # | 92180C |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL,8X70 | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL,6X20 | |
REF # | 132A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-STUD,8X30 | |
REF # | 172 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
