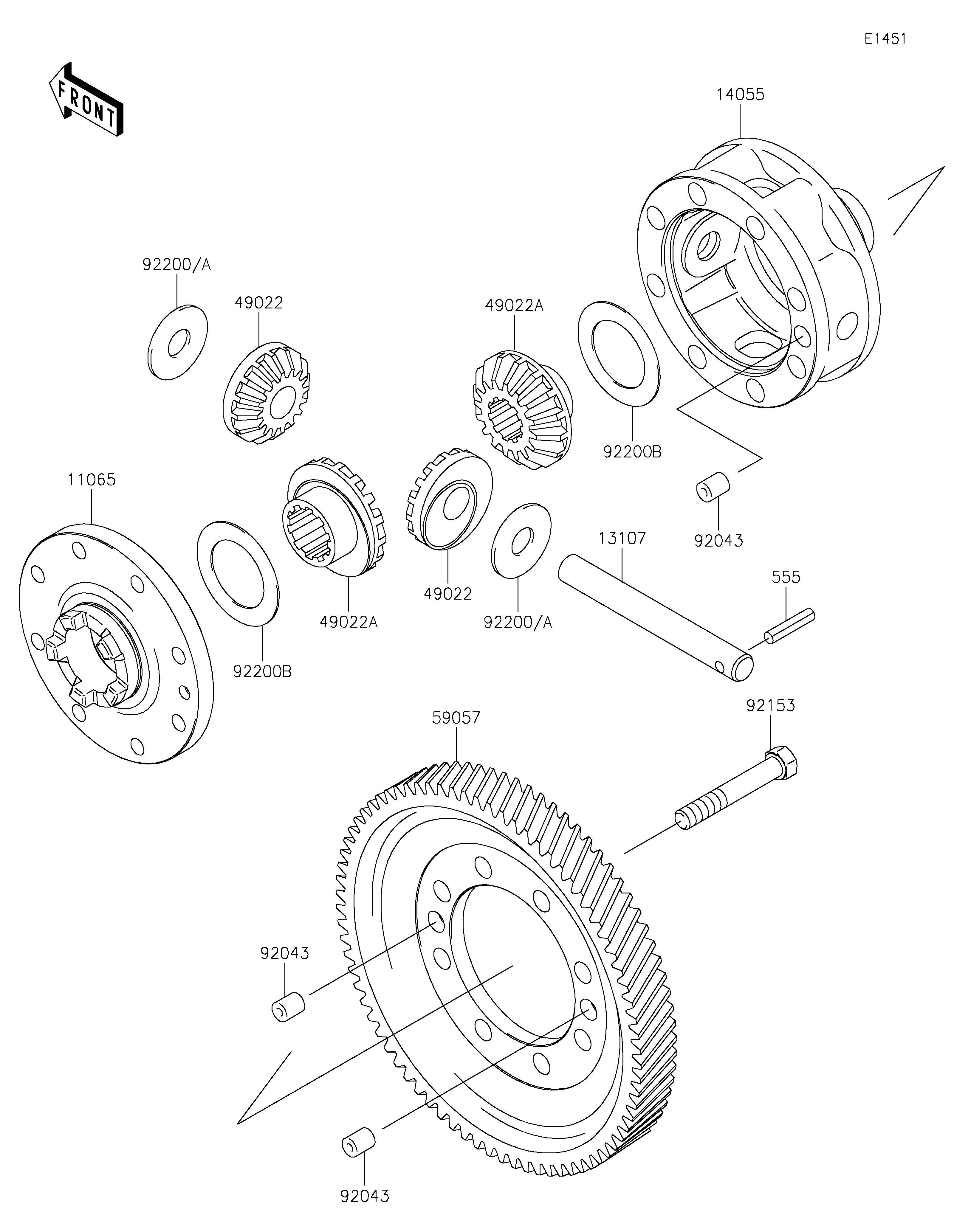

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,GEAR CASE 11065 11065-0033 1
SHAFT 13107 13107-0922 1
CASE-GEAR,DIFFERENTIAL 14055 14055-0003 1
GEAR-BEVEL,10T 49022 49022-1105 2
GEAR-BEVEL,16T 49022A 49022-1117 2
GEAR-HELICAL,DIFFERENTIAL 59057 59057-0002 1
PIN,10X12 92043 92043-0029 3
BOLT,10X63 92153 92153-0331 8
WASHER,14.5X38X1.2 92200 92200-0021 2
WASHER,14.5X38X1.0 92200A 92200-1044 AR
WASHER,35.5X54X1.0 92200B 92200-1045 2
PIN-SPRING 555 555A0525 1
