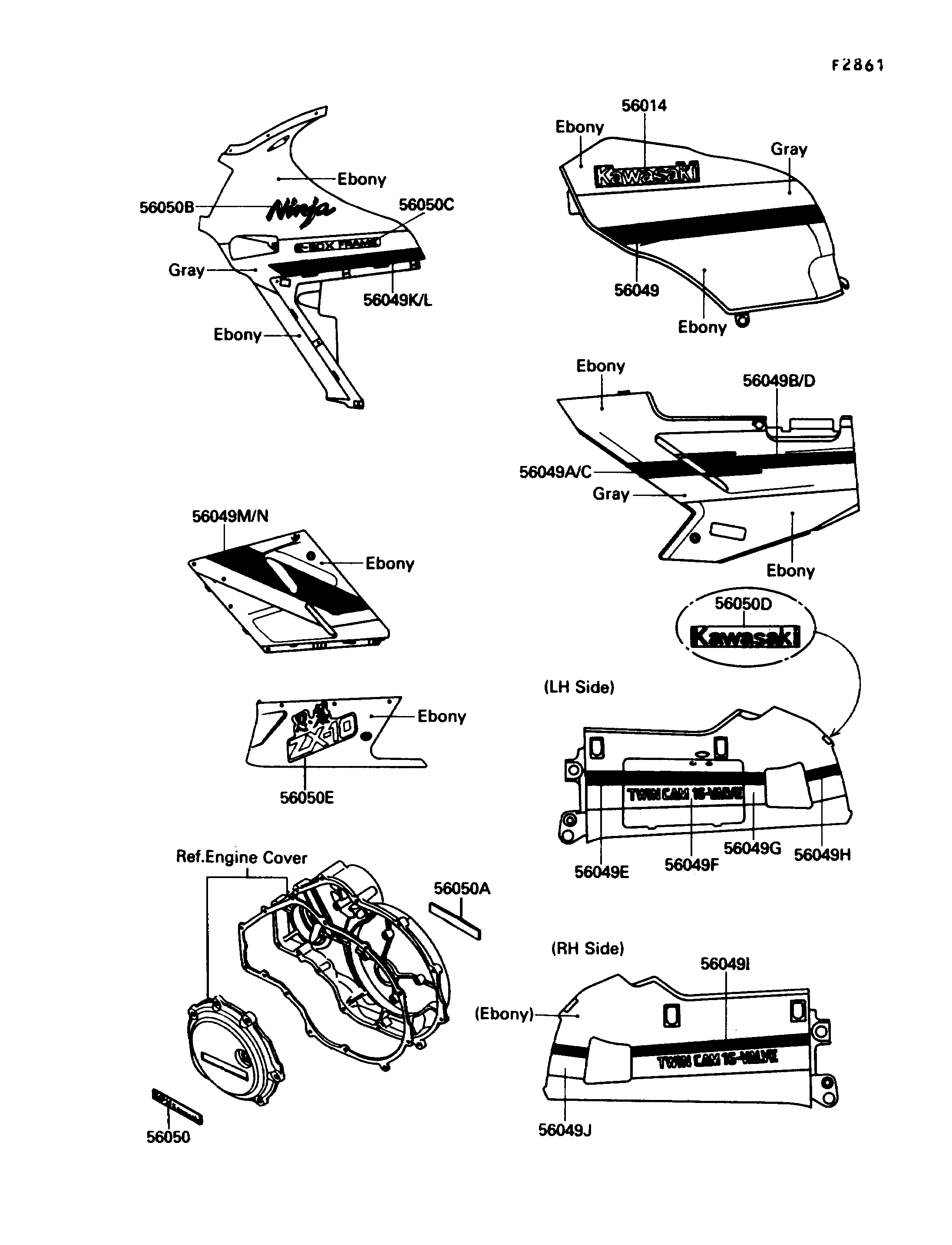

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| EMBLEM,FUEL TANK,KAWASAKI | 56014 | 56014-1217 | 2 | ||
| PATTERN,FUEL TANK | 56049 | 56049-1107 | 1 | ||
| PATTERN,SIDE COVER,FR,LH | 56049A | 56049-1108 | 1 | ||
| PATTERN,SIDE COVER,RR,LH | 56049B | 56049-1109 | 1 | ||
| PATTERN,SIDE COVER,FR,RH | 56049C | 56049-1110 | 1 | ||
| PATTERN,SIDE COVER,RR,RH | 56049D | 56049-1111 | 1 | ||
| PATTERN,SEAT COVER,FR,LH | 56049E | 56049-1112 | 1 | ||
| PATTERN,TOOL BOX COVER | 56049F | 56049-1113 | 1 | ||
| PATTERN,SEAT COVER,CNT,LH | 56049G | 56049-1114 | 1 | ||
| PATTERN,SEAT COVER,RR,LH | 56049H | 56049-1115 | 1 | ||
| PATTERN,SEAT COVER,FR,RH | 56049I | 56049-1116 | 1 | ||
| PATTERN,SEAT COVER,RR,RH | 56049J | 56049-1117 | 1 | ||
| PATTERN,UPP COWLING,LH | 56049K | 56049-1118 | 1 | ||
| PATTERN,UPP COWLING,RH | 56049L | 56049-1119 | 1 | ||
| PATTERN,SIDE COWLING,LH | 56049M | 56049-1120 | 1 | ||
| PATTERN,SIDE COWLING,RH | 56049N | 56049-1121 | 1 | ||
| MARK,ENGINE COVER,LH | 56050 | 56050-1094 | 1 | ||
| MARK,ENGINE COVER,RH | 56050A | 56050-1095 | 1 | ||
| MARK,NINJA | 56050B | 56050-1234 | 2 | ||
| MARK,E-BOX FRAME | 56050C | 56050-1235 | 2 | ||
| MARK,KAWASAKI | 56050D | 56050-1237 | 1 | ||
| MARK,NINJA/ZX-10 | 56050E | 56050-1376 | 2 |
