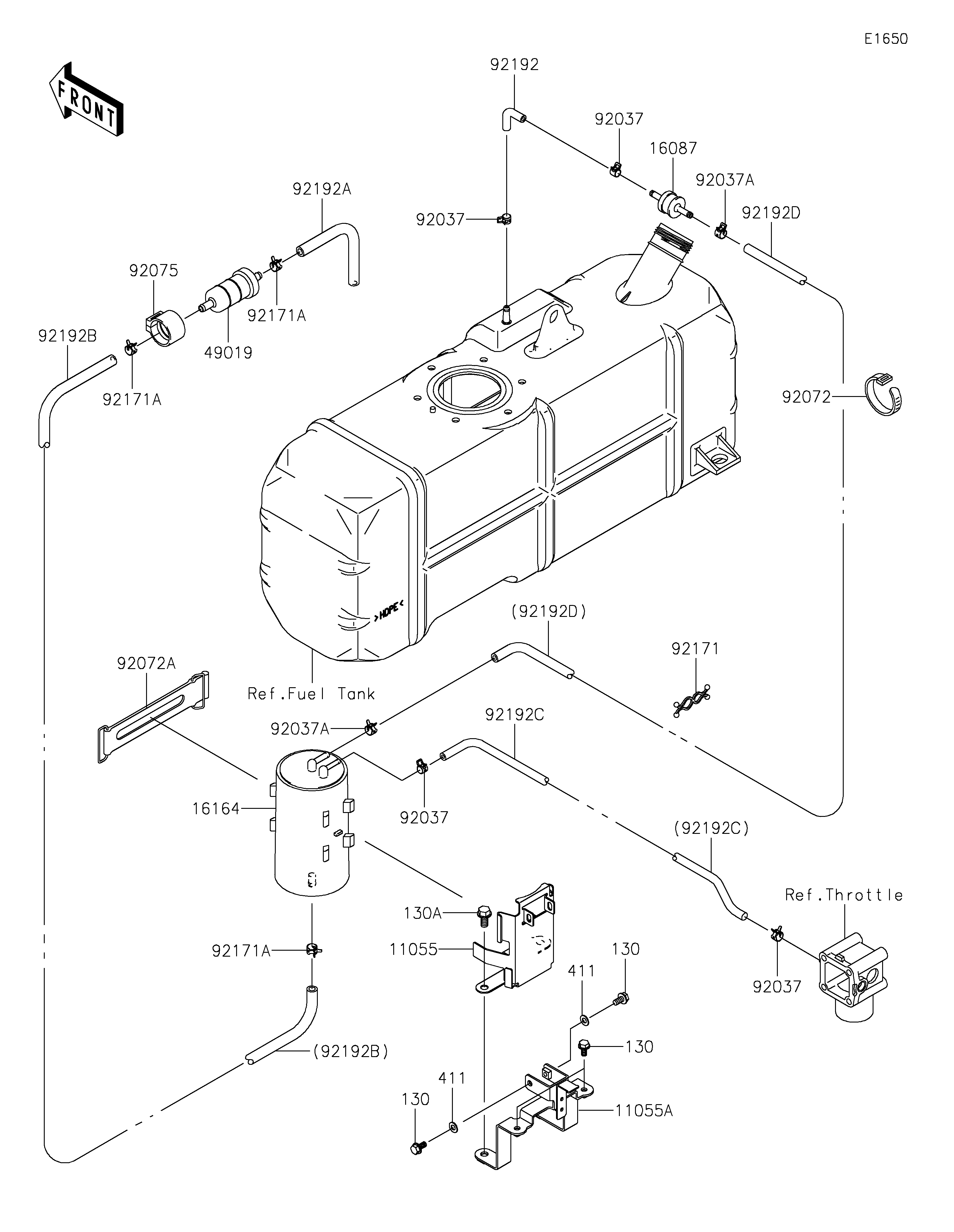

2021 MULE™ 4010 4x4® FE - Fuel Evaporative System

DOWNLOAD PDF
SELECT A NEW PART
11055
11055A
16087
16164
49019
92037
92037
92037
92037
92037A
92037A
92072
92072A
92075
92171
92171A
92171A
92171A
92192
92192A
92192B
92192C
92192D
130
130
130
130A
411
411
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,UPP 11055 11055-0263 1
BRACKET,LWR 11055A 11055-0407 1
VALVE-CHECK 16087 16087-0008 1
CANISTER 16164 16164-0018 1
FILTER-FUEL 49019 49019-0032 1
CLAMP,TUBE 92037 92037-1461 4
CLAMP,TUBE 92037A 92037-1505 2
BAND,L=186 92072 92072-056 1
BAND,L=168 92072A 92072-1306 1
DAMPER,FUEL FILTER 92075 92075-1853 1
CLAMP 92171 92171-0476 1
CLAMP 92171A 92171-0515 3
TUBE,FUEL TANK-CHECK VALVE 92192 92192-0067 1
TUBE,FILTER-AIR 92192A 92192-0609 1
TUBE,CANISTER-FUEL FILTER 92192B 92192-0713 1
TUBE,4.5X9.5X460 92192C 92192-0909 1
TUBE 92192D 92192-1161 1
BOLT-FLANGED,6X12 130 130BA0612 4
BOLT-FLANGED,8X16 130A 130BA0816 2
WASHER-PLAIN,6MM 411 411AA0600 2
