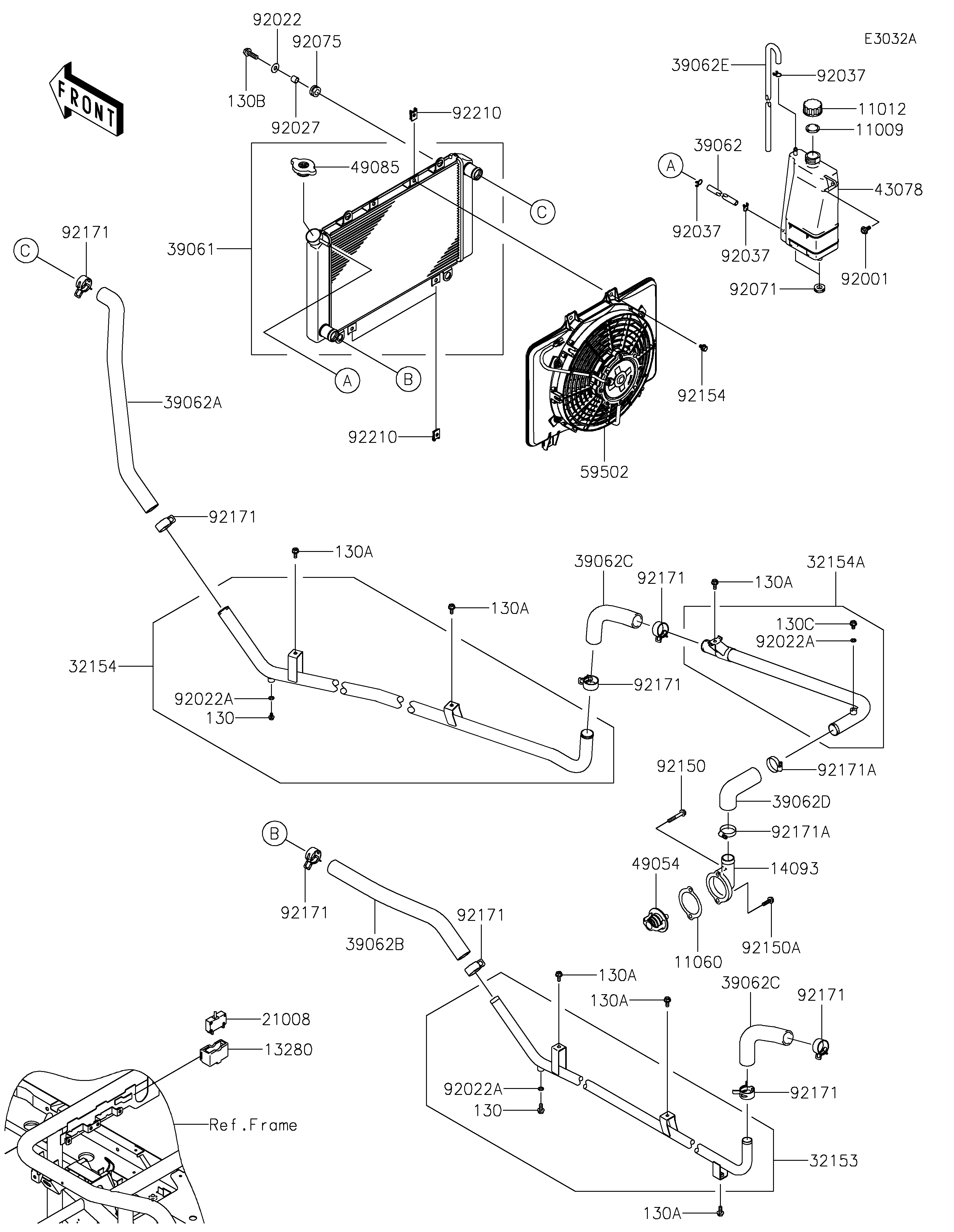

2021 MULE™ 4010 4x4® FE - Radiator(JK1AFCZ1 MB500168-)
11009
11012
11060
13280
14093
21008
32153
32154
32154A
39061
39062
39062A
39062B
39062C
39062C
39062D
39062E
43078
49054
49085
59502
92001
92022
92022A
92022A
92022A
92027
92037
92037
92037
92071
92075
92150
92150A
92154
92171
92171
92171
92171
92171
92171
92171
92171
92171A
92171A
92210
92210
130
130
130A
130A
130A
130A
130A
130A
130B
130C
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,RESERVOIR TANK CAP | 11009 | 11009-1145 | 1 | ||
| CAP | 11012 | 11012-1084 | 1 | ||
| GASKET,THERMOSTAT COVER | 11060 | 11060-2084 | 1 | ||
| HOLDER,BREAKER | 13280 | 13280-0082 | 1 | ||
| COVER,THERMOSTAT | 14093 | 14093-0061 | 1 | ||
| BREAKER,FAN MOTOR | 21008 | 21008-0014 | 1 | ||
| PIPE,LH | 32153 | 32153-1326 | 1 | ||
| PIPE,RH,FR | 32154 | 32154-1656 | 1 | ||
| PIPE,RH,RR | 32154A | 32154-1658 | 1 | ||
| RADIATOR-ASSY | 39061 | 39061-0811 | 1 | ||
| HOSE-COOLING,5.5X10.5X650 | 39062 | 39062-0266 | 1 | ||
| HOSE-COOLING,PIPE-RAD. | 39062A | 39062-0282 | 1 | ||
| HOSE-COOLING,RAD.-LH PIPE | 39062B | 39062-0283 | 1 | ||
| HOSE-COOLING,PIPE-E/G | 39062C | 39062-0286 | 2 | ||
| HOSE-COOLING | 39062D | 39062-1832 | 1 | ||
| HOSE-COOLING,DRAIN | 39062E | 39062-7507 | 1 | ||
| RESERVOIR | 43078 | 43078-0062 | 1 | ||
| THERMOSTAT | 49054 | 49054-2056 | 1 | ||
| CAP-ASSY-PRESSURE | 49085 | 49085-0017 | 1 | ||
| FAN-ASSY | 59502 | 59502-0630 | 1 | ||
| BOLT,W/P,6X16 | 92001 | 92001-1860 | 1 | ||
| WASHER,8.5X20X1.6,BLACK | 92022 | 92022-1317 | 4 | ||
| WASHER,6.2X11X1 | 92022A | 92022-304 | 3 | ||
| COLLAR,8.8X12X10.7 | 92027 | 92027-102 | 4 | ||
| CLAMP,TUBE | 92037 | 92037-147 | 3 | ||
| GROMMET | 92071 | 92071-1115 | 2 | ||
| DAMPER | 92075 | 92075-294 | 4 | ||
| BOLT,6X40 | 92150 | 92150-2230 | 1 | ||
| BOLT,6X20 | 92150A | 92150-2231 | 1 | ||
| BOLT,6X14 | 92154 | 92154-4107 | 4 | ||
| CLAMP,COOLING HOSE | 92171 | 92171-0060 | 8 | ||
| CLAMP | 92171A | 92171-0179 | 2 | ||
| NUT,6MM | 92210 | 92210-1791 | 4 | ||
| BOLT-FLANGED,6X10 | 130 | 130BA0610 | 2 | ||
| BOLT-FLANGED,6X14 | 130A | 130BA0614 | 6 | ||
| BOLT-FLANGED,8X25 | 130B | 130BA0825 | 4 | ||
| BOLT-FLANGED,6X10 | 130C | 130BB0610 | 1 |
