16126
16126
41009
41009
41025
41025
92210
92210

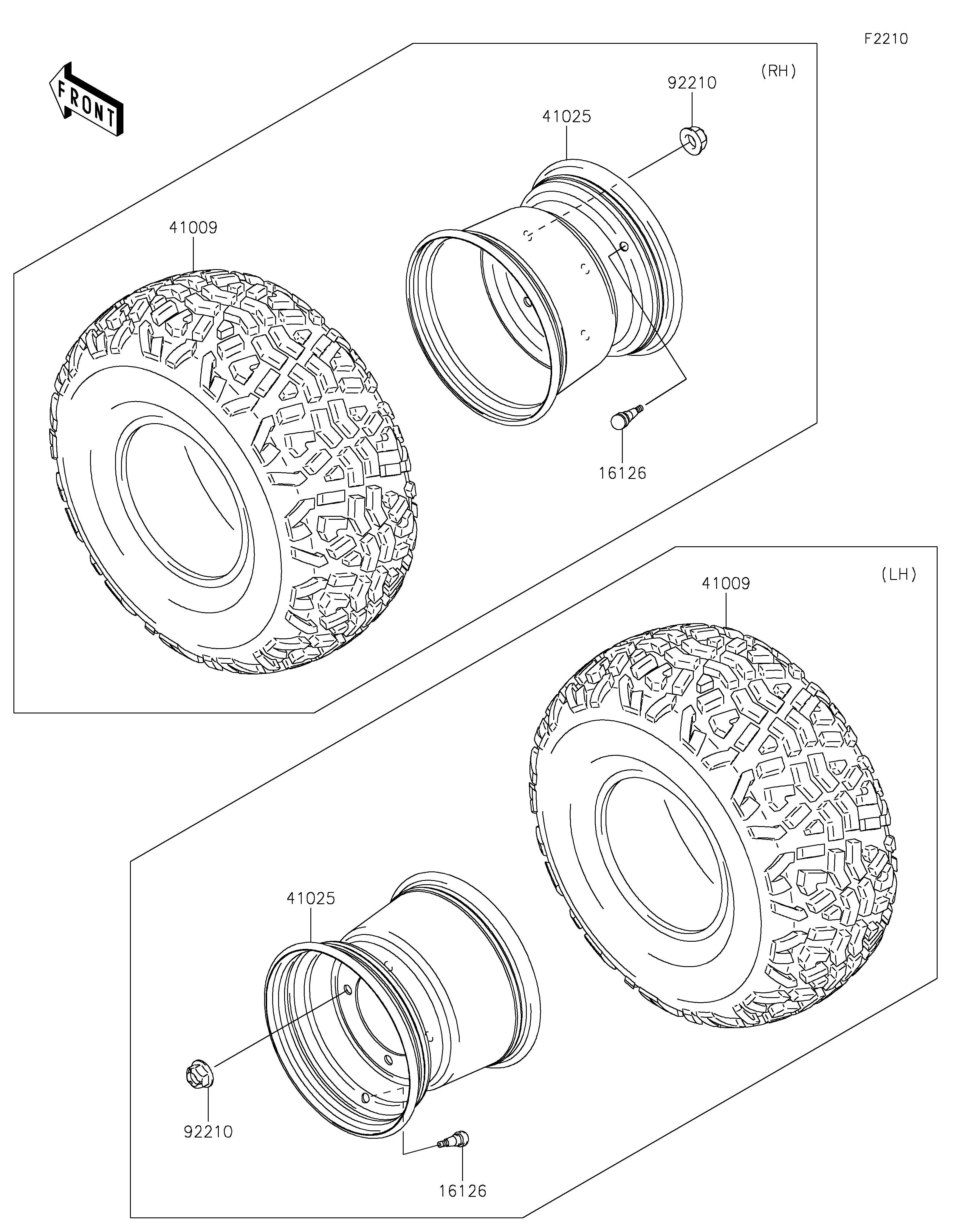

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE 16126 16126-4001 4
TIRE,23X11.00-10 4PR 41009 41009-0294 4
RIM,10X8.5AT,F.S.BLACK 41025 41025-7504-397 4
NUT,12MM 92210 92210-0603 16
