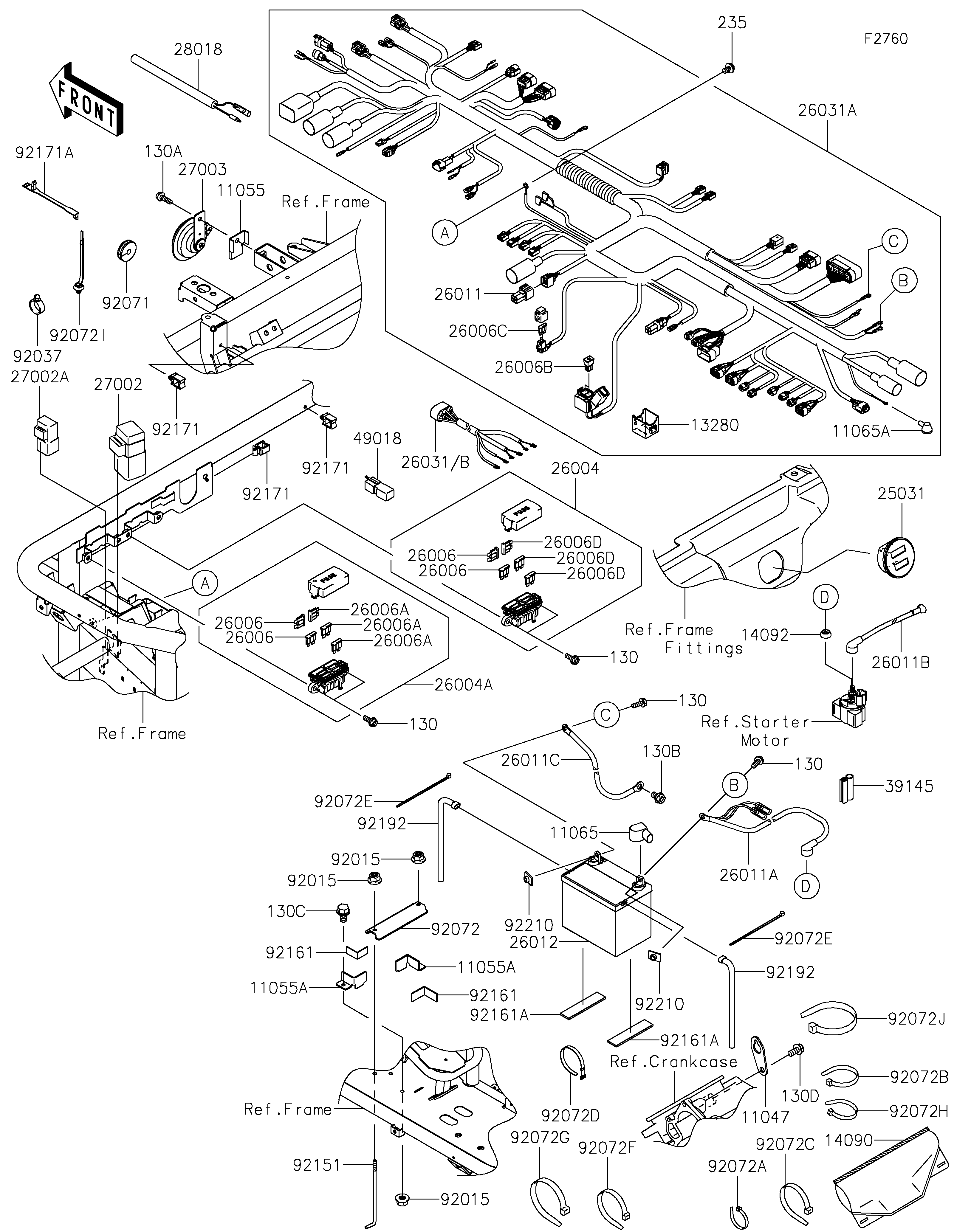

2021 MULE™ 4010 4x4® FE - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
11047
11047
11055
11055
11055A
11055A
11055A
11055A
11065
11065
11065A
11065A
13280
13280
14090
14090
14092
14092
25031
25031
26004
26004
26004A
26004A
26006
26006
26006
26006
26006
26006
26006
26006
26006A
26006A
26006A
26006A
26006A
26006A
26006B
26006B
26006C
26006C
26006D
26006D
26006D
26006D
26006D
26006D
26011
26011
26011A
26011A
26011B
26011B
26011C
26011C
26012
26012
26031
26031
26031A
26031A
27002
27002
27002A
27002A
27003
27003
28018
28018
39145
39145
49018
49018
92015
92015
92015
92015
92015
92015
92037
92037
92071
92071
92072
92072
92072A
92072A
92072B
92072B
92072C
92072C
92072D
92072D
92072E
92072E
92072E
92072E
92072F
92072F
92072G
92072G
92072H
92072H
92072I
92072I
92072J
92072J
92151
92151
92161
92161
92161
92161
92161A
92161A
92161A
92161A
92171
92171
92171
92171
92171
92171
92171A
92171A
92192
92192
92192
92192
92210
92210
92210
92210
130
130
130
130
130
130
130
130
130A
130A
130B
130B
130C
130C
130D
130D
235
235
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,F.BLACK 11047 11047-2056-9H 1
BRACKET,HORN 11055 11055-0167 1
BRACKET 11055A 11055-0433 2
CAP,BATTERY TERMINAL 11065 11065-0285 1
CAP,NEUTRAL SW. 11065A 11065-0726 1
HOLDER 13280 13280-7508 1
COVER,COUPLER 14090 14090-1611 1
COVER,MAGNETIC SW. 14092 14092-0851 1
METER-ASSY 25031 25031-0829 1
FUSE-ASSY 26004 26004-0018 1
FUSE-ASSY 26004A 26004-0019 1
FUSE,BLADE,30A,GREEN 26006 26006-0004 4
FUSE,BLADE,10A,RED 26006A 26006-0005 3
FUSE,SLOW BLOW,BT,40A,GREEN 26006B 26006-0014 2
FUSE,7.5A 26006C 26006-0015 2
FUSE,BLADE,20A,YELLOW 26006D 26006-1051 3
WIRE-LEAD 26011 26011-0037 1
WIRE-LEAD,BATTERY(+) 26011A 26011-0813 1
WIRE-LEAD,STARTER 26011B 26011-0814 1
WIRE-LEAD,BATTERY(-) 26011C 26011-1787 1
BATTERY,12V 14AH 26012 26012-0107 1
HARNESS 26031 26031-2080 1 ( - JK1AFCZ15NB500742)
HARNESS,MAIN 26031A 26031-2457 1
RELAY-ASSY 27002 27002-1068 1
RELAY-ASSY 27002A 27002-1088 1
HORN 27003 27003-1330 1
RESISTOR 28018 28018-0553 1
TRIM-SEAL 39145 39145-0046 1
DIODE 49018 49018-0005 1
NUT,FLANGED,8MM 92015 92015-1406 4
CLAMP,HOSE 92037 92037-1827 4
GROMMET 92071 92071-1136 1
BAND 92072 92072-0112 1
BAND,L=123 92072A 92072-030 3
BAND,L=149 92072B 92072-031 2
BAND,L=218 92072C 92072-032 2
BAND,L=186 92072D 92072-056 1
BAND,92X2.4 92072E 92072-0791 2
BAND,L=202 92072F 92072-1195 1
BAND,L=250 92072G 92072-1237 2
BAND,L=188 92072H 92072-1239 14
BAND,OS170-FT7(BLACK) 92072I 92072-1414 2
BAND,L=368.3 92072J 92072-3872 4
BOLT,BATTERY 92151 92151-1897 2
DAMPER 92161 92161-0580 2
DAMPER,31.1X130X5 92161A 92161-0936 2
CLAMP 92171 92171-0290 3
CLAMP 92171A 92171-1365 1
TUBE,BREATHER,7X10X210,WHT MK 92192 92192-1680 2
NUT,PLATE,6MM 92210 92210-1352 2
BOLT-FLANGED,6X16 130 130BA0616 6
BOLT-FLANGED,6X20 130A 130BA0620 1
BOLT-FLANGED,8X12 130B 130BA0812 1
BOLT-FLANGED,8X14 130C 130BA0814 2
BOLT-FLANGED,8X16 130D 130BA0816 1
SCREW-PAN-WP-CROS,6X10 235 235AA0610 1
