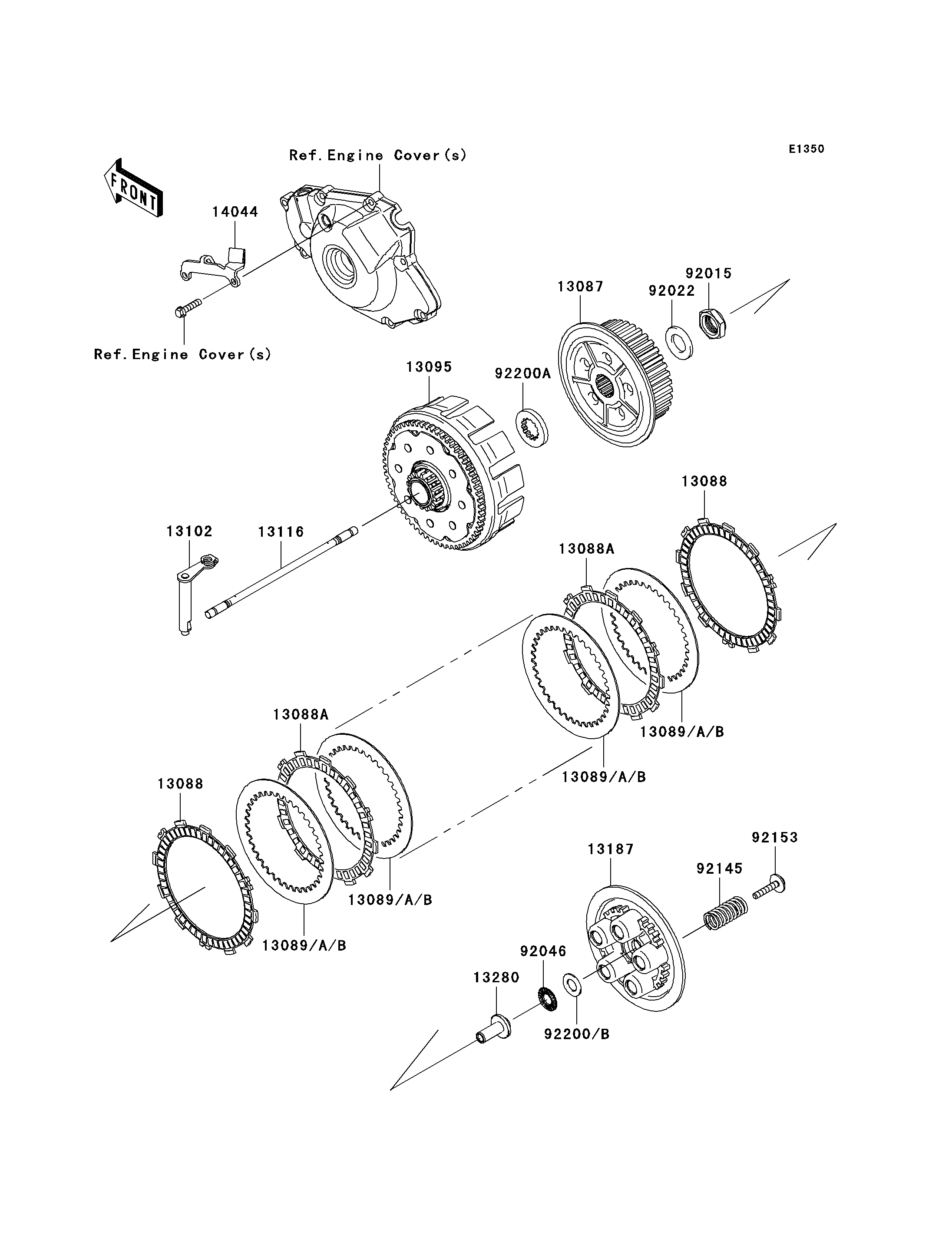

2009 KX™450F - Clutch

DOWNLOAD PDF
SELECT A NEW PART
13087
13088
13088
13088A
13088A
13089
13089
13089
13089
13089A
13089A
13089A
13089A
13089B
13089B
13089B
13089B
13095
13102
13116
13187
13280
14044
92015
92022
92046
92145
92153
92200
92200A
92200B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HUB-CLUTCH 13087 13087-0015 1
PLATE-FRICTION 13088 13088-0010 2
PLATE-FRICTION 13088A 13088-0012 6
PLATE-CLUTCH,T=2.0 13089 13089-1005 AR
PLATE-CLUTCH,T=1.2 13089A 13089-1010 AR
PLATE-CLUTCH,T=1.6 13089B 13089-1095 7
HOUSING-COMP-CLUTCH 13095 13095-0052 1
RELEASE-COMP-CLUTCH 13102 13102-0035 1
ROD-PUSH 13116 13116-0013 1
PLATE-CLUTCH OPERATING 13187 13187-0007 1
HOLDER 13280 13280-0067 1
HOLDER-CABLE 14044 14044-0038 1
NUT,20MM 92015 92015-1725 1
WASHER,20.3X36X3.7 92022 92022-1868 1
BEARING-NEEDLE,FNTA-1326 92046 92046-1190 1
SPRING,CLUTCH 92145 92145-0370 5
BOLT,WP,6X35 92153 92153-1876 5
WASHER,13.4X25X1.0 92200 92200-0045 AR
WASHER,25X41X5.5 92200A 92200-0245 1
WASHER,13.4X25.0X1.5 92200B 92200-1548 1
