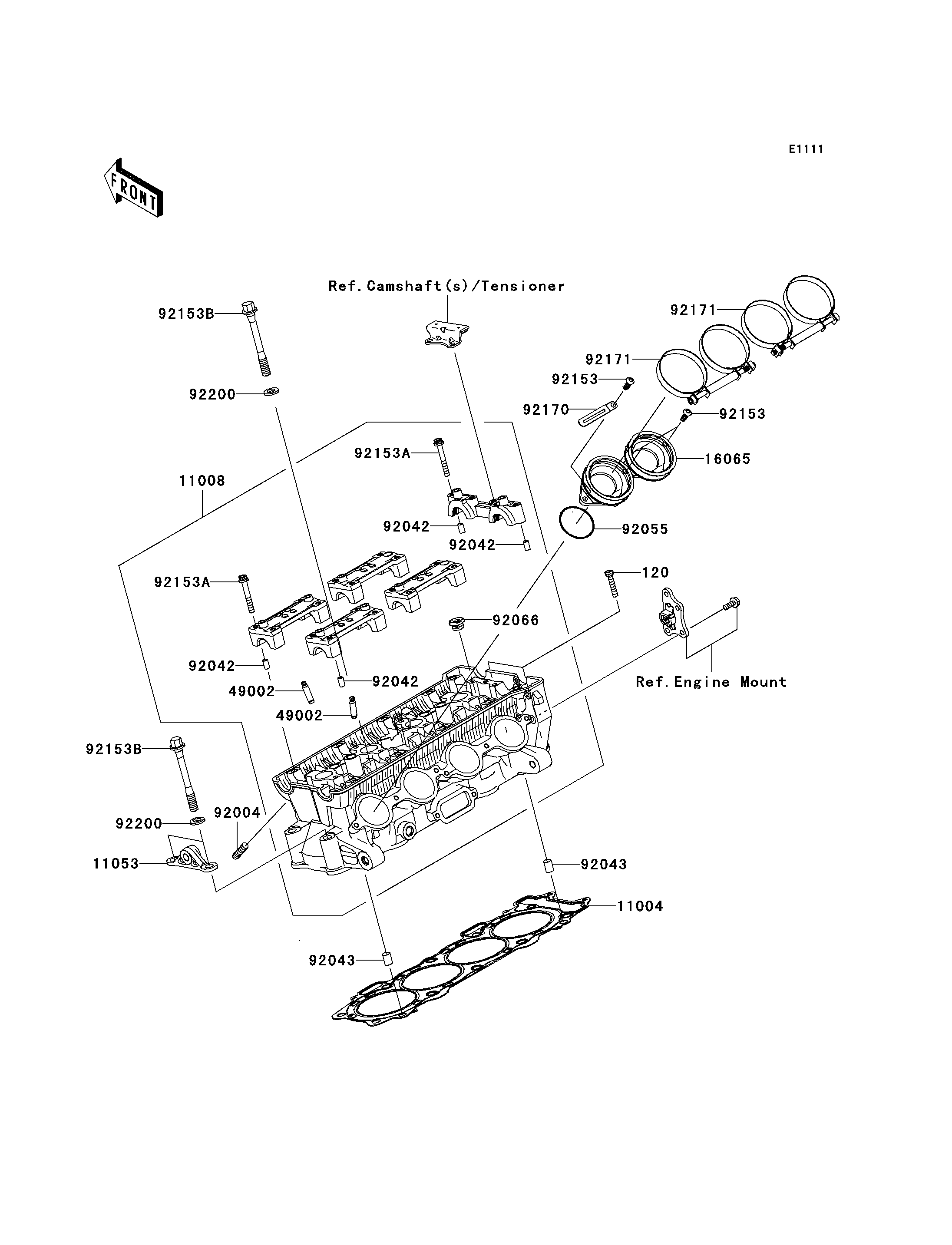

Parts Diagrams |
120
11004
11008
11053
16065
49002
49002
92004
92042
92042
92042
92042
92043
92043
92055
92066
92153
92153
92153A
92153A
92153B
92153B
92170
92171
92171
92200
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET | 120 | 120Z0630 | 2 | ||
| GASKET-HEAD | 11004 | 11004-0032 | 1 | ||
| HEAD-COMP-CYLINDER | 11008 | 11008-0041 | 1 | ||
| BRACKET | 11053 | 11053-0530 | 1 | ||
| HOLDER-CARBURETOR | 16065 | 16065-0016 | 2 | ||
| GUIDE-VALVE | 49002 | 49002-0009 | AR | ||
| STUD,8X18 | 92004 | 92004-1186 | 8 | ||
| PIN,DOWEL,6.3X8X14 | 92042 | 92042-007 | 10 | ||
| PIN | 92043 | 92043-1506 | 2 | ||
| RING-O,43.7X1.9 | 92055 | 92055-1401 | 4 | ||
| PLUG,18X10 | 92066 | 92066-0016 | 4 | ||
| BOLT,6X18 | 92153 | 92153-0454 | 6 | ||
| BOLT,6X45 | 92153A | 92153-0656 | 20 | ||
| BOLT,10X90 | 92153B | 92153-0893 | 10 | ||
| CLAMP | 92170 | 92170-1514 | 1 | ||
| CLAMP | 92171 | 92171-0278 | 2 | ||
| WASHER,10.5X19X2.3 | 92200 | 92200-0114 | 10 |
