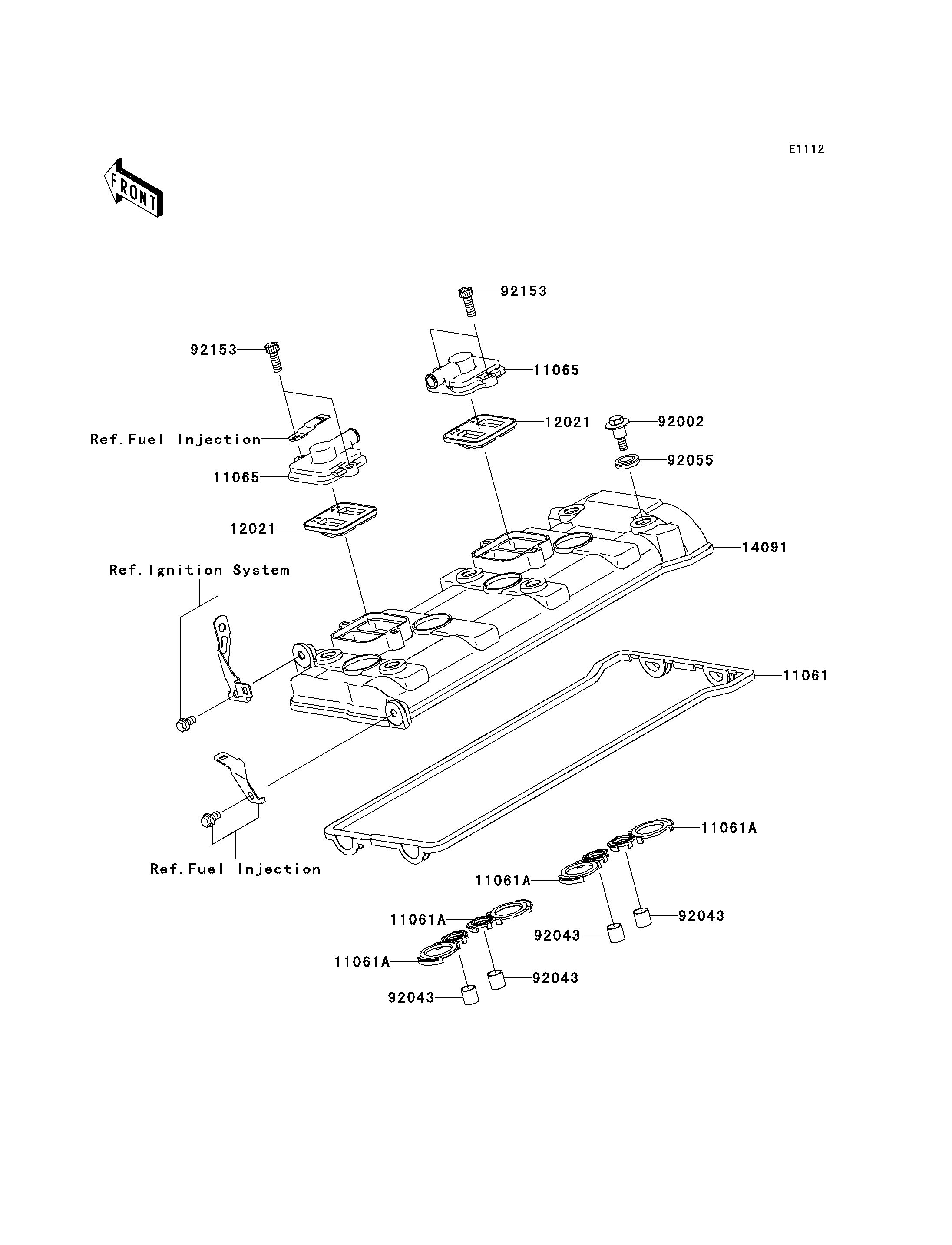

2005 Ninja® ZX™-10R - Cylinder Head Cover
11061
11061A
11061A
11061A
11061A
11065
11065
12021
12021
14091
92002
92043
92043
92043
92043
92055
92153
92153
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,HEAD COVER | 11061 | 11061-0051 | 1 | ||
| GASKET,PLUG HOLE | 11061A | 11061-0064 | 4 | ||
| CAP | 11065 | 11065-1247 | 2 | ||
| VALVE-ASSY-REED | 12021 | 12021-1130 | 2 | ||
| COVER,HEAD | 14091 | 14091-0110 | 1 | ||
| BOLT,L=20.5 | 92002 | 92002-1327 | 6 | ||
| PIN,10.1X12X14 | 92043 | 92043-4009 | 4 | ||
| RING-O,HEAD COVER BOLT | 92055 | 92055-1352 | 6 | ||
| BOLT,SOCKET,6X18 | 92153 | 92153-1284 | 4 |
