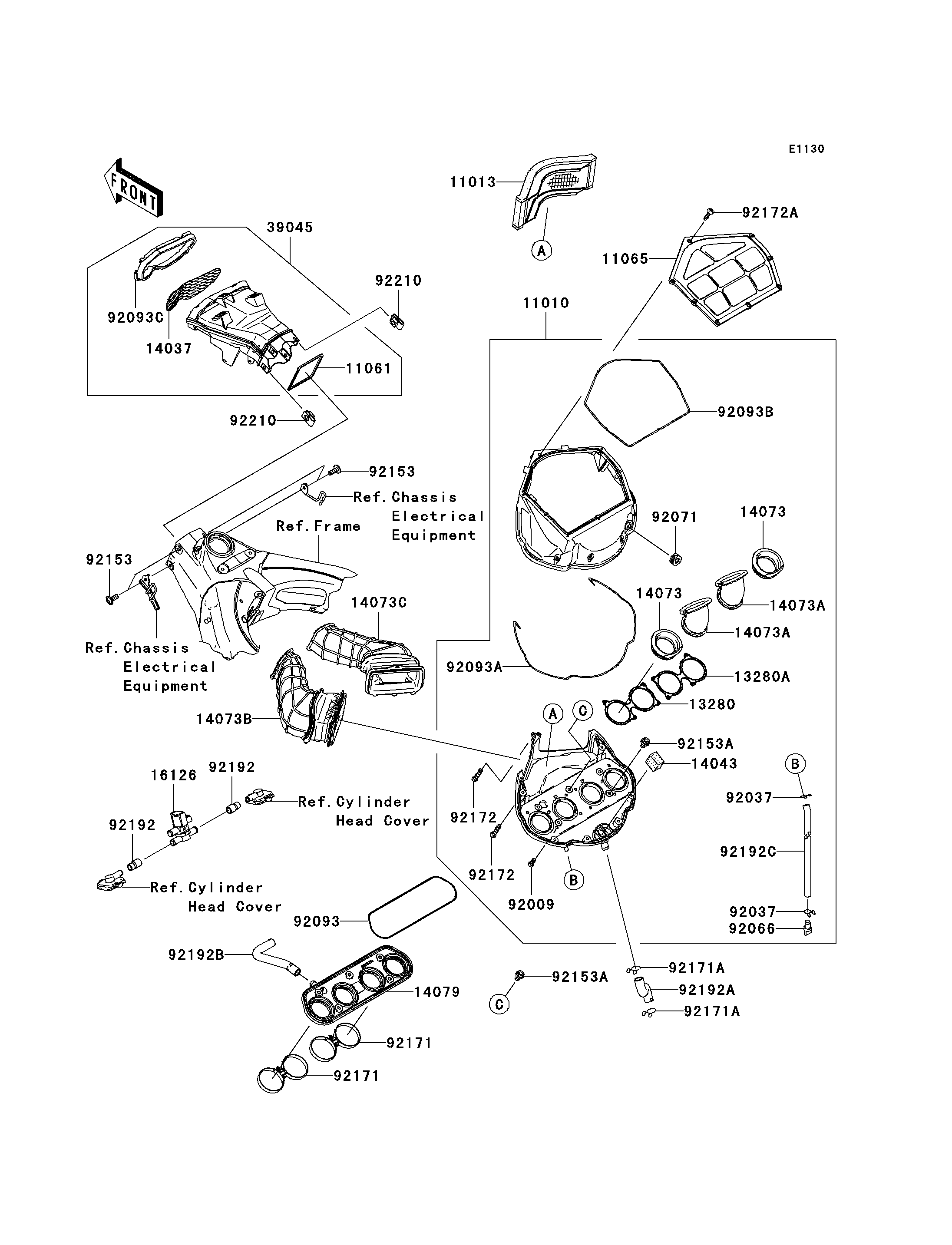

2005 Ninja® ZX™-10R - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
11010
11013
11061
11065
13280
13280A
14037
14043
14073
14073
14073A
14073A
14073B
14073C
14079
16126
39045
92009
92037
92037
92066
92071
92093
92093A
92093B
92093C
92153
92153
92153A
92153A
92171
92171
92171A
92171A
92172
92172
92172A
92192
92192
92192A
92192B
92192C
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER-ASSY-AIR 11010 11010-0049 1
ELEMENT-AIR FILTER 11013 11013-0004 1
GASKET 11061 11061-0056 1
CAP,AIR FILTER 11065 11065-0032 1
HOLDER 13280 13280-0062 1
HOLDER 13280A 13280-0063 1
SCREEN 14037 14037-0025 1
FILTER,OIL SEPARATOR 14043 14043-0006 1
DUCT,FUNNEL #1&#4 14073 14073-0044 2
DUCT,FUNNEL #2&#3 14073A 14073-0052 2
DUCT,LH 14073B 14073-0067 1
DUCT,RH 14073C 14073-0068 1
HOLDER-ASSY 14079 14079-0005 1
VALVE,AIR CUT 16126 16126-1437 1
DUCT-ASSY,RAM 39045 39045-0010 1
SCREW,TAPPING,5X10 92009 92009-1499 8
CLAMP,TUBE 92037 92037-147 2
PLUG,DRAIN 92066 92066-1211 1
GROMMET 92071 92071-2140 1
SEAL 92093 92093-0012 1
SEAL 92093A 92093-0026 1
SEAL 92093B 92093-0027 1
SEAL,RAM DUCT 92093C 92093-0029 1
BOLT,6X18 92153 92153-0756 4
BOLT,6X12 92153A 92153-0759 5
CLAMP,FUNNEL 92171 92171-0186 2
CLAMP 92171A 92171-0391 2
SCREW,TAPPING,5X20 92172 92172-0009 7
SCREW 92172A 92172-0056 8
TUBE,HEAD-ASV 92192 92192-0033 2
TUBE,BREATHER 92192A 92192-0035 1
TUBE,AIR FILTER-ASV 92192B 92192-0096 1
TUBE,7X10X500 92192C 92192-0156 1
NUT 92210 92210-0130 4
