Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

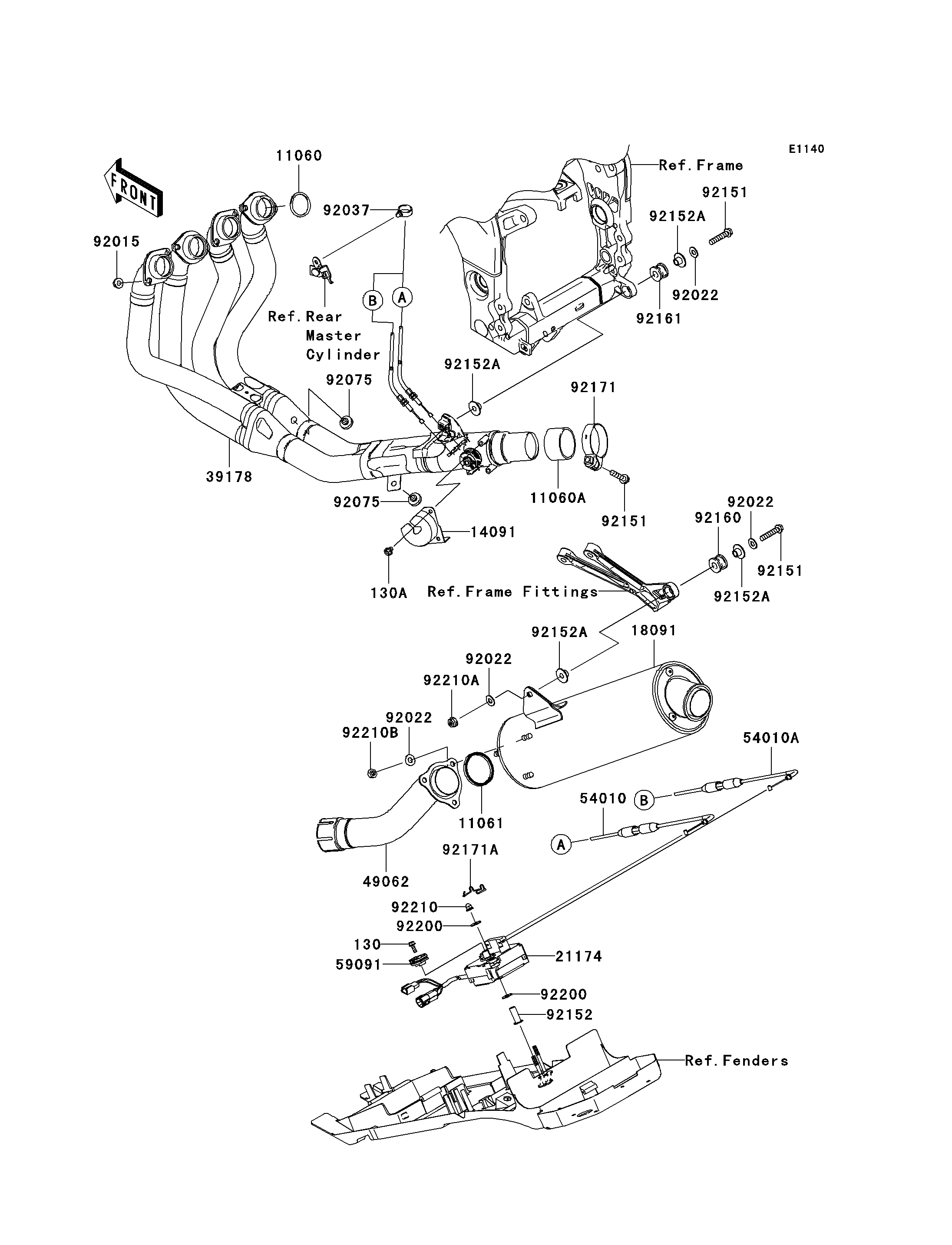

Parts Diagrams |
130
130A
11060
11060A
11061
14091
18091
21174
39178
49062
54010
54010A
59091
92015
92022
92022
92022
92022
92037
92075
92075
92151
92151
92151
92152
92152A
92152A
92152A
92152A
92160
92161
92171
92171A
92200
92200
92210
92210A
92210B
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED | 130 | 130L0518 | 1 | ||
BOLT-FLANGED,6X8 | 130A | 130R0608 | 2 | ||
GASKET,EXHAUST PIPE HOLDER | 11060 | 11060-1103 | 4 | ||
GASKET,EXHAUST PIPE HOLDER | 11060A | 11060-1330 | 1 | ||
GASKET | 11061 | 11061-0100 | 1 | ||
COVER | 14091 | 14091-0304 | 1 | ||
BODY-COMP-MUFFLER | 18091 | 18091-0229 | 1 | ||
MOTOR-ELECTRIC | 21174 | 21174-0003 | 1 | ||
MANIFOLD-COMP-EXHAUST | 39178 | 39178-0047 | 1 | ||
PIPE-COMP-EXHAUST | 49062 | 49062-0026 | 1 | ||
CABLE | 54010 | 54010-0020 | 1 | ||
CABLE | 54010A | 54010-0021 | 1 | ||
PULLEY | 59091 | 59091-0003 | 1 | ||
NUT,8MM | 92015 | 92015-1402 | 8 | ||
WASHER,8.5X19X1.2 | 92022 | 92022-3730 | 6 | ||
CLAMP,HOSE | 92037 | 92037-1827 | 1 | ||
DAMPER | 92075 | 92075-005 | 2 | ||
BOLT,FLANGED,8X40 | 92151 | 92151-1532 | 3 | ||
COLLAR | 92152 | 92152-0102 | 2 | ||
COLLAR | 92152A | 92152-0188 | 4 | ||
DAMPER | 92160 | 92160-1116 | 1 | ||
DAMPER | 92161 | 92161-0193 | 1 | ||
CLAMP | 92171 | 92171-0133 | 1 | ||
CLAMP | 92171A | 92171-0292 | 1 | ||
WASHER | 92200 | 92200-0078 | 4 | ||
NUT,CAP,6MM | 92210 | 92210-0003 | 2 | ||
NUT,8MM | 92210A | 92210-0121 | 1 | ||
NUT,8MM | 92210B | 92210-0173 | 3 |
