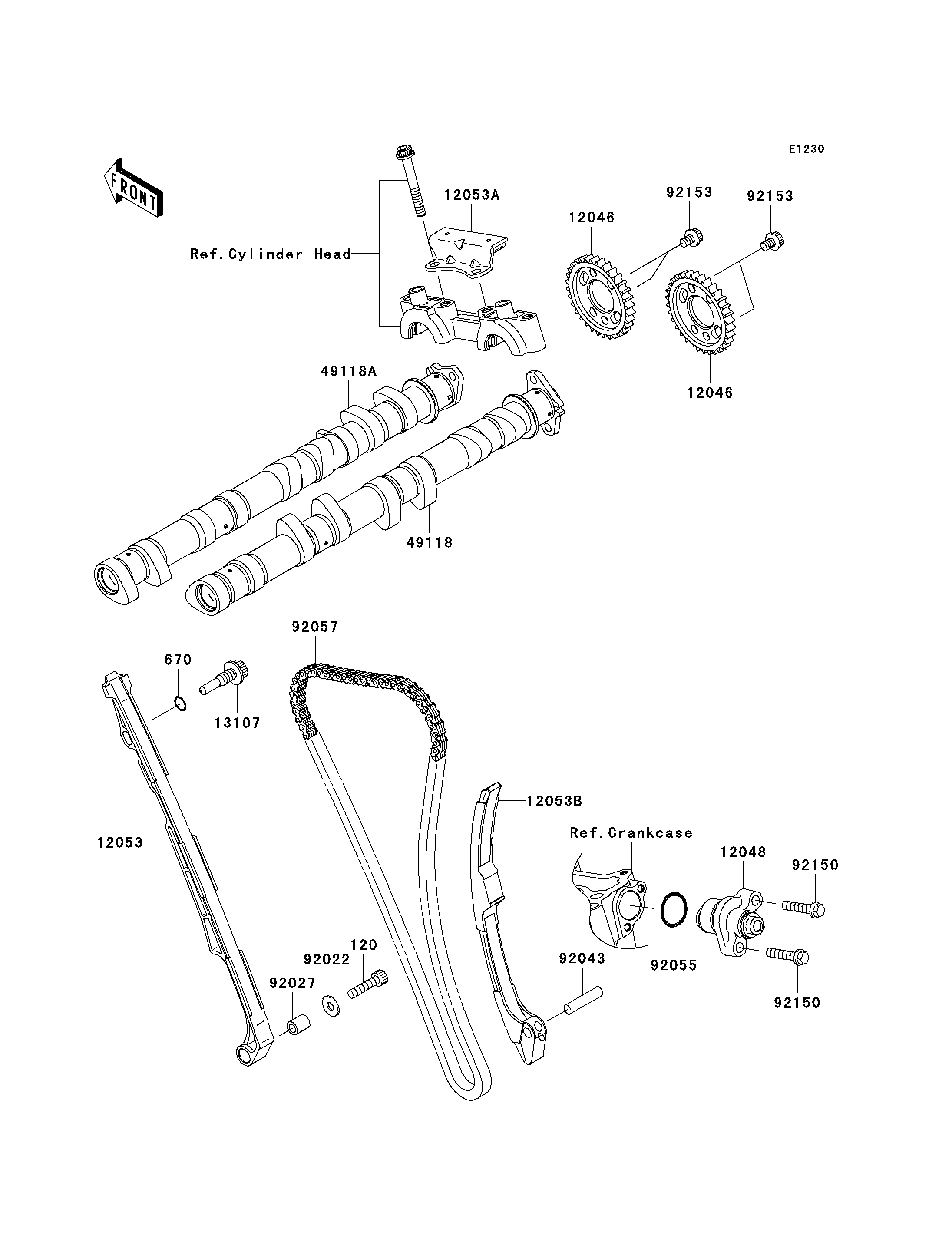

2005 Ninja® ZX™-10R - Camshaft(s)/Tensioner
120
670
12046
12046
12048
12053
12053A
12053B
13107
49118
49118A
92022
92027
92043
92055
92057
92150
92150
92153
92153
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET,6X25 | 120 | 120P0625 | 1 | ||
| O RING,9MM | 670 | 670D1509 | 1 | ||
| SPROCKET,32T | 12046 | 12046-0034 | 2 | ||
| TENSIONER-ASSY | 12048 | 12048-0012 | 1 | ||
| GUIDE-CHAIN,FR | 12053 | 12053-0040 | 1 | ||
| GUIDE-CHAIN,UPP | 12053A | 12053-0041 | 1 | ||
| GUIDE-CHAIN,RR | 12053B | 12053-0050 | 1 | ||
| SHAFT,CHAIN GUIDE,FR | 13107 | 13107-1416 | 1 | ||
| CAMSHAFT-COMP,INTAKE | 49118 | 49118-0008 | 1 | ||
| CAMSHAFT-COMP,EXHAUST | 49118A | 49118-0023 | 1 | ||
| WASHER,6.2X15.0X1.2 | 92022 | 92022-2373 | 1 | ||
| COLLAR,6.3X10X12 | 92027 | 92027-1143 | 1 | ||
| PIN,7X30.7 | 92043 | 92043-0062 | 1 | ||
| RING-O,20.8X1.9 | 92055 | 92055-0053 | 1 | ||
| CHAIN,98XRH2015-124M | 92057 | 92057-0085 | 1 | ||
| BOLT,6X25 | 92150 | 92150-1779 | 2 | ||
| BOLT,FLANGED,6X8 | 92153 | 92153-0455 | 4 |
