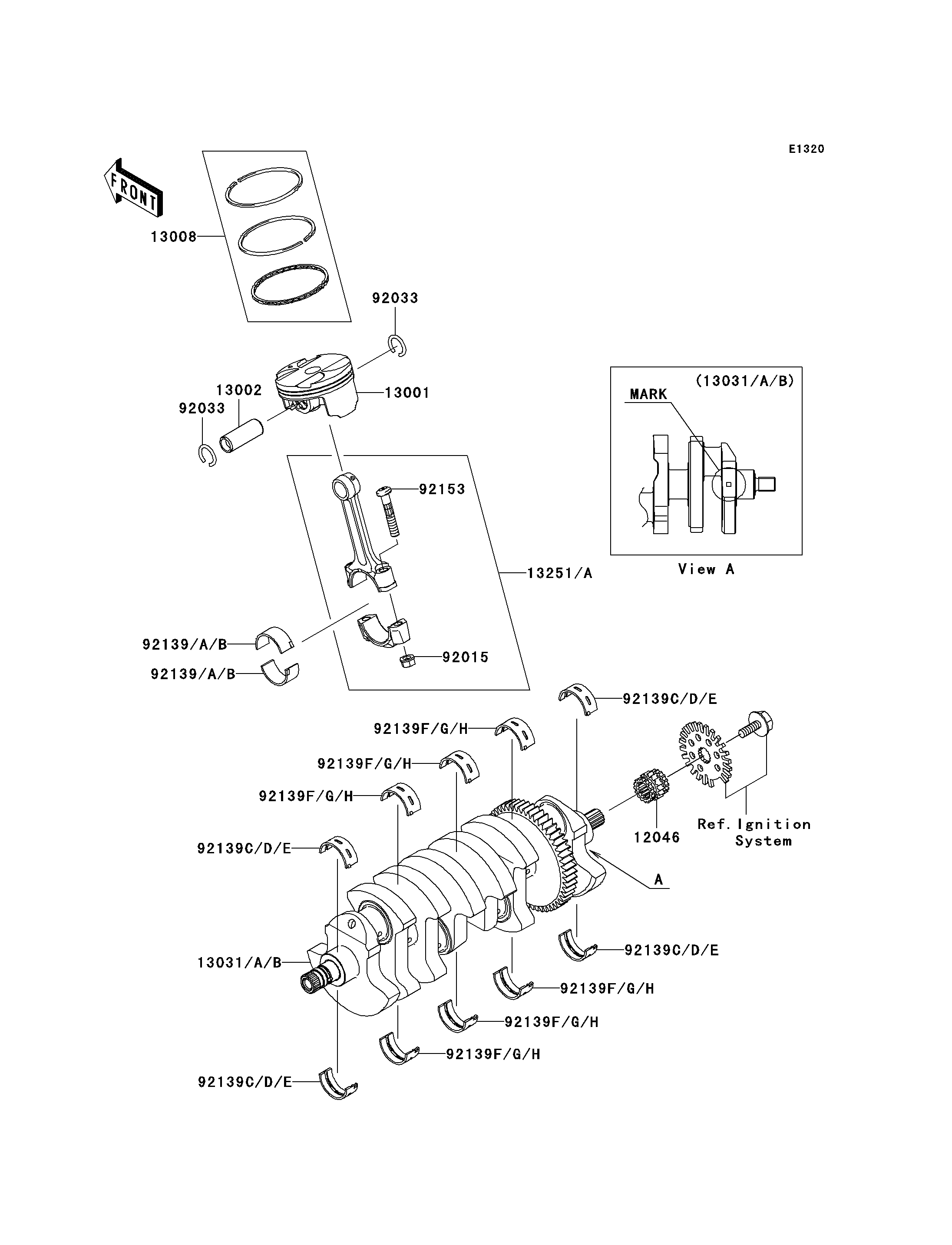

2005 Ninja® ZX™-10R - Crankshaft/Piston(s)
12046
13001
13002
13008
13031
13031A
13031B
13251
13251A
92015
92033
92033
92139
92139
92139A
92139A
92139B
92139B
92139C
92139C
92139C
92139C
92139D
92139D
92139D
92139D
92139E
92139E
92139E
92139E
92139F
92139F
92139F
92139F
92139F
92139F
92139G
92139G
92139G
92139G
92139G
92139G
92139H
92139H
92139H
92139H
92139H
92139H
92153
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SPROCKET,16T | 12046 | 12046-0033 | 1 | ||
PISTON-ENGINE | 13001 | 13001-0044 | 4 | ||
PIN-PISTON | 13002 | 13002-0004 | 4 | ||
RING-SET-PISTON | 13008 | 13008-0005 | 4 | ||
CRANKSHAFT-COMP,"A" MARK | 13031 | 13031-0033 | AR | ||
CRANKSHAFT-COMP,NO MARK | 13031A | 13031-0034 | AR | ||
CRANKSHAFT-COMP,"B" MARK | 13031B | 13031-0035 | AR | ||
ROD-ASSY-CONNECTING,J | 13251 | 13251-0005-JJ | 4 | ||
ROD-ASSY-CONNECTING,KK | 13251A | 13251-0005-KK | 4 | ||
NUT,FLANGED,8MM | 92015 | 92015-1311 | 8 | ||
RING-SNAP | 92033 | 92033-1054 | 8 | ||
BUSHING,CRANK PIN,BLUE | 92139 | 92139-0026 | AR | ||
BUSHING,CRANK PIN,BLACK | 92139A | 92139-0027 | 8 | ||
BUSHING,CRANK PIN,BROWN | 92139B | 92139-0028 | AR | ||
BUSHING,CRANK #1,BLUE | 92139C | 92139-0029 | AR | ||
BUSHING,CRANK #1,BLACK | 92139D | 92139-0030 | 4 | ||
BUSHING,CRANK #1,BROWN | 92139E | 92139-0031 | AR | ||
BUSHING,CRANK #2,BLUE | 92139F | 92139-0032 | AR | ||
BUSHING,CRANK #2,BLACK | 92139G | 92139-0033 | 6 | ||
BUSHING,CRANK #2,BROWN | 92139H | 92139-0034 | AR | ||
BOLT,8X45.5 | 92153 | 92153-0809 | 8 |
SPROCKET,16T | |
REF # | 12046 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PISTON-ENGINE | |
REF # | 13001 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
PIN-PISTON | |
REF # | 13002 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
RING-SET-PISTON | |
REF # | 13008 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
CRANKSHAFT-COMP,"A" MARK | |
REF # | 13031 |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
CRANKSHAFT-COMP,NO MARK | |
REF # | 13031A |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
CRANKSHAFT-COMP,"B" MARK | |
REF # | 13031B |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
ROD-ASSY-CONNECTING,J | |
REF # | 13251 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
ROD-ASSY-CONNECTING,KK | |
REF # | 13251A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT,FLANGED,8MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
RING-SNAP | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
BUSHING,CRANK PIN,BLUE | |
REF # | 92139 |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
BUSHING,CRANK PIN,BLACK | |
REF # | 92139A |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
BUSHING,CRANK PIN,BROWN | |
REF # | 92139B |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
BUSHING,CRANK #1,BLUE | |
REF # | 92139C |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
BUSHING,CRANK #1,BLACK | |
REF # | 92139D |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BUSHING,CRANK #1,BROWN | |
REF # | 92139E |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
BUSHING,CRANK #2,BLUE | |
REF # | 92139F |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
BUSHING,CRANK #2,BLACK | |
REF # | 92139G |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
BUSHING,CRANK #2,BROWN | |
REF # | 92139H |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
BOLT,8X45.5 | |
REF # | 92153 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
