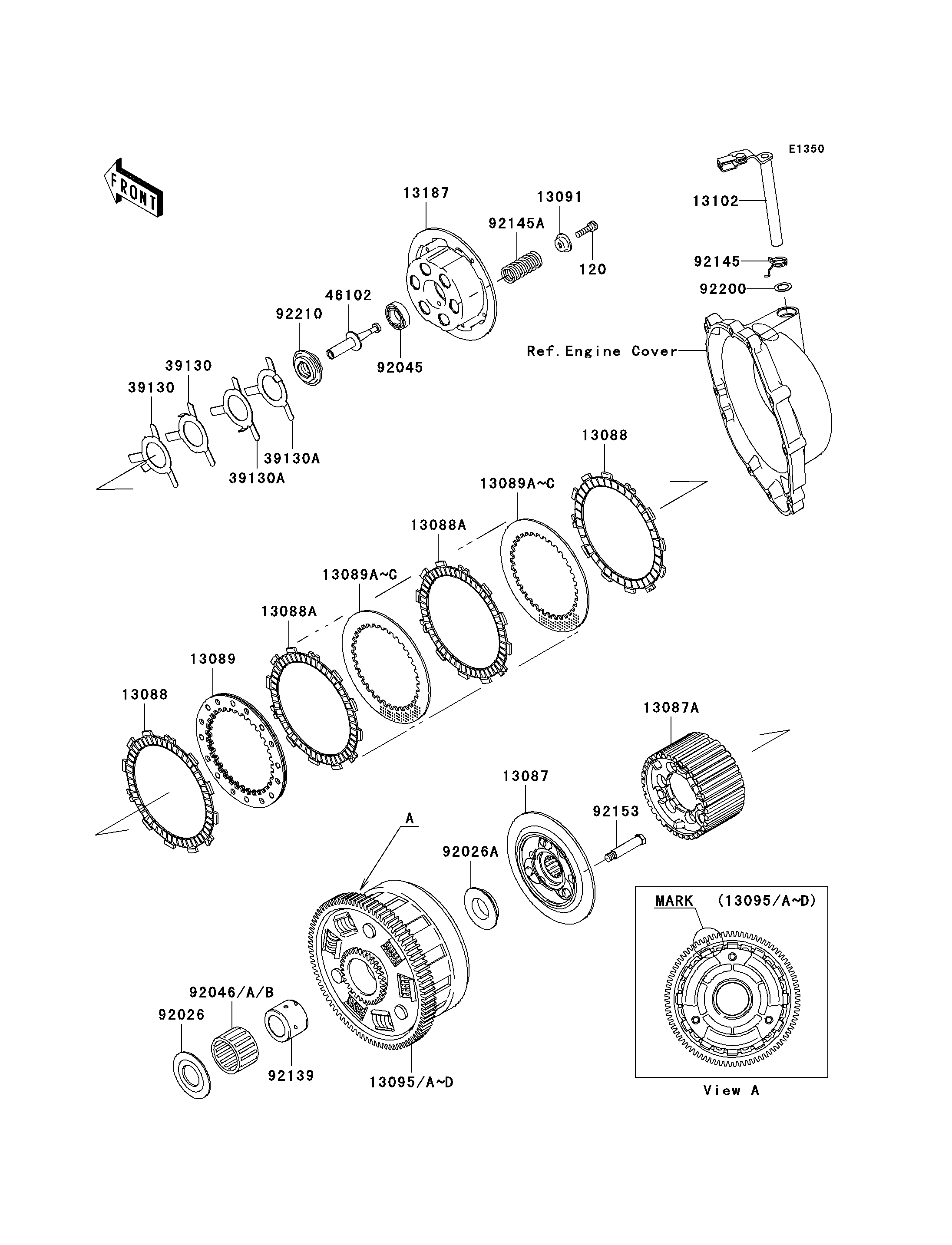

Parts Diagrams |
120
13087
13087A
13088
13088
13088A
13088A
13089
13089A
13089A
13089B
13089B
13089C
13089C
13091
13095
13095A
13095B
13095C
13095D
13102
13187
39130
39130
39130A
39130A
46102
92026
92026A
92045
92046
92046A
92046B
92139
92145
92145A
92153
92200
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-SOCKET | 120 | 120W0620 | 6 | ||
HUB-CLUTCH | 13087 | 13087-0010 | 1 | ||
HUB-CLUTCH | 13087A | 13087-0011 | 1 | ||
PLATE-FRICTION | 13088 | 13088-0003 | 2 | ||
PLATE-FRICTION | 13088A | 13088-0013 | 8 | ||
PLATE-CLUTCH | 13089 | 13089-0003 | 1 | ||
PLATE-CLUTCH,T=2.3 | 13089A | 13089-1084 | AR | ||
PLATE-CLUTCH | 13089B | 13089-1093 | AR | ||
PLATE-CLUTCH,T=2.6 | 13089C | 13089-1115 | 8 | ||
HOLDER,CLUTCH SPRING | 13091 | 13091-1041 | 6 | ||
HOUSING-COMP-CLUTCH,"A" MARK | 13095 | 13095-0031 | AR | ||
HOUSING-COMP-CLUTCH,"B" MARK | 13095A | 13095-0032 | AR | ||
HOUSING-COMP-CLUTCH,NO MARK | 13095B | 13095-0033 | AR | ||
HOUSING-COMP-CLUTCH,"C" MARK | 13095C | 13095-0034 | AR | ||
HOUSING-COMP-CLUTCH,"D" MARK | 13095D | 13095-0035 | AR | ||
RELEASE-COMP-CLUTCH | 13102 | 13102-0012 | 1 | ||
PLATE-CLUTCH OPERATING | 13187 | 13187-0006 | 1 | ||
SPRING-LEAF | 39130 | 39130-1078 | 2 | ||
SPRING-LEAF | 39130A | 39130-1079 | 2 | ||
ROD | 46102 | 46102-0047 | 1 | ||
SPACER | 92026 | 92026-0029 | 1 | ||
SPACER | 92026A | 92026-0037 | 1 | ||
BEARING-BALL,6903/2A | 92045 | 92045-1053 | 1 | ||
BEARING-NEEDLE,CLUTCH,"1" | 92046 | 92046-0010 | AR | ||
BEARING-NEEDLE,CLUTCH,"2" | 92046A | 92046-0011 | 1 | ||
BEARING-NEEDLE,K38X43X28.8X | 92046B | 92046-1263 | AR | ||
BUSHING,25X38X29.05 | 92139 | 92139-0067 | 1 | ||
SPRING | 92145 | 92145-0194 | 1 | ||
SPRING,CLUTCH | 92145A | 92145-0220 | 6 | ||
BOLT | 92153 | 92153-0553 | 6 | ||
WASHER,12X18.5X0.5 | 92200 | 92200-1487 | 1 | ||
NUT | 92210 | 92210-0152 | 1 |
