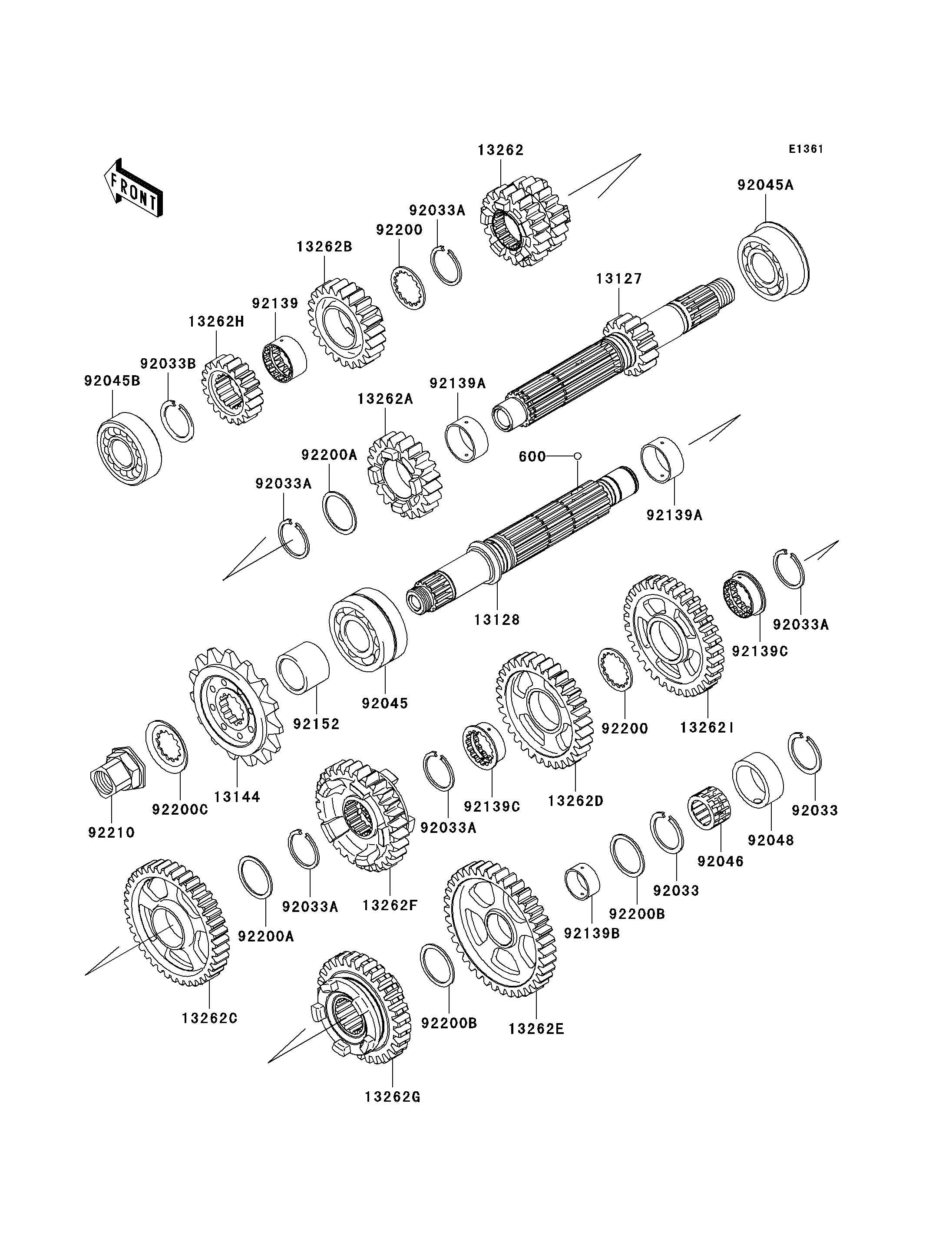

2005 Ninja® ZX™-10R - Transmission

DOWNLOAD PDF
SELECT A NEW PART
600
13127
13128
13144
13262
13262A
13262B
13262C
13262D
13262E
13262F
13262G
13262H
13262I
92033
92033
92033A
92033A
92033A
92033A
92033A
92033B
92045
92045A
92045B
92046
92048
92139
92139A
92139A
92139B
92139C
92139C
92152
92200
92200
92200A
92200A
92200B
92200B
92200C
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BALL-STEEL,5/32" 600 600A0500 3
SHAFT-TRANSMISSION INPUT,15T 13127 13127-0027 1
SHAFT-TRANSMISSION OUTPUT,13T 13128 13128-0019 1
SPROCKET-OUTPUT,17T,#525 13144 13144-0004 1
GEAR,INPUT 3RD&4TH,19T&21T 13262 13262-0134 1
GEAR,INPUT 5TH,21T 13262A 13262-0135 1
GEAR,INPUT 6TH,23T 13262B 13262-0136 1
GEAR,OUTPUT 2ND,39T 13262C 13262-0152 1
GEAR,OUTPUT 4TH,32T 13262D 13262-0166 1
GEAR,OUTPUT LOW,38T 13262E 13262-0170 1
GEAR,OUTPUT 6TH,30T 13262F 13262-0171 1
GEAR,OUTPUT 5TH,29T 13262G 13262-0183 1
GEAR,INPUT 2ND,19T 13262H 13262-0185 1
GEAR,OUTPUT 3RD,33T 13262I 13262-0218 1
RING-SNAP,20X25.5X1.2 92033 92033-025 2
RING-SNAP,25.9X30.6X1.2 92033A 92033-1037 5
RING-SNAP,T=1.5 92033B 92033-1249 1
BEARING-BALL,DAC2557NSSH 92045 92045-0003 1
BEARING-BALL,5205N6RSH2CS6 92045A 92045-0014 1
BEARING-BALL,DG2152SH2C3 92045B 92045-0015 1
BEARING-NEEDLE 92046 92046-1291 1
RACE,30X38X15 92048 92048-1053 1
BUSHING,GEAR,6TH IN 92139 92139-0036 1
BUSHING,GEAR,5TH IN&2ND OUT 92139A 92139-0037 2
BUSHING,GEAR,LOW OUT 92139B 92139-0038 1
BUSHING,GEAR,3RD&4TH OUT 92139C 92139-0066 2
COLLAR 92152 92152-0153 1
WASHER,28.3X34.0X1.6 92200 92200-0050 2
WASHER,28.1X34.0X1.2 92200A 92200-0051 2
WASHER 92200B 92200-0138 2
WASHER 92200C 92200-1065 1
NUT,SPROCKET 92210 92210-1098 1
