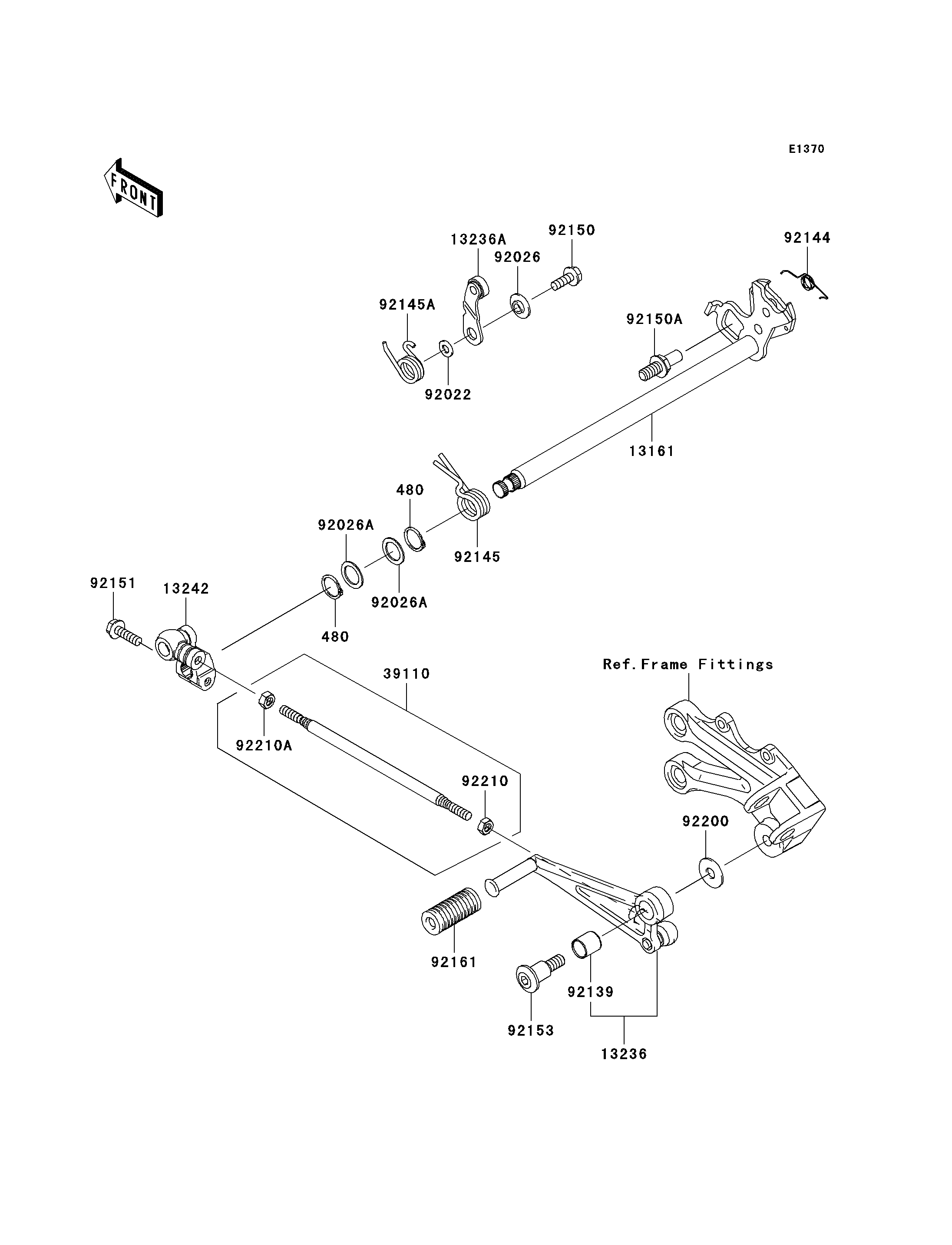

2005 Ninja® ZX™-10R - Gear Change Mechanism
480
480
13161
13236
13236A
13242
39110
92022
92026
92026A
92026A
92139
92144
92145
92145A
92150
92150A
92151
92153
92161
92200
92210
92210A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CIRCLIP-TYPE-C,14MM | 480 | 480J1400 | 2 | ||
LEVER-COMP-CHANGE SHAFT | 13161 | 13161-0028 | 1 | ||
LEVER-COMP,CHANGE PEDAL | 13236 | 13236-0063 | 1 | ||
LEVER-COMP,POSITION | 13236A | 13236-0084 | 1 | ||
LEVER-ASSY-CHANGE | 13242 | 13242-0016 | 1 | ||
ROD-ASSY-TIE | 39110 | 39110-1131 | 1 | ||
WASHER,6X12.8X1.2 | 92022 | 92022-1827 | 1 | ||
SPACER | 92026 | 92026-1217 | 1 | ||
SPACER,14X20X1.0 | 92026A | 92026-1534 | 2 | ||
BUSHING | 92139 | 92139-0023 | 1 | ||
SPRING | 92144 | 92144-1029 | 1 | ||
SPRING | 92145 | 92145-0287 | 1 | ||
SPRING | 92145A | 92145-0288 | 1 | ||
BOLT,6X16 | 92150 | 92150-1394 | 1 | ||
BOLT,RETURN SPRING | 92150A | 92150-1869 | 1 | ||
BOLT,6X20 | 92151 | 92151-1226 | 1 | ||
BOLT,8X32 | 92153 | 92153-0446 | 1 | ||
DAMPER,CHANGE LEVER | 92161 | 92161-1300 | 1 | ||
WASHER,8.0X22.0X1.5 | 92200 | 92200-0174 | 1 | ||
NUT,6MM | 92210 | 92210-1100 | 1 | ||
NUT,LEFT HANDED,6MM | 92210A | 92210-1101 | 1 |
CIRCLIP-TYPE-C,14MM | |
REF # | 480 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
LEVER-COMP-CHANGE SHAFT | |
REF # | 13161 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-COMP,CHANGE PEDAL | |
REF # | 13236 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-COMP,POSITION | |
REF # | 13236A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-ASSY-CHANGE | |
REF # | 13242 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD-ASSY-TIE | |
REF # | 39110 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,6X12.8X1.2 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPACER | |
REF # | 92026 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPACER,14X20X1.0 | |
REF # | 92026A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BUSHING | |
REF # | 92139 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 92144 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 92145 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 92145A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X16 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,RETURN SPRING | |
REF # | 92150A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X20 | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,8X32 | |
REF # | 92153 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER,CHANGE LEVER | |
REF # | 92161 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,8.0X22.0X1.5 | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,6MM | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,LEFT HANDED,6MM | |
REF # | 92210A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
